Product Details:
|
| Name: | LJTB01 Butty Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 10~140℃ | Aluminum Spacer Width: | 4-30mm |
| Speed: | 0-47m/min | Diameter Of Butyl Cylinder: | 200mm |
| Air Supply: | 0.4m³/min | Air Pressure: | ≥0.6MPa |
| High Light: | Insulating Glass Butyl Extruder Machine,18MPa Butyl Extruder Machine,Sealing Tape Coating Machine |
||

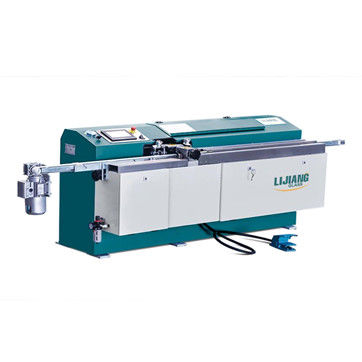

Insulating glass butyl extruder machine Butyl rubber sealing tape coating machine Automatic Hot Melt Butyl Coating Machi
Application of extrusion coating machine
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly
with hot melt butyl. LJTB01 butyl extruder machine use large electrical control panel which makes
the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the
speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. LJTB01 butyl
extruder machine is very popular with energy-saving. Its squeezing system adopts pneumatic and
hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing

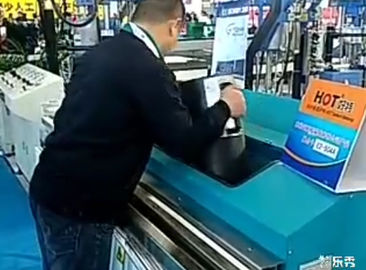

cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the
life of squeezing system and set the heating time in 24 hours with electricity and air pressure.
The distance of squeezing head can be adjusted automatically according to different aluminum
spacer. The LJTB01 butyl extruder machine has reached the worldwide technology with the
characteristic of complete function and stable working mode.
Technical Data of electrical control panel
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600*680*1100mm(L*W*H) |
| Weight | 650kg |
Main components of china pneumatic
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |

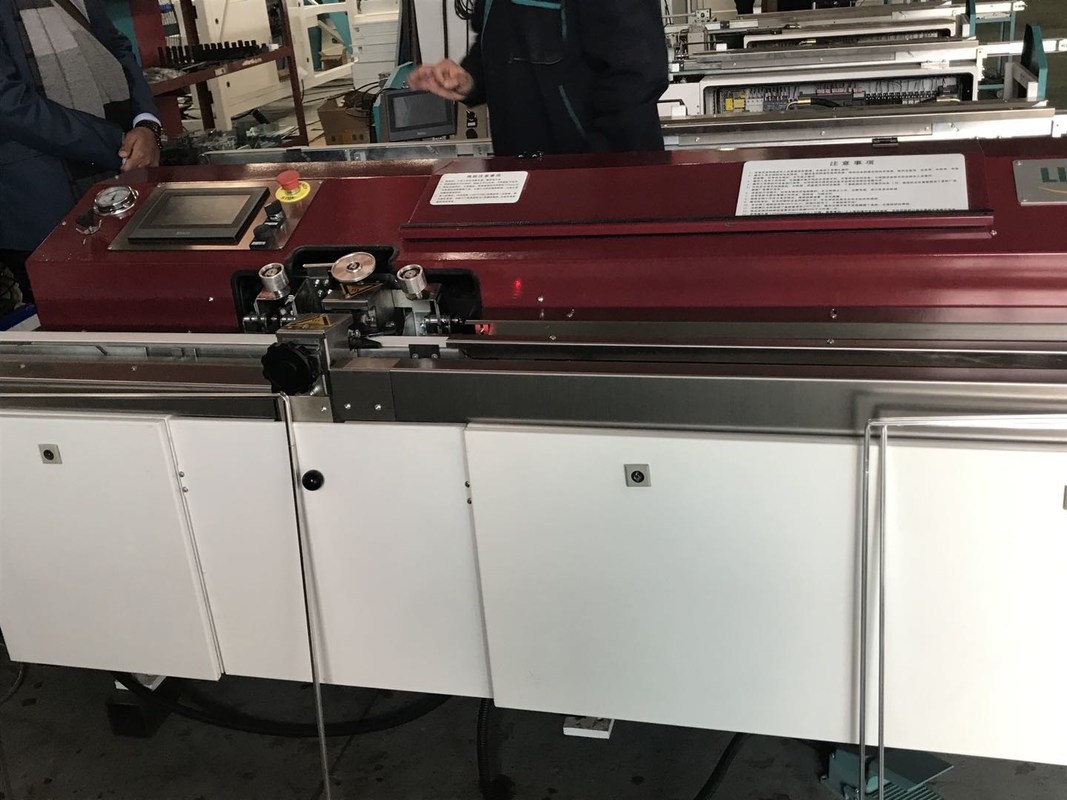

Other features of extruder head
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for
guiding customer
to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
