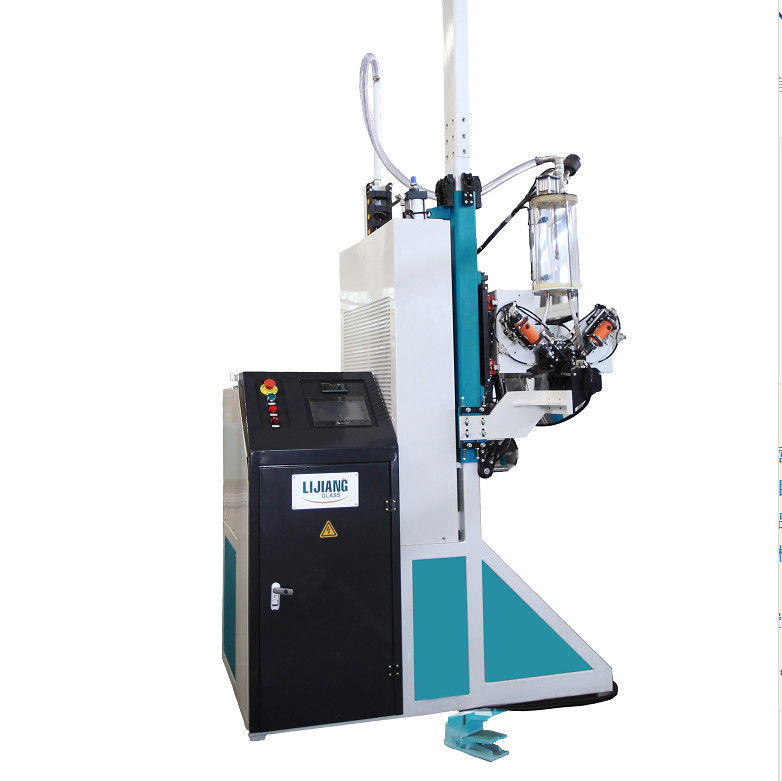

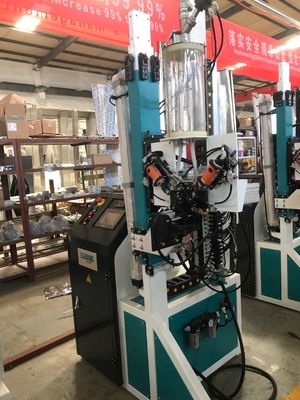

PLC control 2500*2500mm Desiccant Filler For Double Glazing

PLC control 2500*2500mm Desiccant Filler For Double Glazing
PLC control 2500*2500mm Desiccant Filler For Double Glazing
PLC control 2500*2500mm Desiccant Filler For Double Glazing PLC control 2500*2500mm Desiccant Filler For Double Glazing PLC control 2500*2500mm Desiccant Filler For Double Glazing PLC control 2500*2500mm Desiccant Filler For Double Glazing PLC control 2500*2500mm Desiccant Filler For Double Glazing PLC control 2500*2500mm Desiccant Filler For Double Glazing

Large Image :  PLC control 2500*2500mm Desiccant Filler For Double Glazing

Product Details:
Place of Origin: CHINA
Brand Name: Lijiang
Certification: CE UL
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: WOODEN BOX
Delivery Time: 2 DAYS
Payment Terms: L/C, T/T, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 SETS PER MONTH
Contact Now

PLC control 2500*2500mm Desiccant Filler For Double Glazing

Description
Name: Desiccant Filling Machine Max Frame Szie: 2000*2500mm
Min Frame Size: 300*150mm Aluminum Size: 6A-27A
Air Source: 0.65MPA Total Power: 1kw
Molecular Sieve Diameter: 1.5-2mm Machine Size: 1300*1100*3600mm
PLC: Germany Simens
High Light:

2500*2500mm Desiccant Filler

,

PLC Control Desiccant Filler

,

PLC Control Desiccant Filling Machine

2500*2500MM DESICCANT FILLING MACHINE FOR DOUBLE GLAZING



APPLICATION



  • Rectangle frame can be filled.
  • Arc aluminum spacer frame can be filled (OPTIONAL FUNCTION)
  • Germany Siemens PLC control system

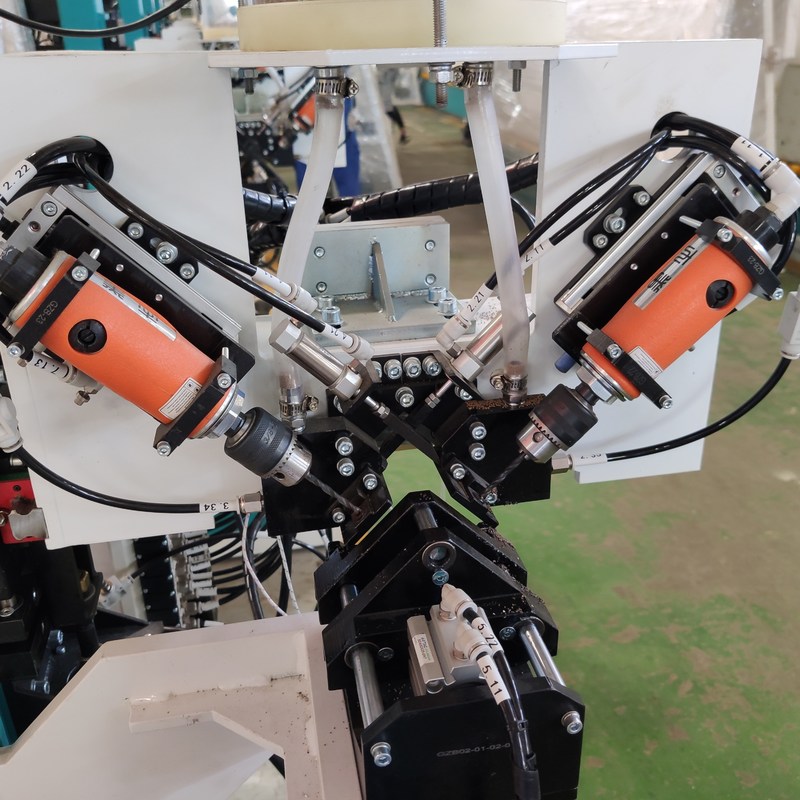

  • Auto drilling, filling and sealing , easy and simple operation.
  • The mechanical height & Filling time can be adjusted according to the spacer frame size
  • Molecular automatically loading and replenish .
  • Easy and safe for adding glue.
  • Protection device for machine head
  • Touching screen interface, simple and visible
  • All spare parts & electrical wires have ID Number for offering the convenience in after sales service

OPTIONAL FUNCTION

  • Big bucket desiccant 200L,save desiccant refill time ,improve the work efficiency
  • Adopt vacuum pump loading device ,increase the loading speed

LJGJ03 Molecular sieve filling machine



1.Can effectively fill desiccant and keep dry

2.Manually filling desiccant into spacer frame

3.The desiccant can be recyclable

4.Easy operating, simple and flexible



Main technical parameter

Power supply 220V 50Hz
Total power 1kw
Dimension 2490*400*2200mm



Main technical parameter



Filling aluminum frame’s maximum size 2000mm*2000mm
Filling aluminum frame’s minimal size 300mm*250mm
Article aluminum specifications 5.5-24mm
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1KW
Molecular sieve diameter needed 0.5-0.9mm
Dimension 1300mm*1100mm*3650mm






Name Brand
PLC German SIEMENS
Low voltage electrical apparatus German SIEMENS
sensor Korea AUTONICS
guide Taiwan TBI
triplet TAIWAN AIRTAC
Solenoid valve TAIWAN AIRTAC
Gas driller Taiwan BOA
Switch power Taiwan TEND
