Product Details:
|
| Name: | Butyl Extruder Machine | Aluminum Spacer Width: | 6A-27A |
|---|---|---|---|
| Coating Pressure: | 10-18mpa | Coating Temperature: | 110-140 ° |
| Total Power: | 5.7kw | Machine Size: | 2800*700*900mm |
| Coating Speed: | 0-47m/min | Butyl Plug Weight: | 7kg |
| High Light: | 47m/Min Butyl Extruder Machine,27A Butyl Extruder Machine,47m/Min hot melt butyl machine |
||
Insulating glass machines 47m/Min Butyl Extruder Machine Butyl Silicone Sealant
APPLICATION

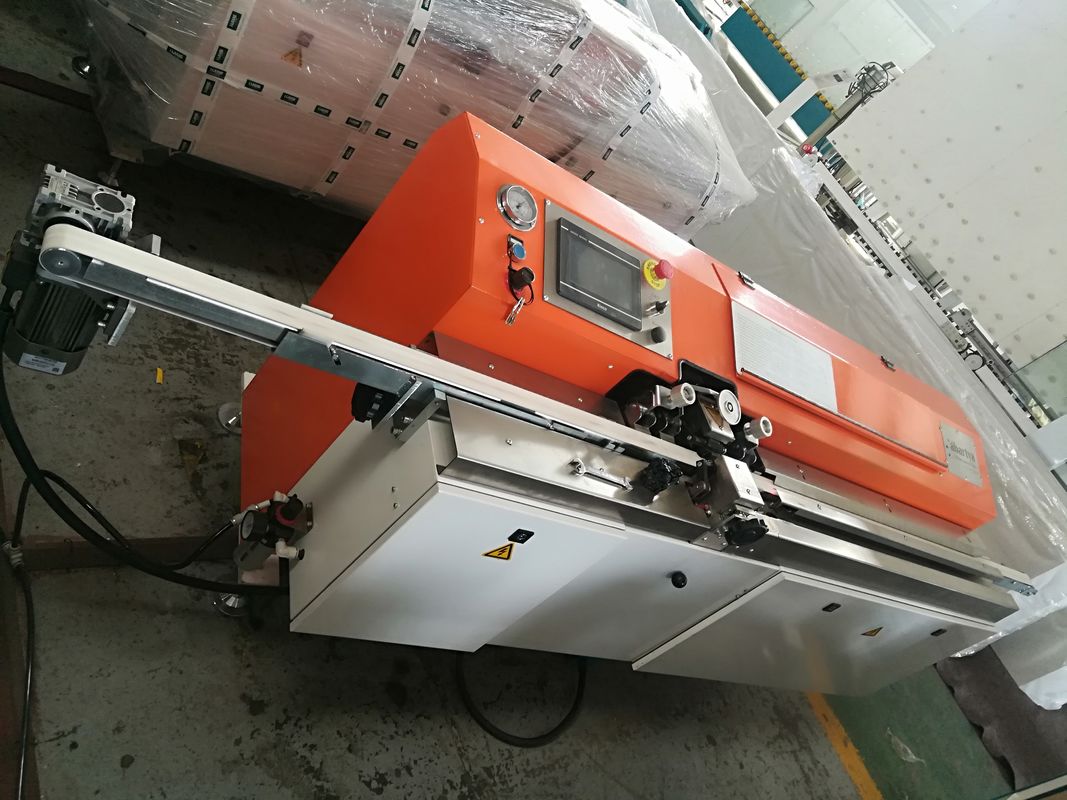

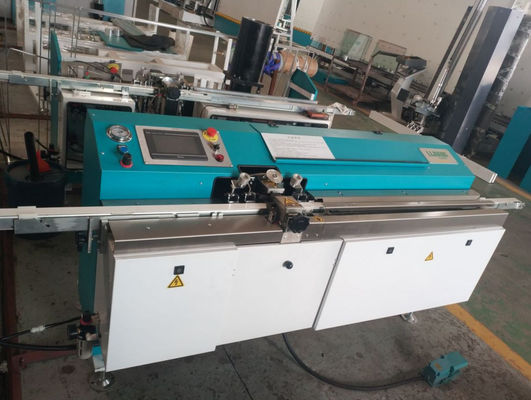

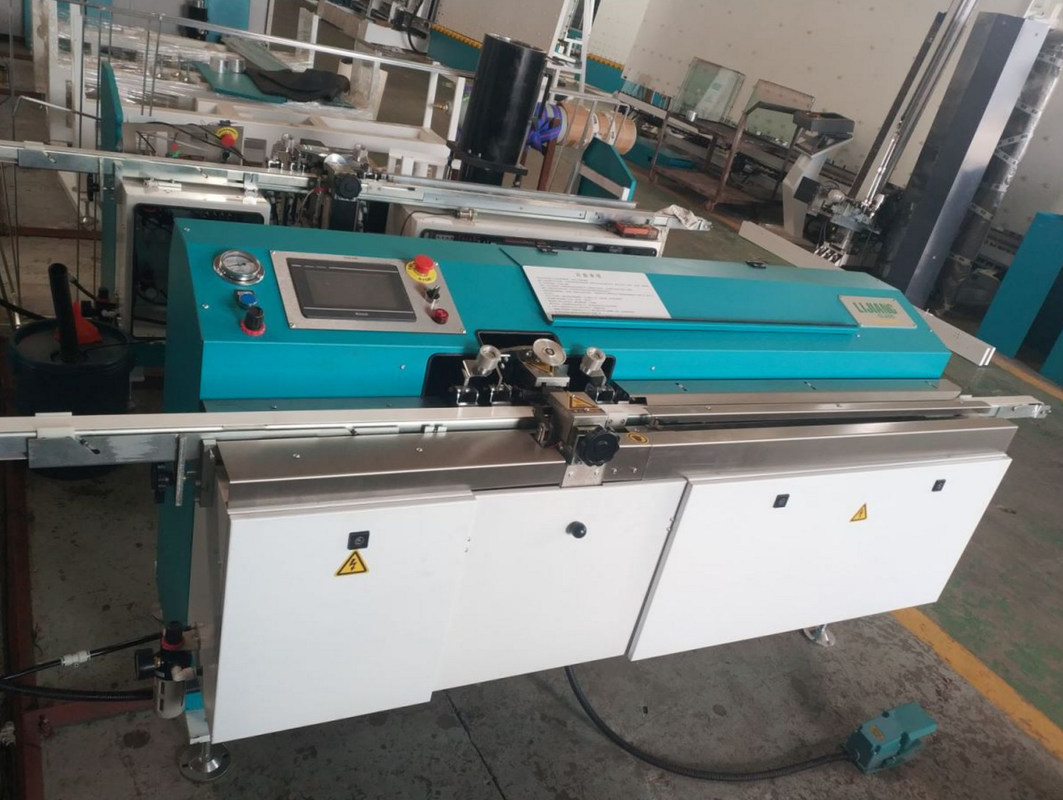

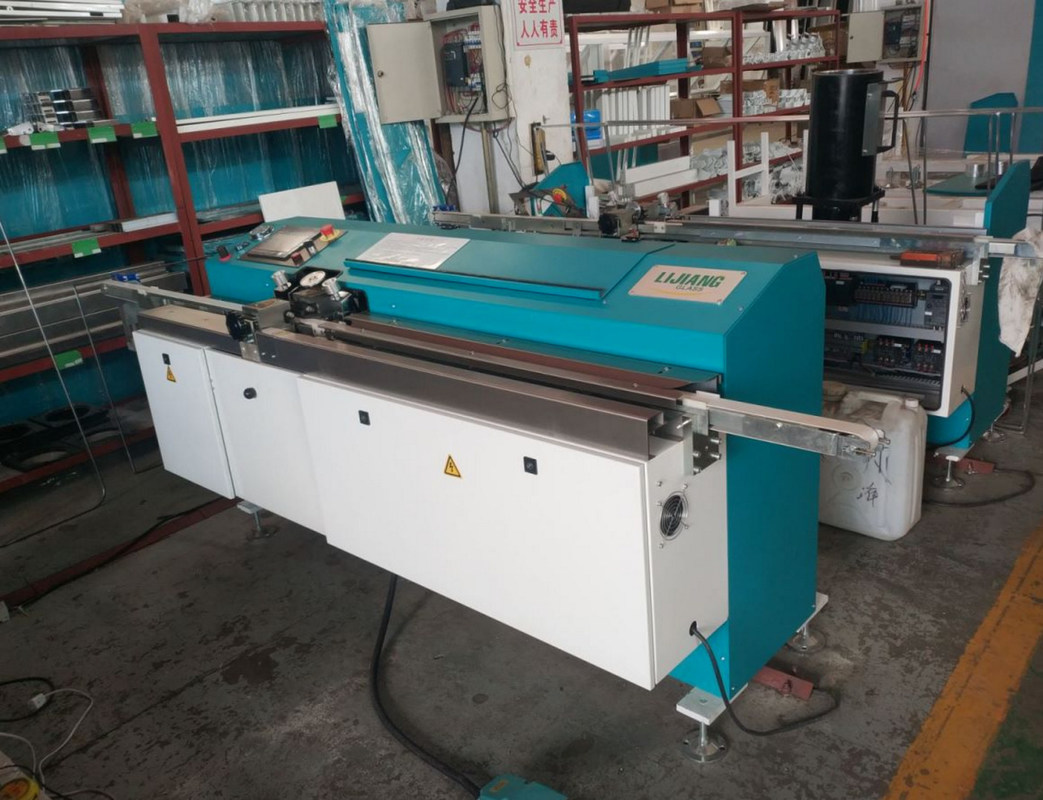

LJTB01 butyl extruder machine is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly. The use of large electrical control panel makes the operation easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min. The squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The machine is energy-saving. The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier. The system can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
Main feature
Touch-screen operation which makes the machine simple and practical
Rectangle & arc frame , decorative aluminum fram can be coat
Auto-measure the width of spacer, auto-adjust the distance of nozzle
Auto-centering and auto clamping
The wheel material is Teflon brand ,non-stick coating, non-adhesive belt
The crossbeam height is easy to adjust,we can control the height of butyl
Nuzzle height can be adjust, solve the gap between spacer and butyl
The coating speed is up to 47m/min,save butyl is up to 30％
(double side standard is 7-8g, our machine can do 4g thickness is 1-1.5mm ,width 3mm)
Glue output and height is same level.
Alarm device when use out of butyl
Pre-heating function,set up a regular time before .
Glue cylinder stands upside,easy to change glue
Germany HAWEI brand pressure can up to 25MPa,The pressure is stable that can make the glue was coating evenly
The front roller and the back roller are used for rectangular frame, the Arc roller is used for circular frame.
Electrical components are used famous brand
Pneumatic and Hydralic supercharging pump -German Maximator brand
control the pressure of outlet oil strongly.
Pressure valve German HAWE brand with high pressure resistance, keep the butyl well proportioned
Pneumatic component -Taiwan Airtac
Relay Japan OMROM
Japan quick-opening valve make sure the both sides of nozzle open and close at the same time
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6-27A |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
² Main components
| Name | Brand |
| Pressure release Valve | German HAWE |
| Low voltage electrical apparatus | German SIEMENS |
| Hydraulic and pneumatic supercharging system | German MAXIMATOR |
| Quick exhaust valve/Vacuum generator | Japan SMC |
| Pneumatic components(cylinder/valve) | Taiwan ARTAC |
| Travel light | Japan OMRON |
| Relay | Japan OMRON |
| Optical fiber | Japan OMRON |
| PLC | KINCO |
| Frequency converter | KINCO |
National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America,
Mexico glass expo .Big Five In Dubai, Egpyt.
Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.
Service Team:
We have our own china domestic team and oversea service team .
Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers ,
two of them from india and others from south America and midle east.
24 hours online service and local engineer available , guarantee customers got timely service and solution .
