Product Details:
|
| Certification: | CE | Production Name: | Automatic Molecular Sieve Filling Machine |
|---|---|---|---|
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| Aluminum Specifications: | 6-27A | Faction: | Aluminum Spacer Drilling,filling And Sealing |
| Application: | Insulating Glass Processing | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm | Optional: | Big Barrel |
| High Light: | 0.9mm Molecular Sieve Filling Machine,Auto Molecular Sieve Filling Machine,0.9mm Molecular Sieve filler |
||
Automatic Desiccant Filling Machine Adopt Siemens PLC servo control system with stable performance,it can Automatically measure glass size, glue depth and glue speed with linear adjustment, coating glass with silicone,glass corners are full without air bubbles, smooth surface.
Features of Automatic Desiccant Filling Machine
•Touch screen interface, simple and visible
•Adopt Siemens PLC control system automatic desiccant filling machine
Technical parameter of Automatic Desiccant filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |

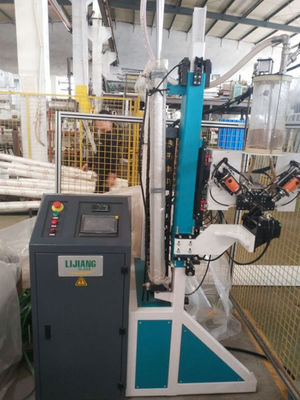

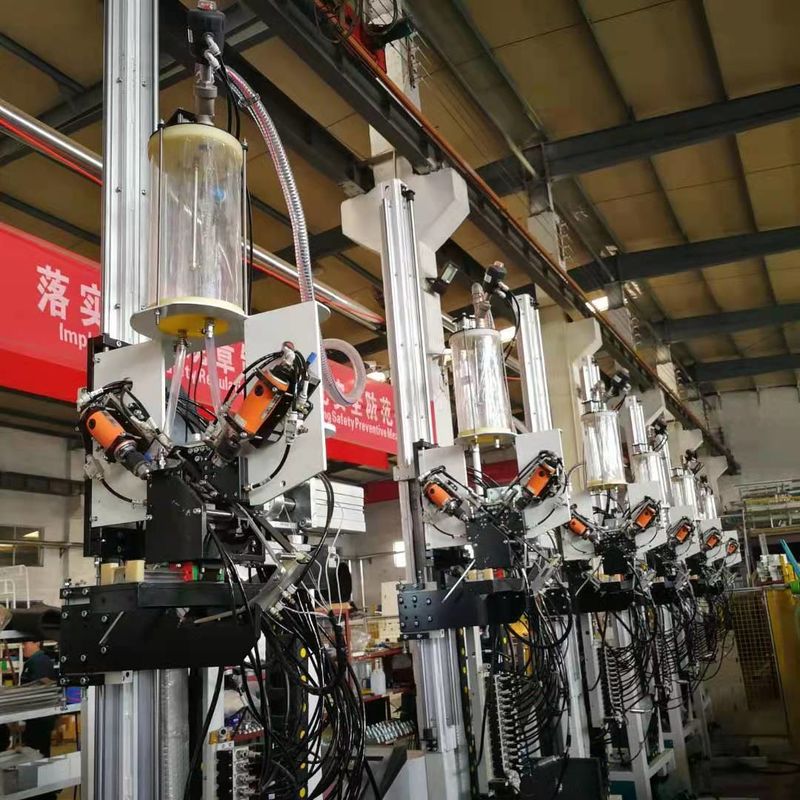

Product overview of Double Glass Molecular Sieve Filling Machine
1.Desiccant filling machine height can be adjusted according to the size of spacer frame
2.Electrical component are all Germany Brand-Siemens.
•Adopt Siemens PLC control system automatic desiccant filling machine
3.Auto drilling, filling and sealing function,Molecular sieve can be 0.5 -0.9mm or 1.0 -1.5mm sizes
4.Molecular sieve filling machine have Protection device for machine head.
5.Desiccant automatically loading from the Materials bucket.
6.All the electrical wires have the ID number,it can match with specification , So it will be very easy for the further communication in the after sales service .
Related products
Automatic Smart Vertical Edge Deleting Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
