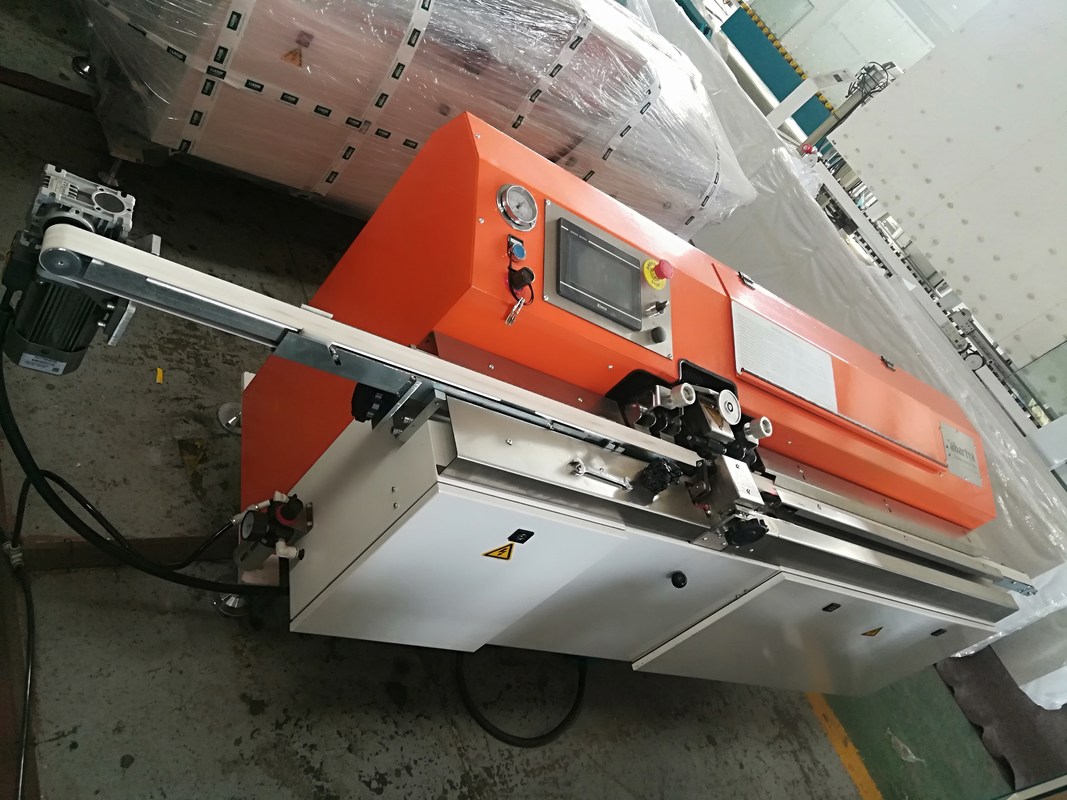

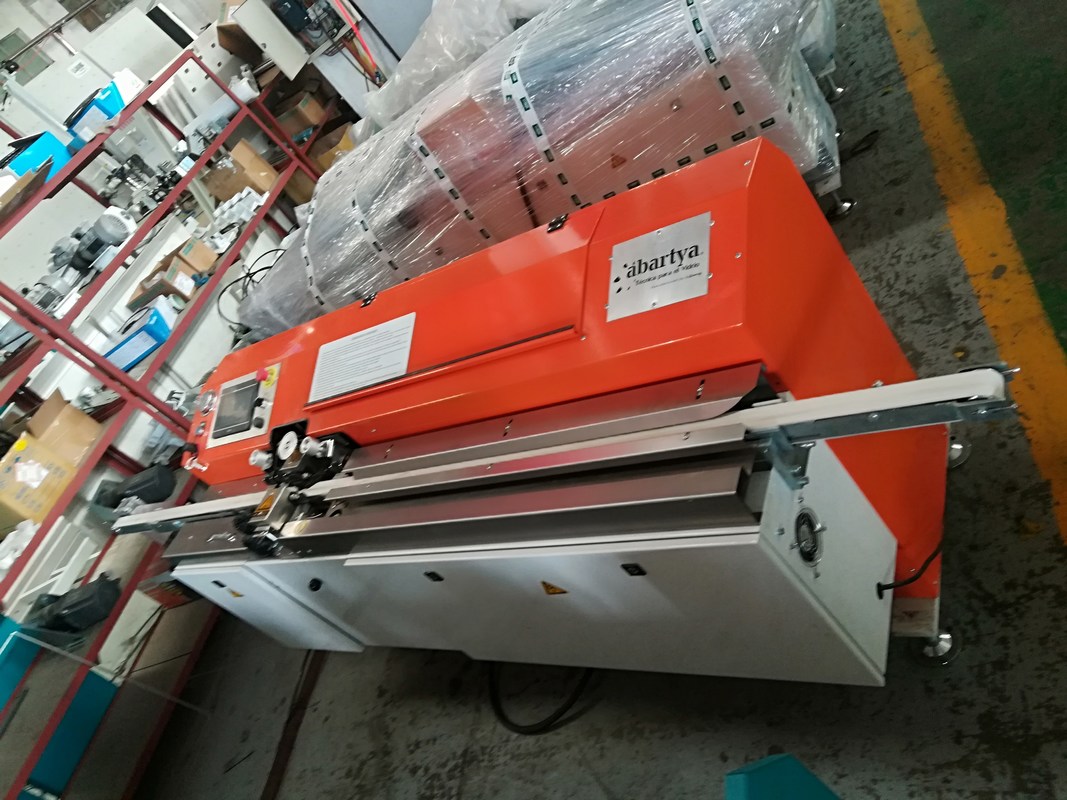

Double Glazing Machine butyl extruder insulating glass machine for double glazing glass units

Production overview of butyl extruder insulating glass machine

Butyl extruder insulating glass machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The operation of the butyl extruder machine is more easier than before,it uses large electrical control panel . The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min. Butyl extruder machine LJTB01 is a special equipment for the production of making double glazing glass. As one of the important equipment of producing double glazing glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.

Tech parameters of High speed butyl extruder machine

Main feature of butyl coating machine

1. Touch screen operation, simple and easy operating,Stable performance

2. The hydraulic system imported from Germany is adopted to ensure even and full glue delivery

3.Unique design structure, with automatic exhaust function, to ensure continuous glue application

4. The rubber cylinder adopts pull-up structure, which is convenient for operation

5. Automatically adjust the glue output according to the speed change

6. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently

7. Glue application speed can reach 47m / min

8. Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning

9. The main accessories are German brands. PLC program control, stable performance

10. It is convenient and practical to use movable vertical and horizontal sealant

11. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m

12.Automatically adjust the width of glue head, and the integrated control of quick opening valve ensures the consistency of double-sided gluing

Machine details of Aluminum spacer butyl coating machine

Adopt Germany Siemens brand, stable performance.

Glue cylinder

Adopt the upright structure, easy to change butyl.

KINCO Touch Screen

Clear interface, Simple operation, Smart touch screen,Updated programming.

Alarm system

Automatically alarm system, reminding adding butyl.

Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

Germany Maximator Cylinder

The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

Guiding Wheel

Using guiding wheel to help arc frames coating.

Optional functions of butyl coating machine:

200L glue cylinder is optional

Detail picture
