Product Details:
|
| Certification: | CE | Production Name: | Automatical Molecular Sieve Filling Machine |
|---|---|---|---|
| Faction: | Automatically Drilling,filling And Sealing | Application: | Double Glazing Glass Making |
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm |
| Optional: | Big Barrel | Condition: | New |
| High Light: | 2000mm*2000mm Desiccant Filling Machine,Liquid Desiccant Filling Machine,2000mm*2000mm automatic liquid filling machine |
||
The automatic filling machine uses the Japanese Yaskawa servo control system with stable performance, and can automatically adjust the glass size, bonding depth, and bonding speed to make linear adjustments. Silicon-coated glass is complete and bubble-free. The corners of the glass and the surface are smooth.
Advantage of Simens PLC control molecular sieve filling machine
Adopt Siemens PLC control system, automatic desiccant filling machine.
Simple and visible touch screen
• The height of the machine can be adjusted according to the size of the spacer frame.
Automatic loading and filling of molecular sieve
Double tubes for loading and unloading to speed up packing.
Packing time can be adjusted.
Automatically punching, filling and sealing
The molecular sieve is 0.5 -0.9mm or 1.0 -1.5mm.
The main parts are imported brands.
Using a large plastic bucket, saving feeding time and improving efficiency. (Optional)
Machine head protection device (Optional) • Filling frame (Optional)
Fill a large particle molecular sieve

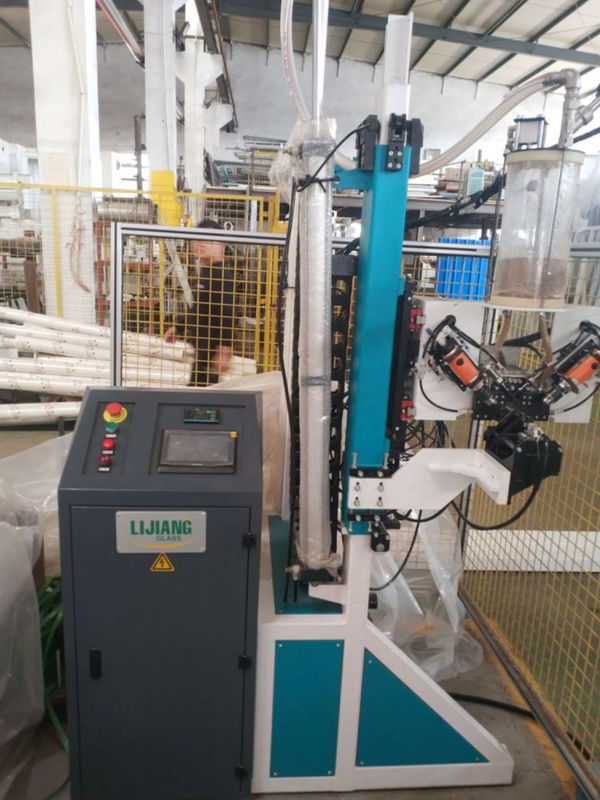

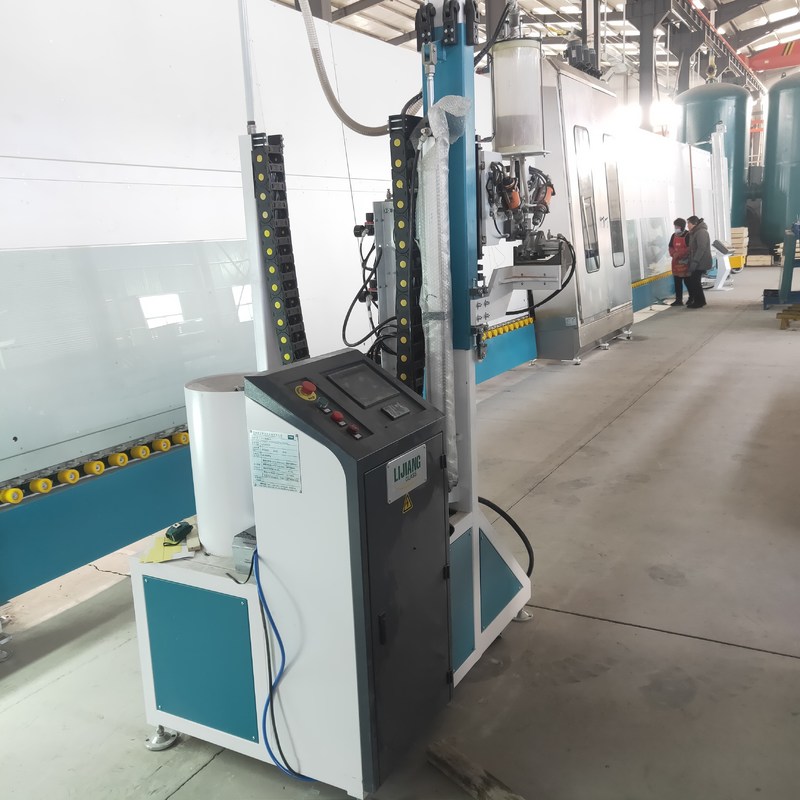

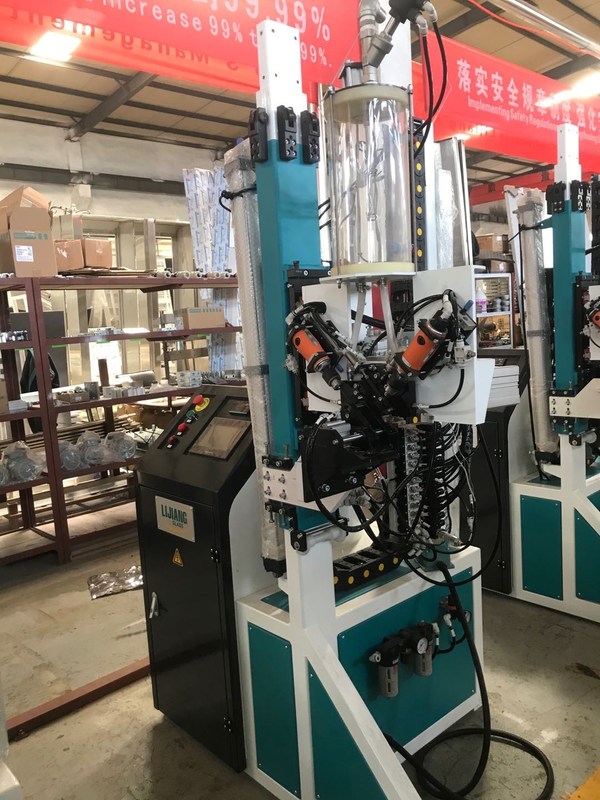

Details of Automatic Desiccant Filling Machine
1.Auto drilling, filling and sealing function
2.Electrical component are all Germany Brand-Siemens.
3. Protection device for machine head.
4.Machine height can be adjusted according to the size of spacer frame
5.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
6.Desiccant automatically loading from the Materials bucket.
Technical parameter of Aluminum Spacer Molecular sieve filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
