Product Details:
|
| Product Name: | Butyl Extrusion Coating Machine | Application: | Making Double Glazing Glass Products Machine |
|---|---|---|---|
| Warranty: | 1 Year | Heating Time: | 15 Mins |
| Voltage: | 380V 50Hz 3P | Squeeze Pressure: | 10-18MPa |
| Glue Thickness: | 0.3-0.5mm | Glue Width: | 3.5mm |
| High Light: | 18MPa Hot Melt Glue Machine,Insulating Glass Hot Melt Glue Machine,18MPa Silicone Extruder Machine |
||

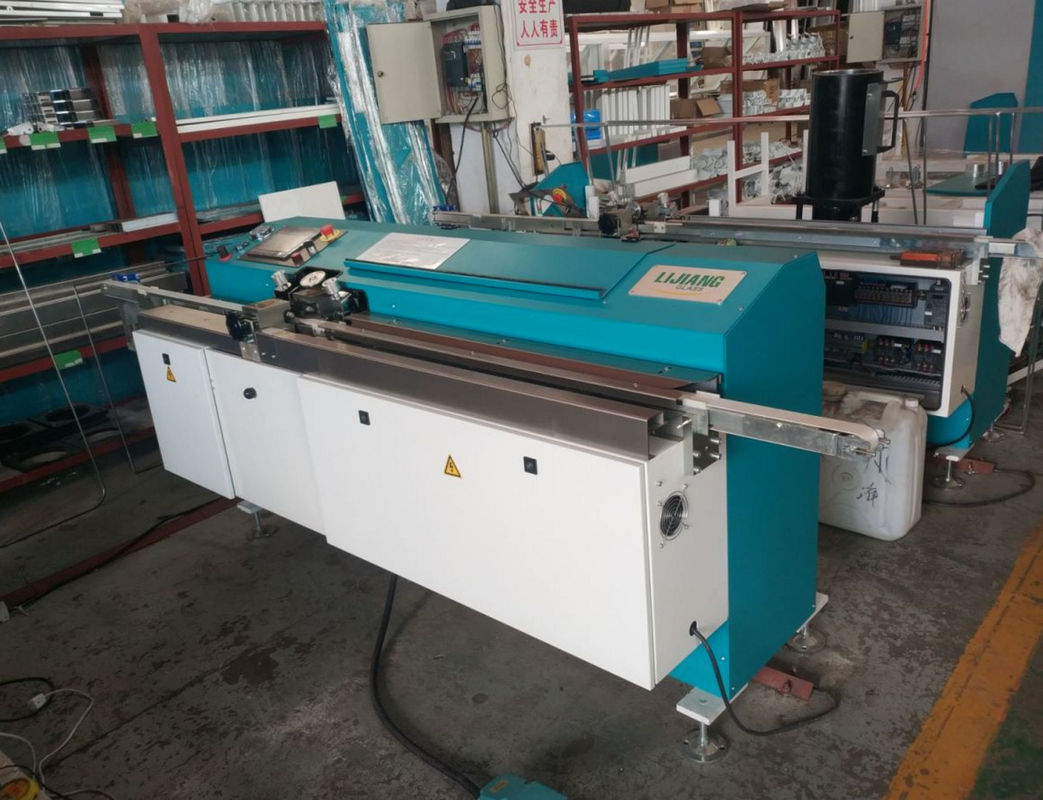

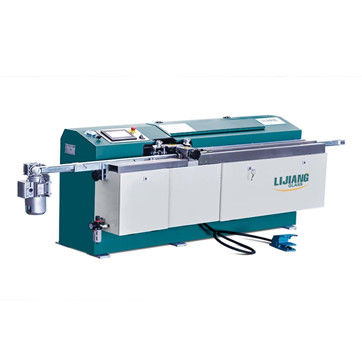

Overview of butyl extrusion coating machine
Butyl extruder is used for spreading aluminum divider frames evenly with hot melt butyl. The operation of the butyl extruder is simplified by the large electrical control panel. An aluminum conveyor belt is controlled by a frequency converter. The speed can be adjusted from 0m / min to 47m / min. LJTB01 butyl extruder is special equipment for double glazing production. As one of the important equipment in insulating glass production, the effect of butyl adhesive is directly related to insulating glass sealing. The equipment is automatic, easy, and convenient to use.
The main feature of the butyl machine
1. The touch screen operation is simple and practical.
2.Hydraulic system imported from Germany is adopted to ensure consistent delivery of glue.
3.The rubber barrel uses a pull-up structure, which is convenient to use.
4.Automatically adjust glue output according to speed changes.
5.It is convenient to adjust the height of the cross beams and solve the white problem efficiently and conveniently.
6.The speed of using glue can reach 47m / min.
7.Unique design structure with automatic exhaust function to ensure continuous use of glue.
8. Adopt a non-adhesive synchronous belt and no need to use talcum powder for cleaning.
9.The main accessories are German brands. PLC program control, stable performance.
10.It is very convenient and practical to use movable vertical and horizontal sealant.
11.Automatically adjust glue head width and integrated quick open valve control ensures the consistency of double-sided gluing.
12.It can save glue consumption compared with common butyl rubber making machine, and gluing can reach 7g / m.
Tech parameters of automatic butyl extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Equipment details of glue coating machine
Germany Siemens parts
Adopt Siemens brand, stable performance.
KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
Alarm system
Automatically alarm system, reminding adding butyl.
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

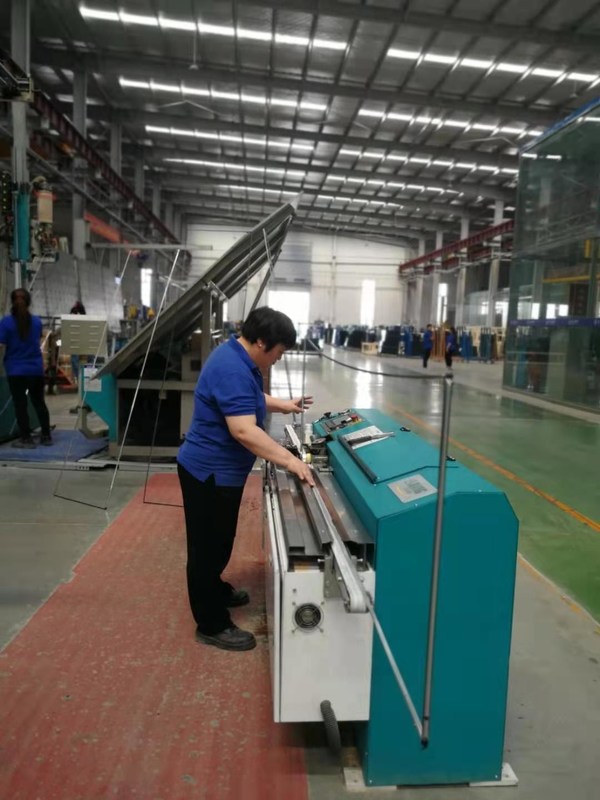

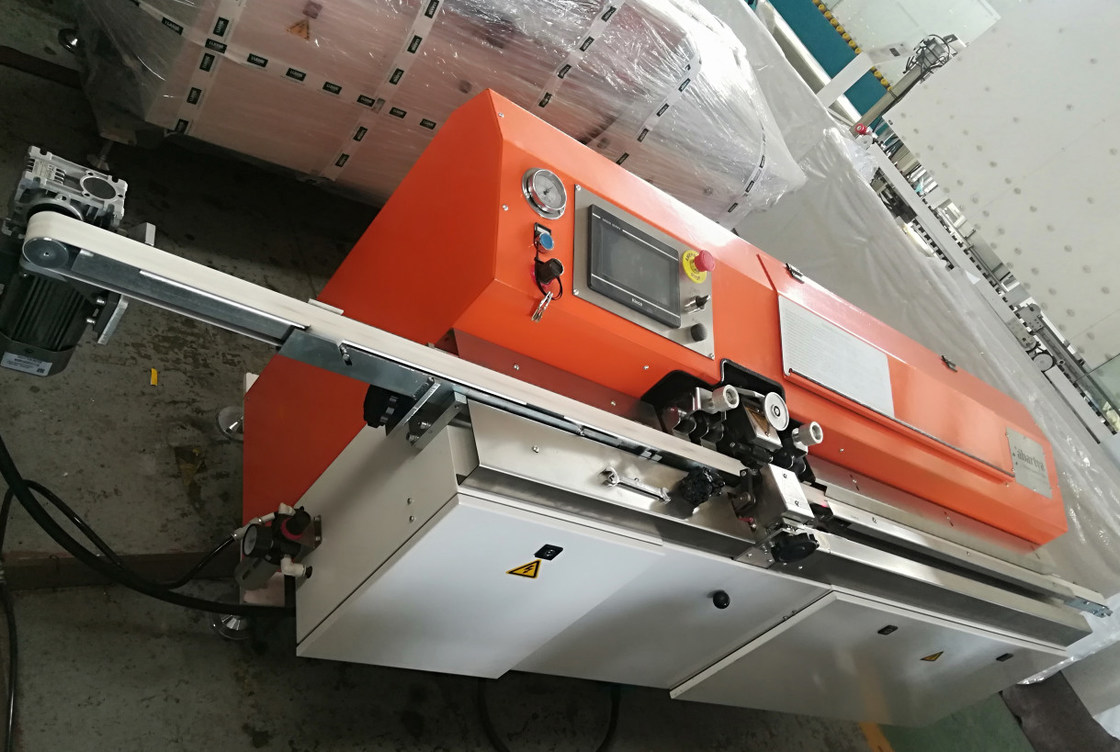

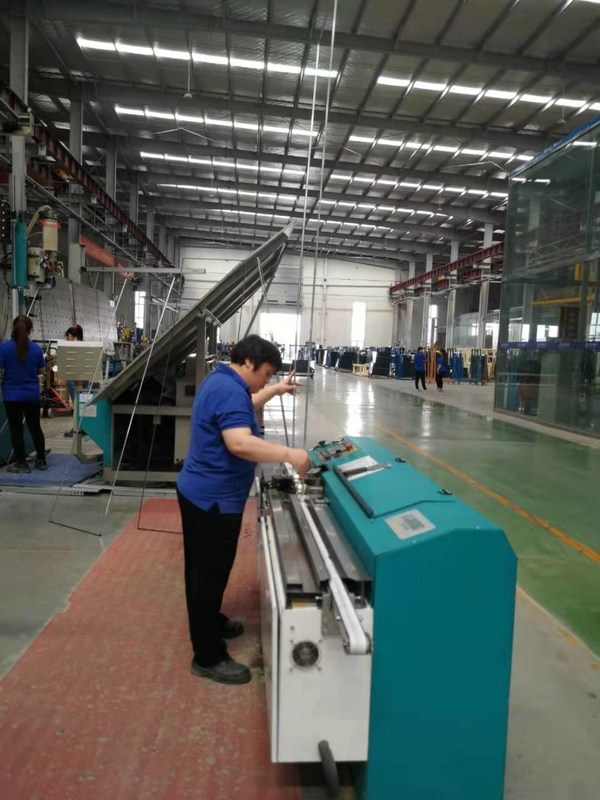

Detail picture
Optional functions of butyl coating machine:
200L glue cylinder is optional
Related Product
Vertical Loading Table
I.Mainly technical parameter:
1. Maximum loading glass size: L X W = 3500 x 2600 mm.
Minimum loading capacity of glass size: L X W = 800 x 600 mm.
Glass thickness: (3-10mm)
2. Approximate size of loading table:
Length X Width X Height = 3700mm x 2800mm x 2500mm + bottom support 530mm (± 30mm).
3. Vertical loading table adopts servo motor as drive system, and all motors with infinitely variable speed, the transfer speed of this table is 2-35m / min, cycle load time: 35S.
4.Use full closed-loop control system for accurate positioning for the machine and stable running system. Configuration description
5.The horizontal movement of the tilting arm is controlled by a precise servo motor and gear box, the gear rack drive.
6.Lifting structure: servo motor and precise gear box control and synchronous belt drive.
7.Suction cup tilting structure: servo motor and precise gear box control and crank connecting rod drive.
8. Bottom transfer structure, servo motor and precise gear box control and chain drive.
9.4-axis all-digital control with precise positioning and fast flexibility. All speeds can be
Adjustable according to the speed of the production line
10.Super HMI, check the operating status of the device and the system parameters. Data can be set according to different glass floor heights and angles, and also presets or records the current changes of production.
11.Vacuum pump system: High efficiency mono-block rotary blade-type vacuum pump
Suction cup: use imported PF type 120mm suction cup
12.5--7bar, 30L / min; Compressed air supply: 5--7bar, 30L / min;
13.Power supply: 380V, 50HZ, 3 phase, install capacity: 10KW.
