Product Details:
|
| Product Name: | Automatic Butyl Coating Machine | Application: | Aluminum Spacer Butyl Coating |
|---|---|---|---|
| Speed: | 0-47m/min | Squeeze Pressure: | 10-25MPa |
| Air Pressure: | ≥0.6MPa | Voltage: | 380V 50Hz 3P |
| Squeeze Pressure: | 10-18MPa | Glue Thickness: | 0.3-0.5mm |
| Aluminum Spacer Width: | 5.5-26.5mm | Weight: | 750KG |
| High Light: | 25MPa Glue Spreading Machine,Aluminum Spacer Glue Spreading Machine,25MPa hot glue pasting machine |
||
Overview of spacer butyl coating machine
Automatic Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The operation of the butyl extruder is more easier than before,it uses large electrical control panel . The conveyor of aluminum is controlled by frequency converter.Butyl gule extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The speed can be adjusted from 0m/min to 47m/min. The equipment is automatic one, easy to operate and convenient to use,Stable performance.
Tech parameters of high speed butyl coating machine
| Squeeze pressure | 10-25MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 5.5-26.5mm |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight7 | 50kg |
Details of High speed butyl coating machine
1.Germany Siemens parts
Adopt Siemens brand, stable performance.
2.Fast coating speed,can up to 47m/min
3.Saving glue,amount of glue on both sides can reach 7g/m
4.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
5.KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
6.Alarm system
Automatically alarm system, reminding adding butyl.
7.Unique design structure,with automatic exhaust function,to ensure continuous glue application.
8.Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
9.Glue cylinder Adopt the upright structure, easy to change butyl.
10.Short preheating time,improve work dfficiency

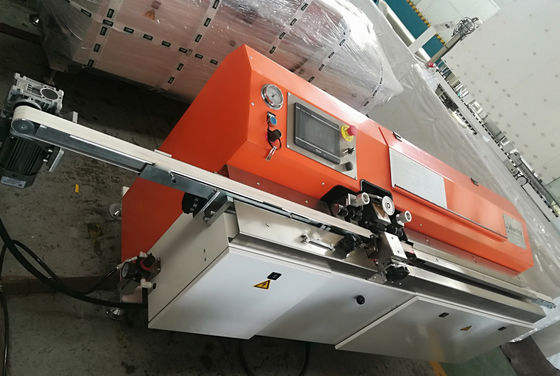

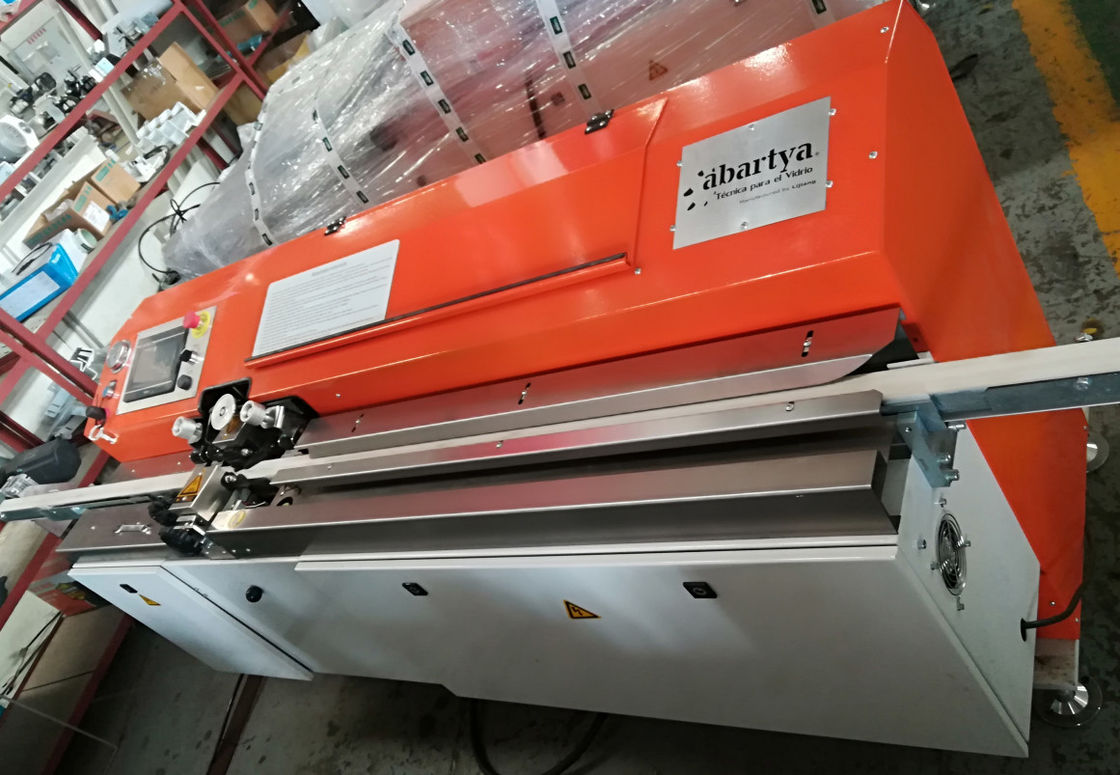

Detail picture
Optional functions of butyl extruder machine:
200L glue cylinder is optional
Related Product
1.Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
2.Desiccant Filling Machine LJGZ 2020
Main feature
• Adopt Siemens PLC control system
• Touch screen interface, easy operation
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1100mm*1100mm*3600mm |
3.Spacer trip cutting machine LJQJ 02
Main feature
• It is used for cutting aluminum strip
• Allowed to cut many spacers,keep high efficiency
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |
