Product Details:
|
Product Name: | Butyl Glue Extrusion Coating Machine | Application: | Double Glazing Glass Processing |
---|---|---|---|
Heating Time: | 15 Mins | Squeeze Pressure: | 10-25MPa |
Speed: | 0-47m/min | Voltage: | 380V 50Hz 3P |
Squeeze Pressure: | 10-18MPa | Glue Thickness: | 0.3-0.5mm |
Aluminum Spacer Width: | 5.5-26.5mm | Weight: | 750KG |
High Light: | 10MPa Butyl Extruder Machine,IGU Butyl Extruder Machine,IGU 10MPa hot melt glue dispenser machine |
Overview of butyl gule extrusion coating machine
LJTB01 Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.
Butyl gule extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The operation of the butyl extruder is more easier than before,it uses large electrical control panel . The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min.
Tech parameters of high speed butyl extruder machine
Squeeze pressure | 10-25MPa |
Temperature | 110~140℃ |
Glue thickness | 0.3-0.5mm |
Glue width | 3.5mm |
Aluminum spacer width | 5.5-26.5mm |
Speed | 5-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5.7KW,50HZ |
Dimension | 2800×700×900mm(L×W×H) |
weight7 | 50kg |
Equipment details of automatic butyl coating machine
1.Germany Siemens parts
Adopt Siemens brand, stable performance.
3.Fast coating speed,can up to 47m/min
4.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
5.KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
6.Alarm system
Automatically alarm system, reminding adding butyl.
7.Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
8.Glue cylinder Adopt the upright structure, easy to change butyl.

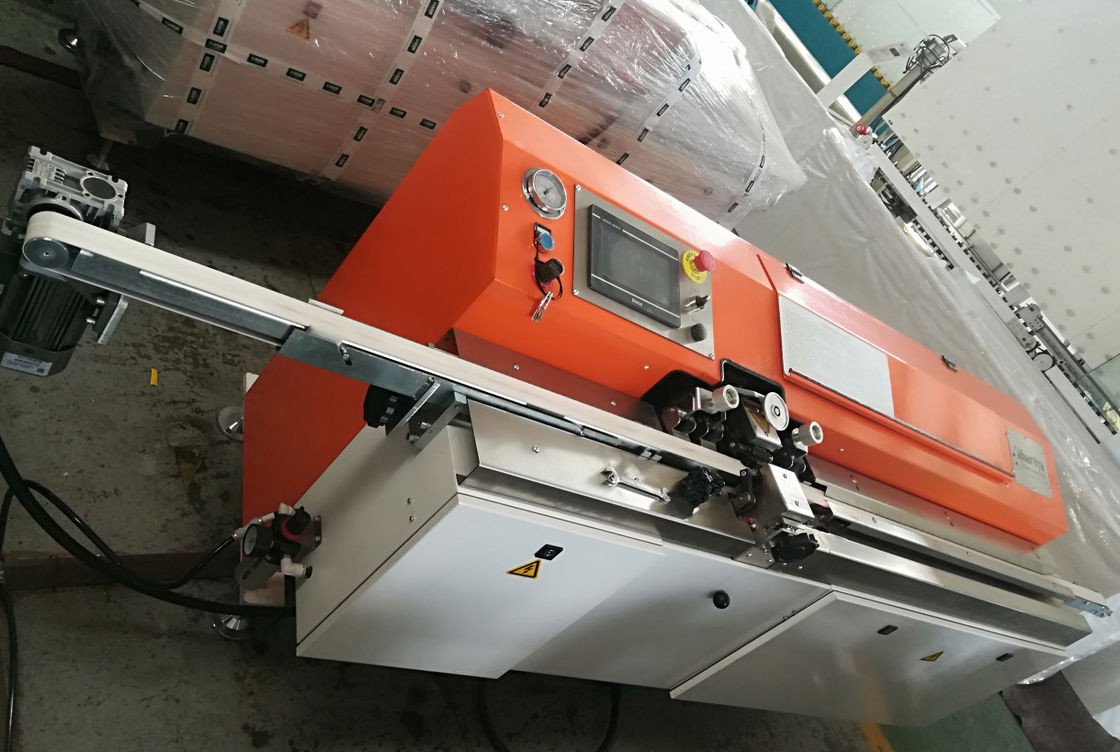

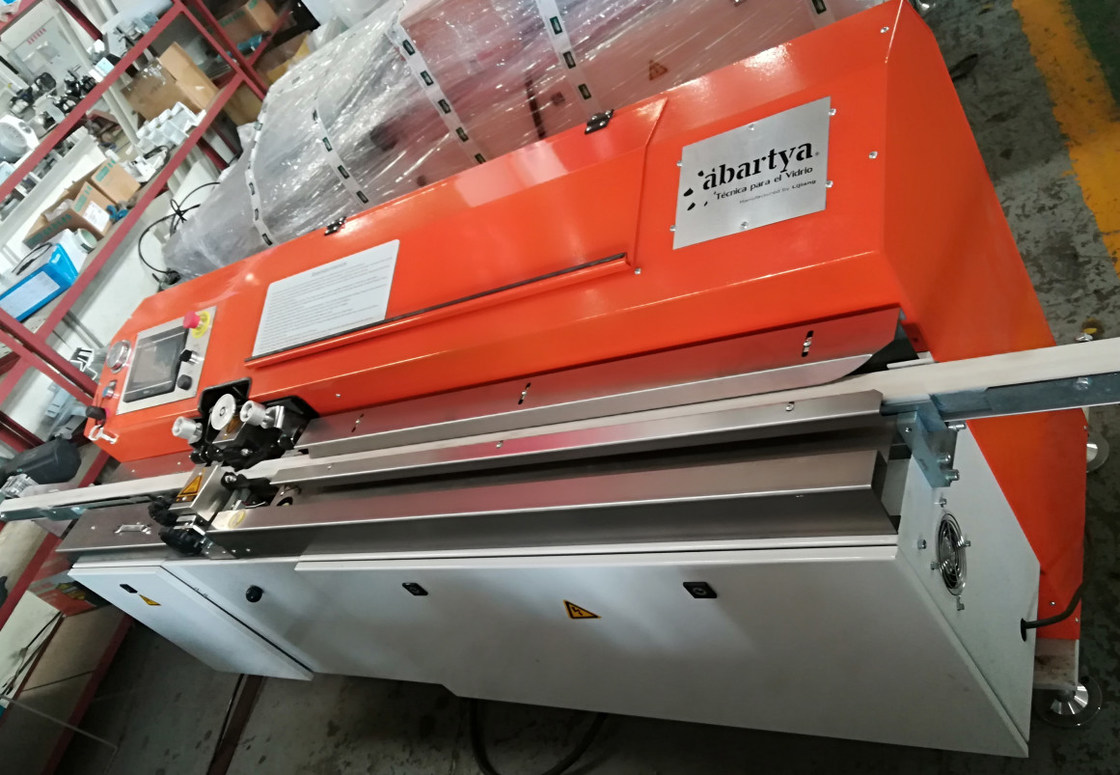

Detail picture
Optional functions of butyl coating machine:
200L glue cylinder is optional
Related Product
Automatic spacer bending machine LJZW2020
Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Equipment details
Technical data
Max.bending size |
2000mm*2000mm (2500mm*2500mm) |
Min.bending size |
250mm*200mm |
Aluminum spacer width |
5.5-27mm |
Dimensional error |
±0.5mm |
Angle error |
±1º |
Processing speed |
≤26s |
Air supply |
≥0.65MPa |
Total power |
AC220/380V 50Hz 2.5KW |
Dimension |
10500mm*2200mm*2600mm |
