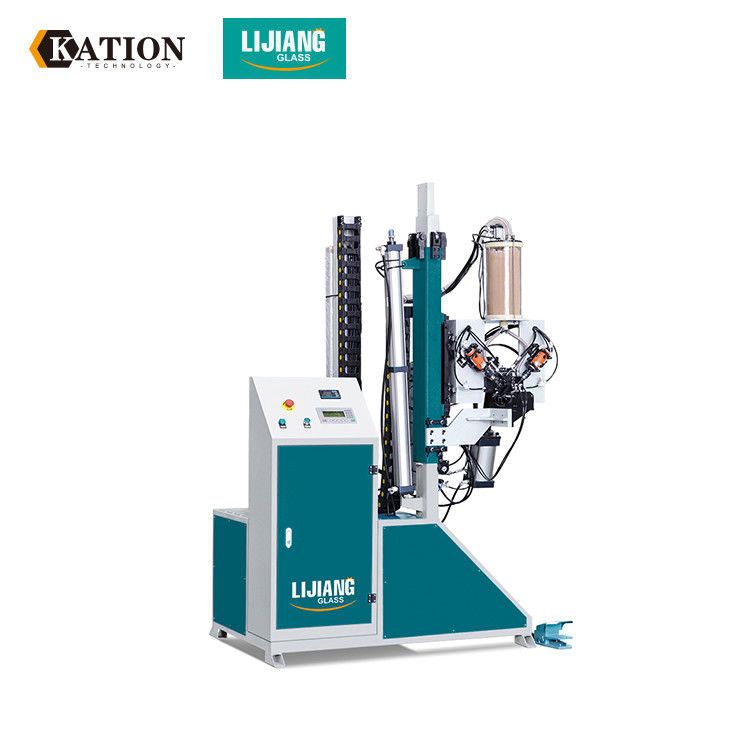

Product Details:
|
Production Name: | Automatical Molecular Sieve Filling Machine | Faction: | Automatically Drilling,filling And Sealing |
---|---|---|---|
Application: | Double Glazing Glass Making | Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm |
Filling Aluminum Frame's Minimal Size: | 300mm*250mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm | Optional: | Big Barrel |
Condition: | New | Certification: | CE |
Highlight: | 0.9mm Desiccant Filling Machinery,CE Desiccant Filling Machinery,0.9mm Desiccant Automatic Filling Machine |
Automated filling machine Adopt Japan ANCHUAN servo control system with stable performance,it can Automatically measure glass size, glue depth and glue speed with linear adjustment, coating glass with silicone,glass corners are full without air bubbles, smooth surface.
Advantage of simens PLC control molecular sieve filling machine
•Adopt Siemens PLC control system automatic desiccant filling machine
•Touch screen interface, simple and visible
Details of Automatic Desiccant Filling Machine
1.Auto drilling, filling and sealing function

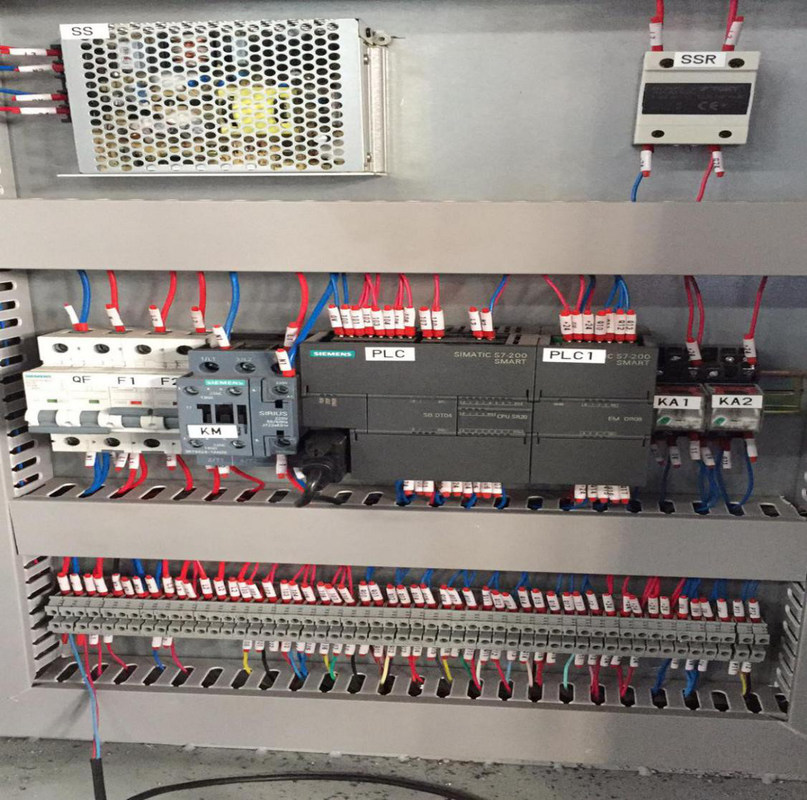

2.Electrical component are all Germany Brand-Siemens.
3. Protection device for machine head.
4.Machine height can be adjusted according to the size of spacer frame
5.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
6.Desiccant automatically loading from the Materials bucket.
Technical parameter of Aluminum Spacer Molecular sieve filling machine
Filling aluminum frame’s maximum size | 2500mm*2500mm |
Filling aluminum frame’s minimal size | 300mm*250mm |
Article aluminum specifications | 5.5-24mm |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1.8KW |
Molecular sieve diameter needed | 0.5-0.9mm |
Dimension | 1300mm*1100mm*3650mm |
Related products
Vertical Low-E Glass Edge Deletion Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
Technical data
Max. glass processing size |
2500*4500mm |
Min. glass processing size |
400*280mm |
Glass thickness |
3-15mm |
Diameter of grinding wheel |
200mm |
Conveyor height |
500mm |
Edge deleting width |
10-50mm |
Transmission speed |
1. 29m/min |
Edge deleting speed |
2-29m/min |
Abrasive wheel width |
10/12/15mm |
Glass thickness |
3 - 15mm |
Grinding wheel speed |
0~3000r/min |
Total air consumption |
100L/ min |
Air pressure |
≥0.8MPa |
Total power |
3P 380V 50Hz 3.35KW |
Dimension |
Dimensions :9700×2500×3400mm |
Total weight |
3700KG |
