Filling 5s Desiccant Filling Machine Molecular Sieve Filling Machine Line

Desiccant filling machine automatic molecular sieve filling machine line

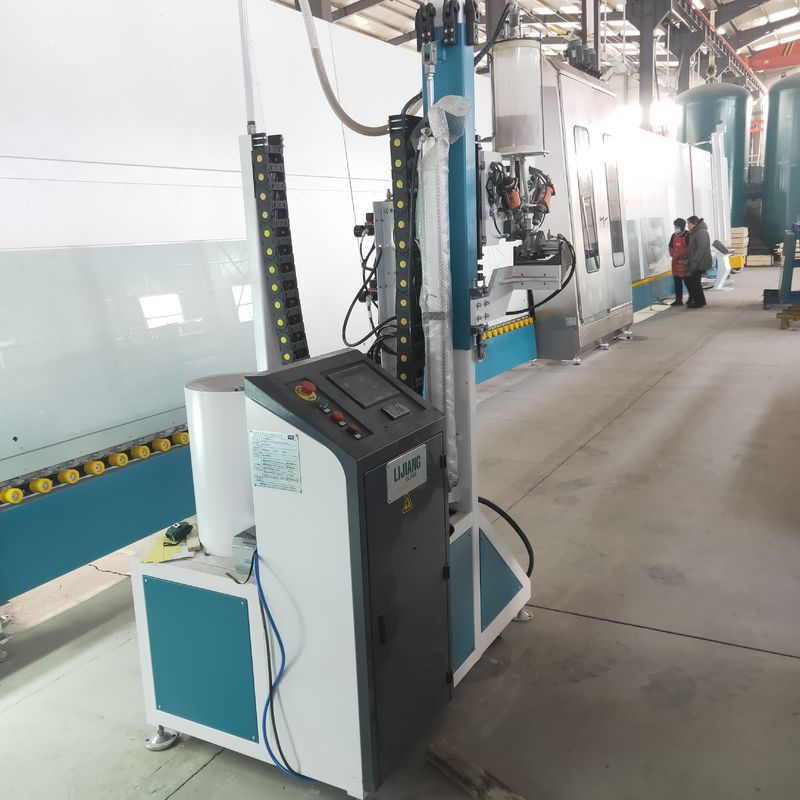

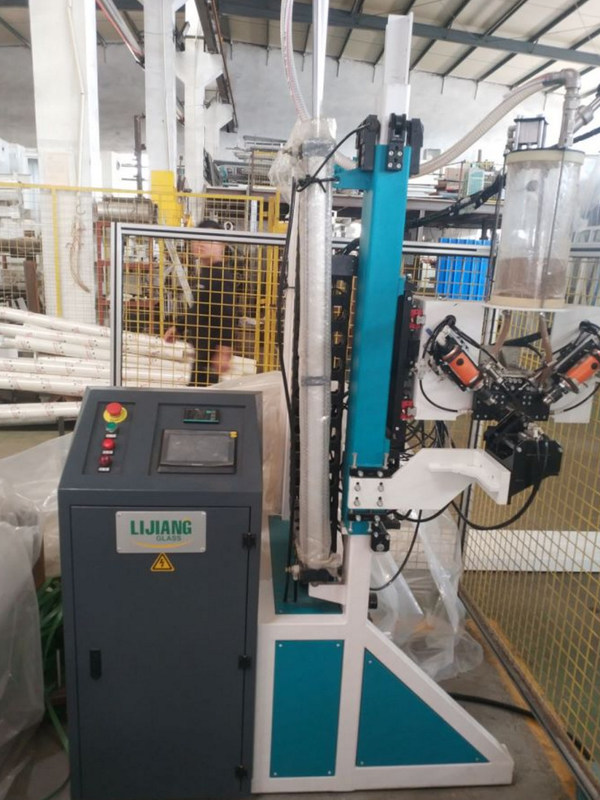

LJGZ 2020 automatic desiccant filling machine is one of the equipment for making double glazing glass. It uses the molecular sieve material to dry the air from glass. The desiccant filler machine can drill the holes, fill desiccant, seal the filling holes automatically. The desiccant filling machine can adjust the filling time according to the different sizes of the spacers. The butyl glue' heating time can be 5mins. Filling each spacer frame just needs about 3 - 5s, very fast filling speed.

Desiccant Filling Machine LJGZ 2020 Automatic filling machine

PLC: German Siemens
Low voltage electrical apparatus: Germany Siemens
Sensor:Korea Autonics
Guide:Taiwan TBI
Triplet:Taiwan Airtac
Solenoid valve:Taiwan Airtac
Gas driller:Taiwan Boa
Switch power:Taiwan Tend

Parameter datas:

Max. frame size 2000mm*2000mm (2500mm*2500mm)
Min. frame size 300mm*250mm
Aluminum specifications 6A- 27A
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1KW
Molecular sieve diameter needed 0.5-0.9 mm or 1.0 – 1.5mm
Dimension 1100mm*1100mm*3600mm

Main feature of Automatic filling machine Automatic filling machine

• Adopt Siemens PLC control system

• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes

• Touch screen interface, simple and visible

• The machine height can be adjusted according to the size of spacer frame

• Automatically loading and replenish molecular sieve

• Double tubes for unloading to increase filling speed

• Filling time can be adjusted

• Automatically drilling, filling and sealing

• Core parts are imported brands

• Using big plastic barrel, save feeding time and improve efficiency (Optional)

• Protection device for machine head (Optional)

• Filling arc frame (Optional)

• Fill large particle molecular sieve

Technical data of Automatic filling machine

The company information :

LIJIANG’ new factory covers an area of 20000 square meters, has more than 100 employees, 6 people with middle and senior technical titles, 8 full-time technical R & D personnel, 3 production workshops (welding sheet metal workshop, machining workshop and assembly workshop) and technical R & D department, and has an independent international trading company (JINAN KATION). The production management and sales system of the enterprise adopts the advanced ERP and CRM management software in China to build an efficient, accurate, united and orderly high-end team.
