6m/min Automatic Hot Melt Extruder Butyl Rubber Sealing Coating Machine

Large Image : 6m/min Automatic Hot Melt Extruder Butyl Rubber Sealing Coating Machine

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan Lijiang Glass Machinery
Certification:	CE & ISO9000
Model Number:	LJTB01 Butyl Extruder Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Discussible
Packaging Details:	Wooden Cases Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15 sets per month

Contact Now

6m/min Automatic Hot Melt Extruder Butyl Rubber Sealing Coating Machine

Description

Voltage:	380v/50Hz	Condition:	New
After-sales Service Provided:	Field Maintenance And Repair Service	Dimension(lwh):	1100mm X 950mm X 1630mm
Weight:	600kgs	Power(w):	1.8kw
Air Pressure:	0.6MPa	Product Name:	Butyl Hollow Glass Processing Machine Coating Uniform
Warranty:	1year	Color:	As Requirement
Usage:	Double Glass Production	Squeeze Pressure:	10-14MPa
Conveying Speed:	6~25m/min	Power:	3kw
Power Supply:	380V 50Hz	Function:	Double Glass Aluminum Spacer
Highlight:	6m/Min Automatic Hot Melt Extruder , Butyl Rubber Automatic Hot Melt Extruder , 6m/Min rubber extruder machine

Double glass processing machine Automatic butyl extruder coating machine

Automatic butyl extruder coating machine is used for coating Aluminum spacer strip, which consists of hydraulic system, heating system, control system, body and other parts.Butyl rubber coater is used for coating non flexible spacer strip, which consists of hydraulic system, heating system, control system, body and other parts.

Squeeze pressure	10-18MPa
Temperature	110~140℃
Aluminum spacer width	4-30mm
Speed	0-47m/min
Diameter of butyl cylinder	200mm
Air supply	0.4m³/min
Air pressure	≥0.6MPa
Total power	415v 50 hz 3 phrase
Dimension	2950×890×1004mm(L×W×H)
Weight	750kg

* PLC control system, touch screen interface

* Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

* The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

* Fast preheat, improve work efficiency

* with preheating function

* With exhaust inflatable function, improve the quality of sealing and save time for plastic

* Quickly coating speed,can up to 47m/min

* Saving the amount of glue

Benefits & Advantages

1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9.The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.

The Unique ID Code Number

All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

The Touching Screen Interface

The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

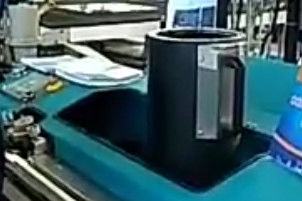

The Materials Bucket

The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

The Electrical Component

The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
