Aluminum Spacer Frames 110C Butyl Extruder Machine With Hot Melt Butyl

Large Image : Aluminum Spacer Frames 110C Butyl Extruder Machine With Hot Melt Butyl

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan Lijiang Glass Machinery
Certification:	CE & ISO9000
Model Number:	LJTB01 Butyl Extruder Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Discussible
Packaging Details:	Wooden Cases Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15 sets per month

Contact Now

Aluminum Spacer Frames 110C Butyl Extruder Machine With Hot Melt Butyl

Description

Voltage:	380V 50HZ	Condition:	New
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Dimension(lwh):	3000mm * 600mm * 950 Mm
Weight:	500kg	Power(w):	3KW
Air Pressure:	0.6MPa	Product Name:	Butyl Hollow Glass Processing Machine Coating Uniform
Warranty:	12 Months	Application:	Primary Sealant Of Insulating Glass
Color:	As Requirement	Squeeze Pressure:	12~16Mpa
Conveying Speed:	0-30m/min	Extruding Pressure:	110-160℃
Highlight:	110C Butyl Extruder Machine , Hot Melt Butyl Extruder Machine , 110C silicone extrusion machine

LJTB01 Butyl Extruder Machine

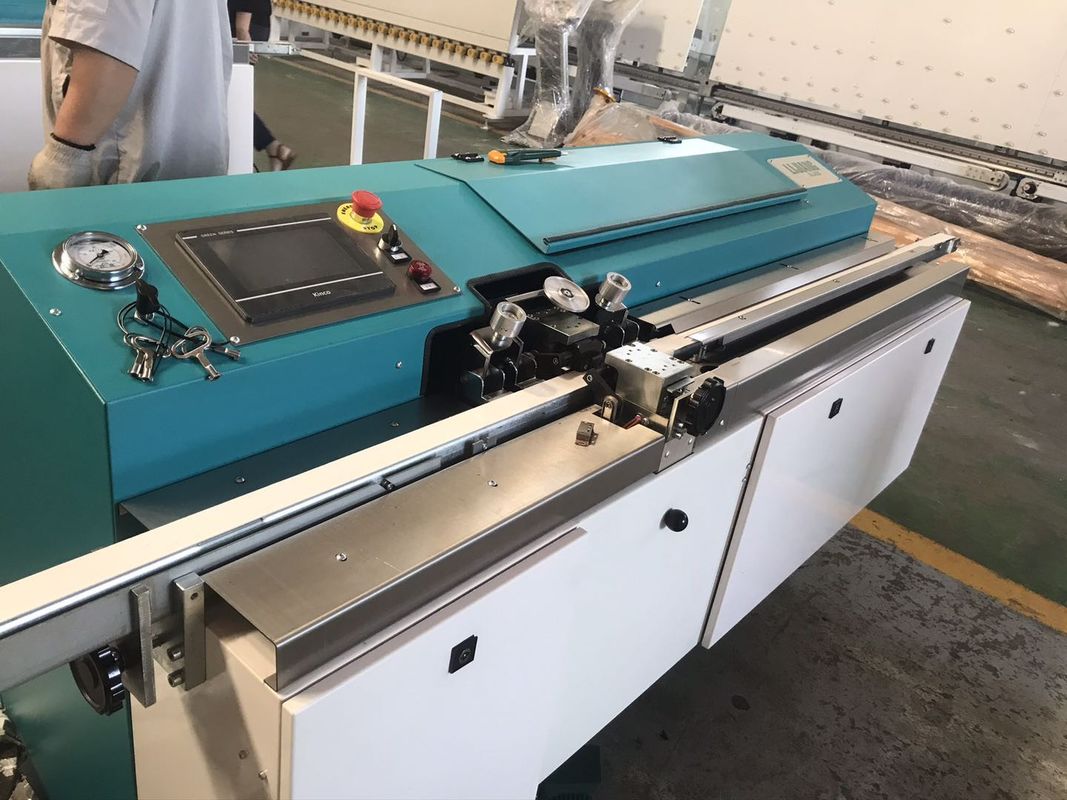

This type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.


			Item.

			Spec.

			filling aluminum frame max size

			2000mm*2000mm

			filling aluminum frame min size

			300mm*250mm

			molecular sieve diameter needed

			0.5-0.9mm

			Dimension

			1300mm*1100mm*3650mm

			Air source

			≥0.65MPa

			Total power

			220V 50Hz 1.5Kw

			Name

			Brand

			PLC

			Germany SIEMENS

			Triplet

			TAIWAN AIRTAC

			Low voltage electrical apparatus

			Germany SIEMENS

			Solenoid valve

			TAIWAN AIRTAC

			Sensor

			Korea AUTONICS

			Gas driller

			Taiwan BOA

			Guide

			Taiwan TBI

			Switch power

			Taiwan TEND

Item.		Spec.
filling aluminum frame max size		2000mm*2000mm
filling aluminum frame min size		300mm*250mm
molecular sieve diameter needed		0.5-0.9mm
Dimension		1300mm1100mm3650mm
Air source		≥0.65MPa
Total power		220V 50Hz 1.5Kw

Name		Brand
PLC		Germany SIEMENS
Triplet		TAIWAN AIRTAC
Low voltage electrical apparatus		Germany SIEMENS
Solenoid valve		TAIWAN AIRTAC
Sensor		Korea AUTONICS
Gas driller		Taiwan BOA
Guide		Taiwan TBI
Switch power		Taiwan TEND

Benefits & Advantages

1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9.The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.

The Unique ID Code Number

All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

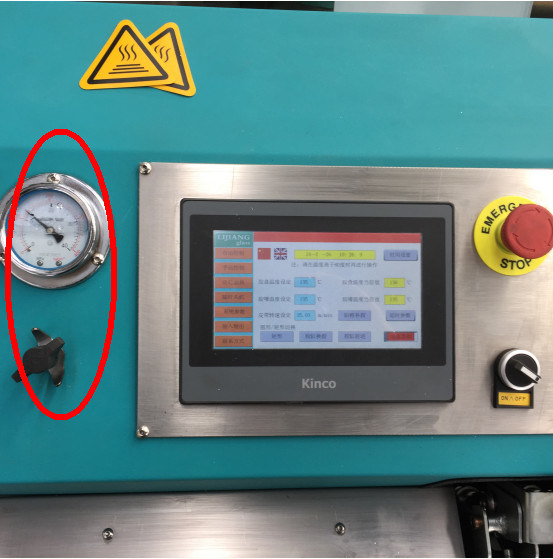

The Touching Screen Interface

The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

The Materials Bucket

The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

The Electrical Component

The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
