Name: 0.6MPa Automated Butyl Extruder Machine For Insulating Glass Industry
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJTB01 Butyl Extruder Machine
Availability: InStock

Home > Products > Butyl Extruder Machine >

0.6MPa Automated Butyl Extruder Machine For Insulating Glass Industry

0.6MPa Automated Butyl Extruder Machine

Insulating Glass Automated Butyl Extruder Machine

0.6MPa hot melt adhesive machine

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan Lijiang Glass Machinery

Certification:

CE & ISO9000

Model Number:

LJTB01 Butyl Extruder Machine

Request A Quote

Product Details

Voltage:

380V 50HZ

Condition:

New

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Weight:

500kg

Power(w):

3KW

Air Pressure:

0.6MPa

Product Name:

Butyl Hollow Glass Processing Machine Coating Uniform

Warranty:

12 Months

Color:

Blue Or Customize

Squeeze Pressure:

12~16Mpa

Conveying Speed:

0-30m/min

Extruding Pressure:

110-160℃

Highlight:

0.6MPa Automated Butyl Extruder Machine

Insulating Glass Automated Butyl Extruder Machine

0.6MPa hot melt adhesive machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Discussible

Packaging Details

Wooden Cases Package

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

15 sets per month

Hot Melt Extruder Butyl Rubber Sealing Coating Machine

Get Best Price

Insulated Glass Rubber Butyl Extruder Machine Glue Coating

Get Best Price

Video

Anti Sticking Conveyor Belt Butyl Rubber Coating Machine Automatic Distance Measurement

Get Best Price

47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine

Get Best Price

Contact Now

Product Description

Automated Butyl Extruder Machine For Insulating Glass Industry


JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated product development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railwayline,it’s very convent for transportation.
The company adheres to the “Hi-Q products”. We are striving to create thetop-grade products through setting up Tchnology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. Now our company are the main supplier of glass deep processing enterprises in China.Our equipment are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our machines in China. We have got CE certification in 2017. Sofar our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on.

At the same time, our company cooperates with scientific research institution, which is based on research and development center,imported advanced intelligence. Our company successively cooperates with institution of China North Industries Group and Shandong University in order to develop more new products. Now we have already successfully produced vertical insulating glassproduction line, vertical insulating glass sealing robot and new butyl extruder machine, which quality has reached the domestic top-gradelevel.

LIJIANG GLASS are goes into a leading way in the mechanical field with the advanced technology, first-class products,

perfectservice and good reputation!

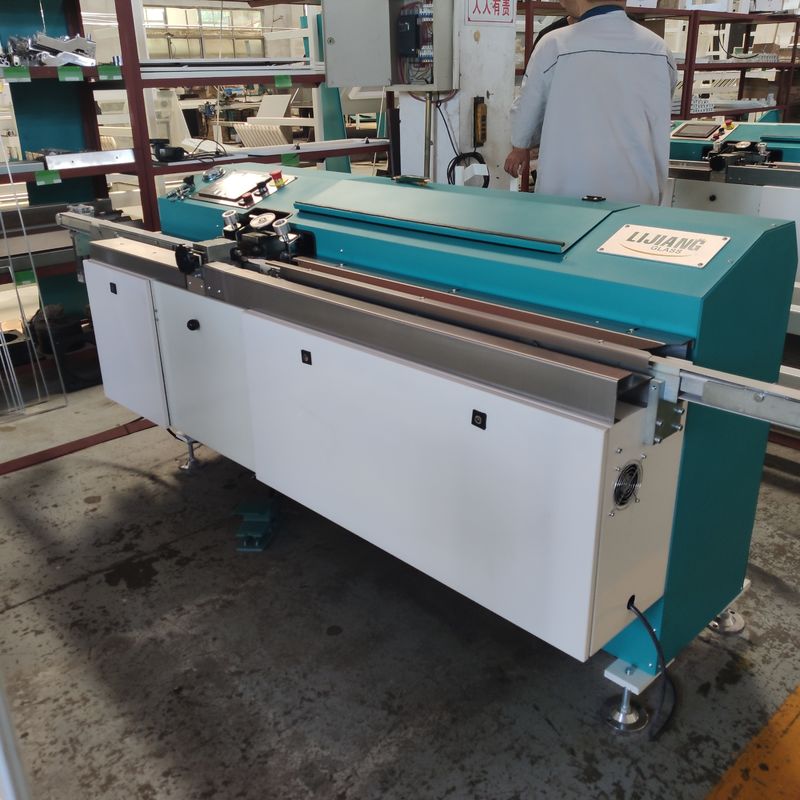

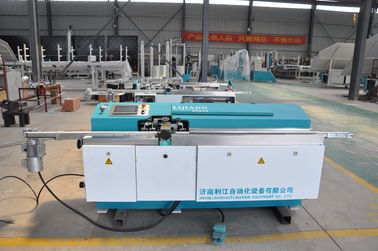

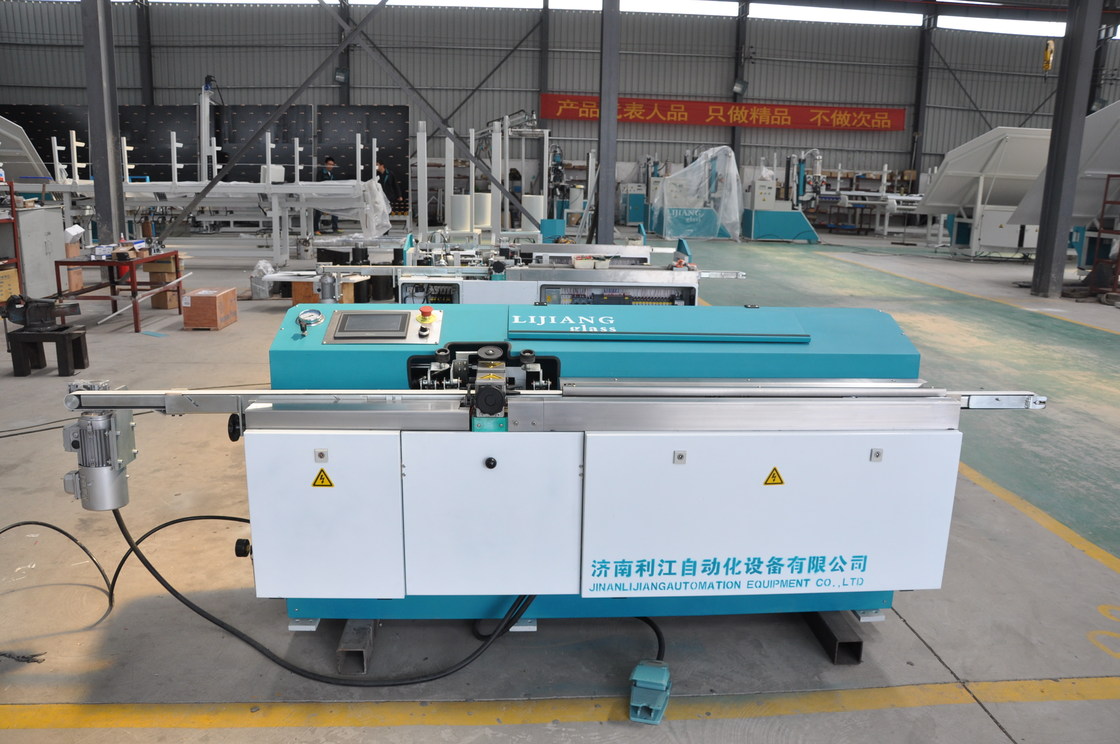

Butyl Extruder Machine
LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames (and other spacers) evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation easier than before. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts German pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The butyl extruder has reached the worldwide technology with the characteristic of complete functions and famous spare parts.

			Item.

			Spec.

			Squeeze pressure

			10-18MPa

			Temperature

			110~140℃

			Aluminum spacer width

			4-30mm

			Speed

			0-47m/min

			Diameter of butyl cylinder

			200mm

			Air supply

			0.4m³/min

			Air pressure

			≥0.6MPa

			Total power

			380V, 5KW, 50HZ

			Dimension

			2600×680×1100mm(L×W×H)

			Weight

			650kg

Tags：

hot melt butyl extruder

double glass machine

butyl silicone sealant

47m/min Automatic Butyl Extruder Machine For Coating Aluminum Spacer Frame

Get Best Price

Hot Melt Extruder Butyl Rubber Sealing Coating Machine

Get Best Price

Insulated Glass Rubber Butyl Extruder Machine Glue Coating

Get Best Price

Video

Anti Sticking Conveyor Belt Butyl Rubber Coating Machine Automatic Distance Measurement

Get Best Price

47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine

Get Best Price

Send your inquiry directly to us

Item.	Spec.
Squeeze pressure	10-18MPa
Temperature	110~140℃
Aluminum spacer width	4-30mm
Speed	0-47m/min
Diameter of butyl cylinder	200mm
Air supply	0.4m³/min
Air pressure	≥0.6MPa
Total power	380V, 5KW, 50HZ
Dimension	2600×680×1100mm(L×W×H)
Weight	650kg
