High Speed 47m/Min Butyl Silicone Extruder Machine Al Spacer Bar

Large Image : High Speed 47m/Min Butyl Silicone Extruder Machine Al Spacer Bar

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan Lijiang Glass Machinery
Certification:	CE & ISO9000
Model Number:	LJTB01 Butyl Extruder Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Discussible
Packaging Details:	Wooden Cases Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15 sets per month

Contact Now

High Speed 47m/Min Butyl Silicone Extruder Machine Al Spacer Bar

Description

Voltage:	380V 50HZ	Condition:	New
After-sales Service Provided:	Video Technical Support	Weight:	500kg
Power(w):	3KW	Air Pressure:	0.6MPa
Product Name:	Butyl Hollow Glass Processing Machine Coating Uniform	Warranty:	14 Months After BL Time
Color:	As Requirement	Usage:	Butyl Rubber Coating
Squeeze Pressure:	12~16Mpa	Conveying Speed:	0-30m/min
Extruding Pressure:	110-160℃
Highlight:	47m/Min Butyl Silicone Extruder Machine , Al Spacer Butyl Silicone Extruder Machine , 47m/Min silicone extrusion machine

High Speed 47m/min Al Spacer Bar Butyl Silicone Extruder Machine for Insulating Glass Hollow Glass Double Glazed Process


Butyl Extruder Machine LJTB01

LJTB 01 Butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses a large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by a frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now.

Item.	Spec.
Product name	Butyl Extruder Machine LJTB01
Squeeze pressure	10-18MPa
Temperature	110~140℃
Glue thickness	0.3-0.5mm
Glue width	3.5mm
Aluminum spacer width	6A - 27A
Speed	5-47m/min

The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl easier. The height of the squeezing head can be adjusted automatically according to different kinds of aluminum spacers.

Finally, the butyl extruder has reached worldwide technology with the characteristic of complete functions and stable working mode.

Benefits & Advantages

1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9. The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.

The Unique ID Code Number

All the electrical wires of the machine parts have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

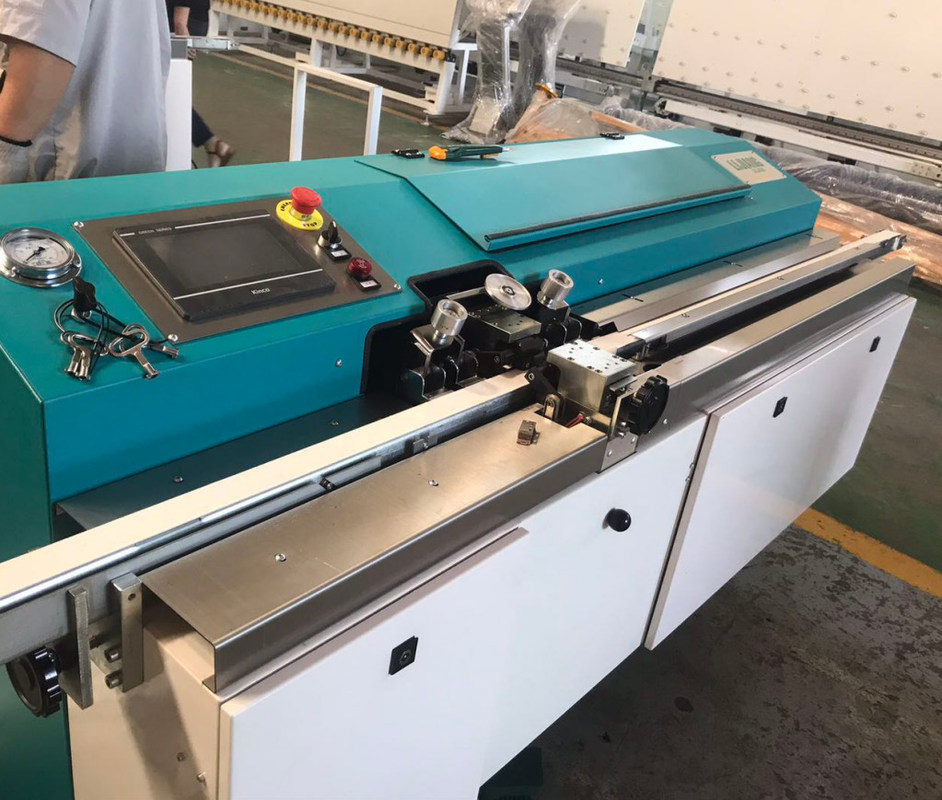

The Touching Screen Interface

The touching screen interface, which the parts of the machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

The Materials Bucket

The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

The Electrical Component

The electrical component is all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
