Product Details:
|
| Name: | Desiccant Filling Machine | Max Frame Szie: | 2000*2500mm |
|---|---|---|---|
| Min Frame Size: | 300*150mm | Aluminum Size: | 6A-27A |
| Air Source: | 0.65MPA | Total Power: | 1kw |
| Molecular Sieve Diameter: | 1.5-2mm | Machine Size: | 1300*1100*3600mm |
| PLC: | Germany Simens | Filling Height: | Can Adjust |
| High Light: | 0.65mpa 27a Desiccant Filling Machine,2500*2500mm Desiccant Filling Machine,0.65mpa Double Glazing Glass Machine |
||

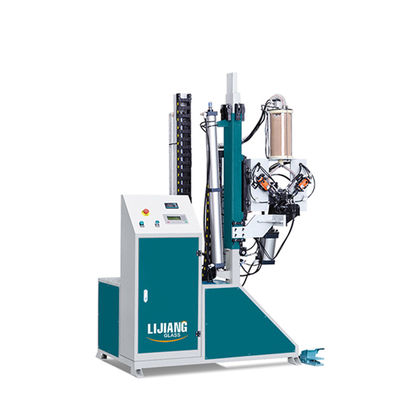

DOUBLE GLAZING GLASS MACHINE 0.65MPA 2500*2500MM 27A DESICCANT FILLING MACHINE
APPLICATION
The machine can automatically drill holes in the hollow glass partition frame and fill the role of desiccant and sealant. The control system adopts German Siemens, with fast filling speed and stable operation, ensuring the effective sealing performance of the sealant. This machine improves the quality of insulating glass, which is an indispensable equipment in the processing of insulating glass.
Main features
The filling height of n can be adjusted according to the size of the spacer box
1, Filling time can be adjusted
2, Automatic loading and replenishment of desiccant
Automatic drilling, filling and sealing function
3, Germany Siemens PLC control system
4, Touch screen interface, simple and visible
5, Safe and easy way to add glue
6, The machine can fill the arc frame. (Optional feature)
7, Fillable molecular sieve diameter 1.0mm-1.5mm (optional function)
Main technical parameter
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |

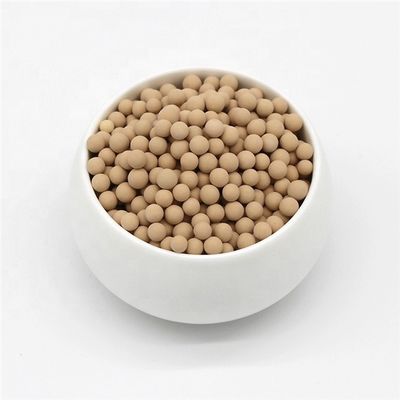

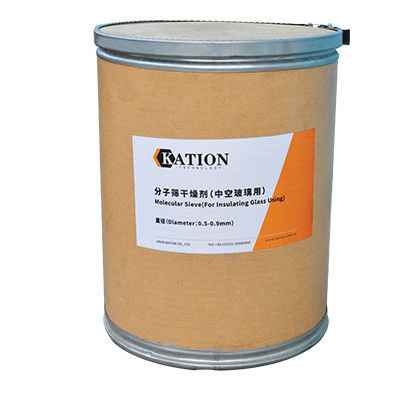

| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
| name | brand |
| PLC | German SIEMENS |
| Low voltage electrical apparatus | German SIEMENS |
| sensor | Korea AUTONICS |
| guide | Taiwan TBI |
| triplet | TAIWAN AIRTAC |
| Solenoid valve | TAIWAN AIRTAC |
| Gas driller | Taiwan BOA |
| Switch power | Taiwan TEND |
