Product Details:
|
| Production Name: | Double Glass Molecular Sieve Filling Machine | Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm |
|---|---|---|---|
| Filling Aluminum Frame's Minimal Size: | 300mm*250mm | Aluminum Specifications: | 6-27A |
| Faction: | Automatically Drilling,filling And Sealing | Application: | Insulating Glass Making |
| Certification: | CE | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm | Optional: | Big Barrel |
| Highlight: | 27A Molecular Sieve Filling Machine,27A Molecular Sieve Filling Machine,Molecular Sieve automated filling machine |
||

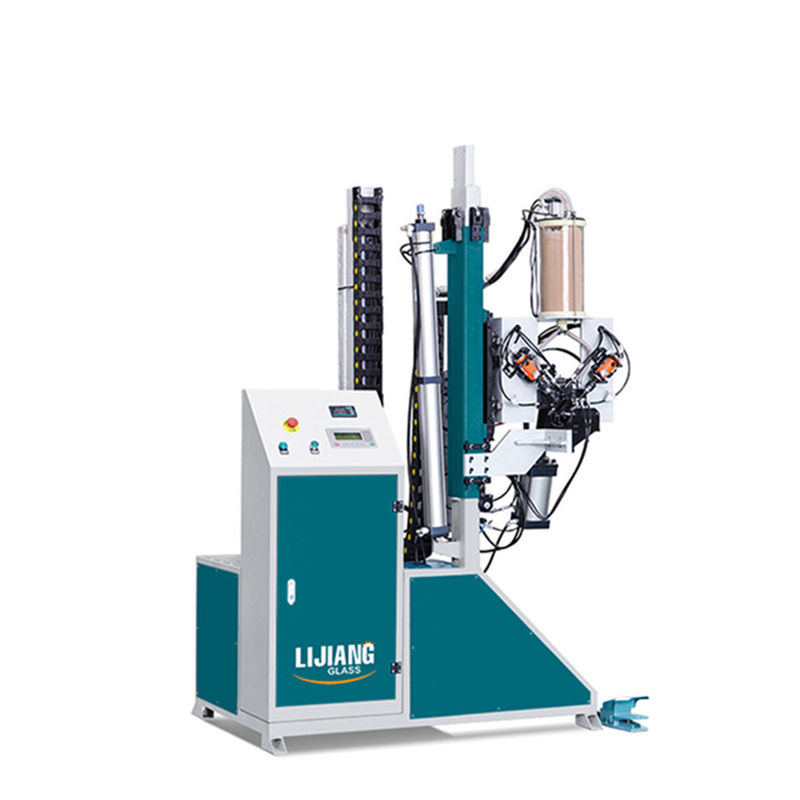

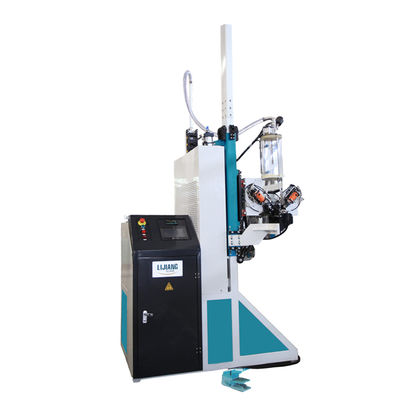

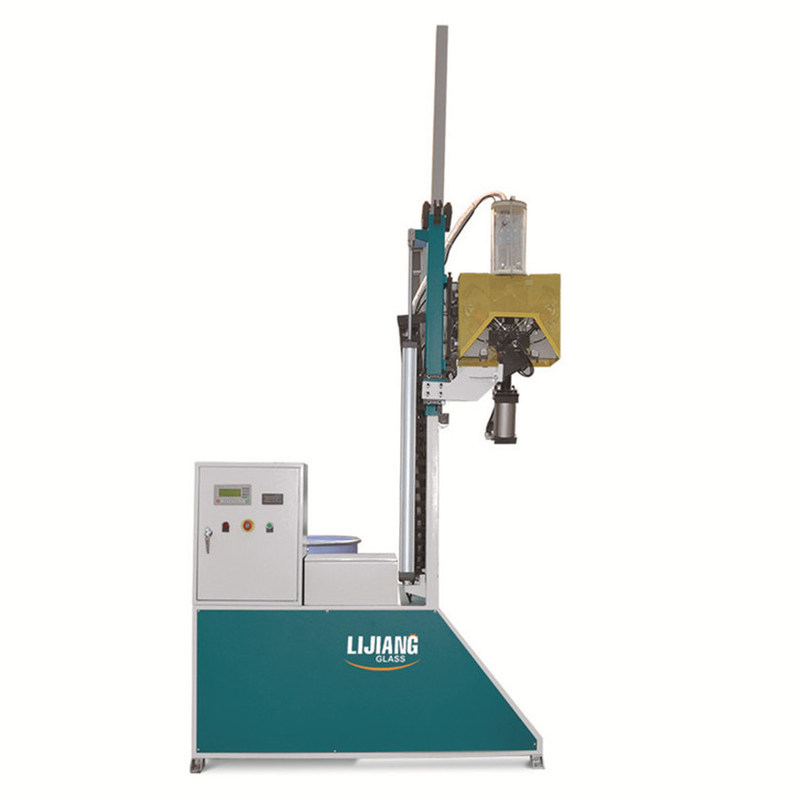

Double Glass Molecular Sieve Filling Machine Adopt Siemens PLC servo control system with stable performance,it can Automatically measure glass size, glue depth and glue speed with linear adjustment, coating glass with silicone,glass corners are full without air bubbles, smooth surface.
Features of Double Glass Molecular Sieve Filling Machine
•Adopt Siemens PLC control system automatic desiccant filling machine
Product overview of Double Glass Molecular Sieve Filling Machine
1.Auto drilling, filling and sealing function,Molecular sieve can be 0.5 -0.9mm or 1.0 -1.5mm sizes
2.Electrical component are all Germany Brand-Siemens.
•Adopt Siemens PLC control system automatic desiccant filling machine
3.Desiccant filling machine height can be adjusted according to the size of spacer frame
4.Desiccant automatically loading from the Materials bucket.
5.Molecular sieve filling machine have Protection device for machine head.
6.All the electrical wires have the ID number,it can match with specification , So it will be very easy for the further communication in the after sales service .
Technical parameter of Automatic Desiccant filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
