Insulating Glass Processing 18MPa Hot Melt Extruder Machine Extrusion Coating Machine

Insulating Glass Processing 18MPa Hot Melt Extruder Machine Extrusion Coating Machine

18MPa Hot Melt Extruder Machine

thick 0.5mm Hot Melt Extruder Machine

18MPa extrusion coating machine

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan Lijiang Glass Machinery

Certification:

CE & ISO9000

Model Number:

LJTB01 Automatic Butyl Extruder Machine

Contact Us
Request A Quote
Product Details
Name:
Automatic Butyl Extruder
Aluminum Spacer Width:
6A - 27A
Speed:
5-47m/min
Diameter Of Butyl Cylinder:
200mm
Air Pressure:
≥0.6MPa
Total Power:
380V, 5.7Kw, 50Hz
Dimension:
1600mm*1300mm*3600mm
Weight:
650kgs
Highlight:

18MPa Hot Melt Extruder Machine

,

thick 0.5mm Hot Melt Extruder Machine

,

18MPa extrusion coating machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Discussible
Packaging Details
Wooden Cases Package
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Automatic butyl extruder - LJTB01 new type coating machine

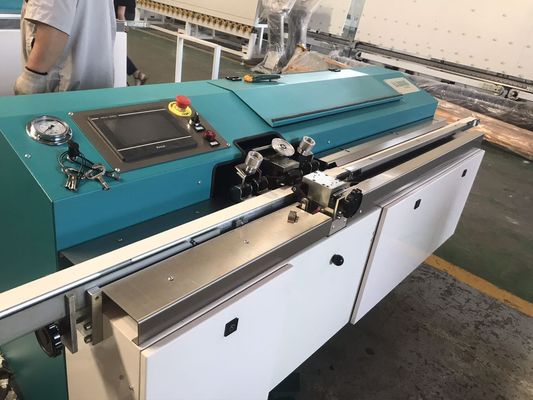

Insulating Glass Processing 18MPa Hot Melt Extruder Machine Extrusion Coating Machine 0

LJTB01 Butyl Extruder Machine

This type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts a pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses a vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of the squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of the squeezing head can be adjusted automatically according to the different aluminum spacers. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.

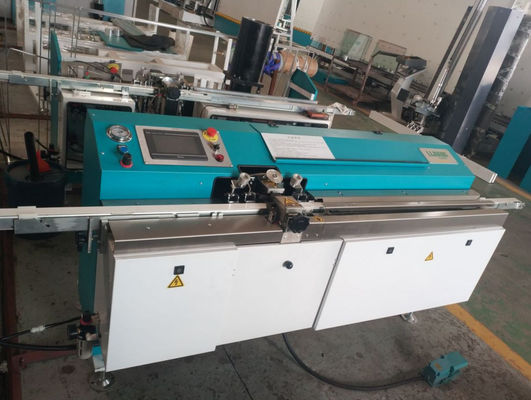

Insulating Glass Processing 18MPa Hot Melt Extruder Machine Extrusion Coating Machine 1


Main feature :

•PLC control system, KINCO touch screen interface
•Hydraulic system using German brands
•Alarm system, reminding adding butyl glue
•The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
•Exhaust function •Short preheating time, improve work efficiency
•Coating shape frames, the roller device can be selected at will
•Fast coating speed, can up to 47m/min •Stable pressure and even coating
•Saving glue. The amount of glue on both sides can reach 4g / m
•Big glue barrel, 200L. (Optional)



Benefits & Advantages


1.The machine height of can be adjusted according to the size of spacer frame
2.The machine time could be adjusted
3.The machine adopts auto loading and replenish
4.The machine adopts auto drilling, filling and sealing function
5.It use Germany Siemens PLC control system
6.The touching screen interface, simple and visible
8.It adopts vacuum pump loading device, increase the loading speed
9.The desiccant filling machine could use big bucket desiccant, save desiccant refill time, improve the work efficiency.

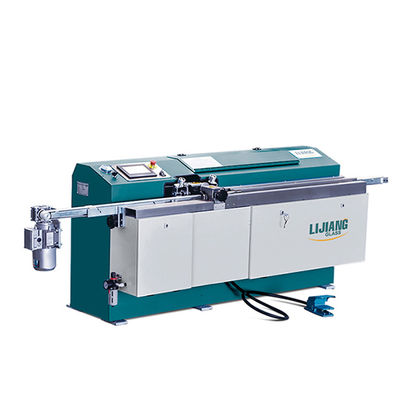

Insulating Glass Processing 18MPa Hot Melt Extruder Machine Extrusion Coating Machine 2



The Unique ID Code Number
All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

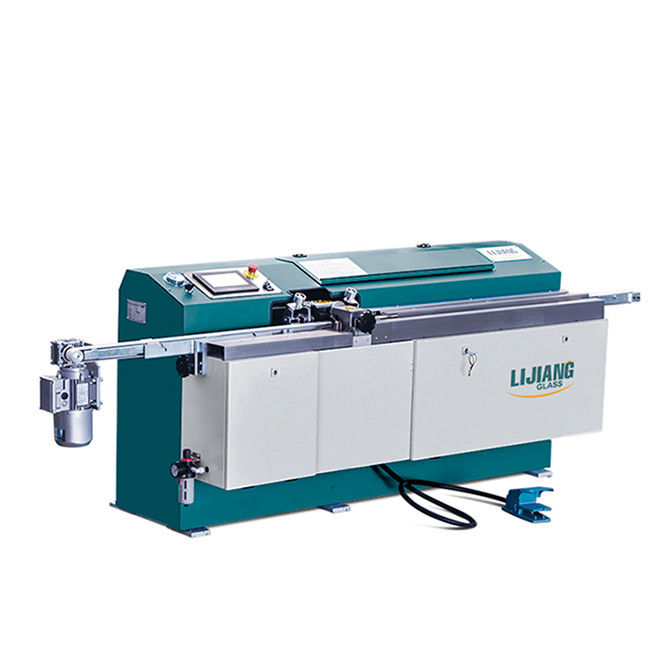

Insulating Glass Processing 18MPa Hot Melt Extruder Machine Extrusion Coating Machine 3



The Touching Screen Interface
The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

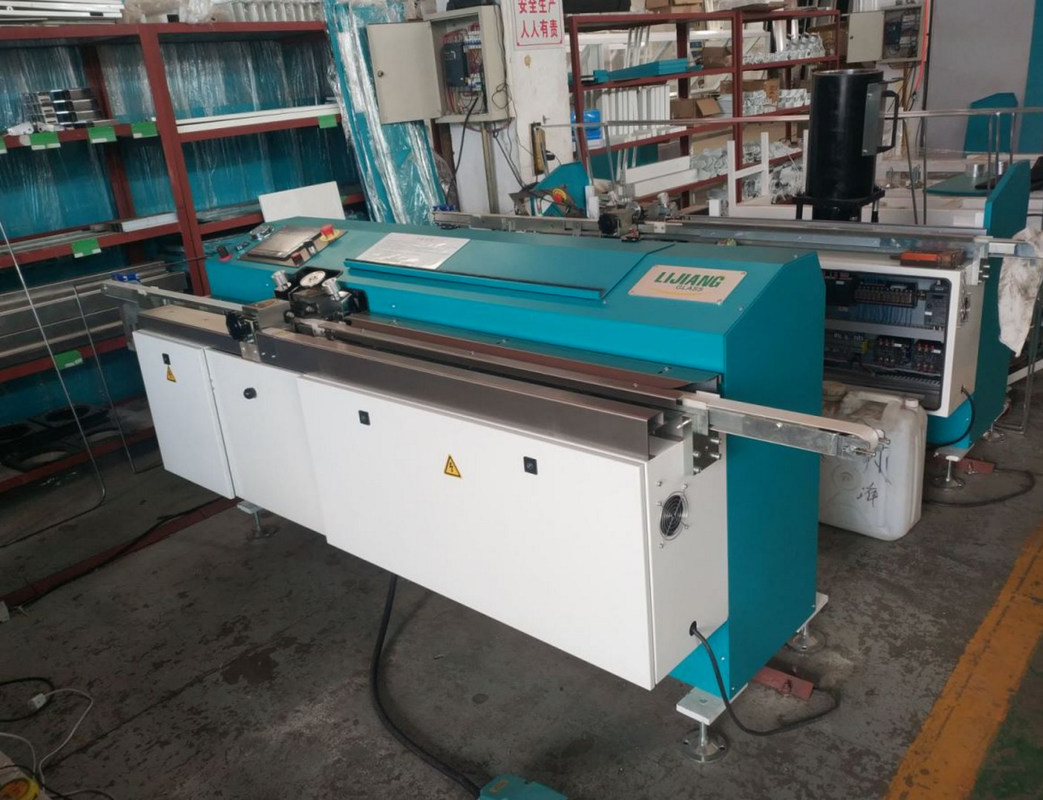

Insulating Glass Processing 18MPa Hot Melt Extruder Machine Extrusion Coating Machine 4



The Materials Bucket
The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

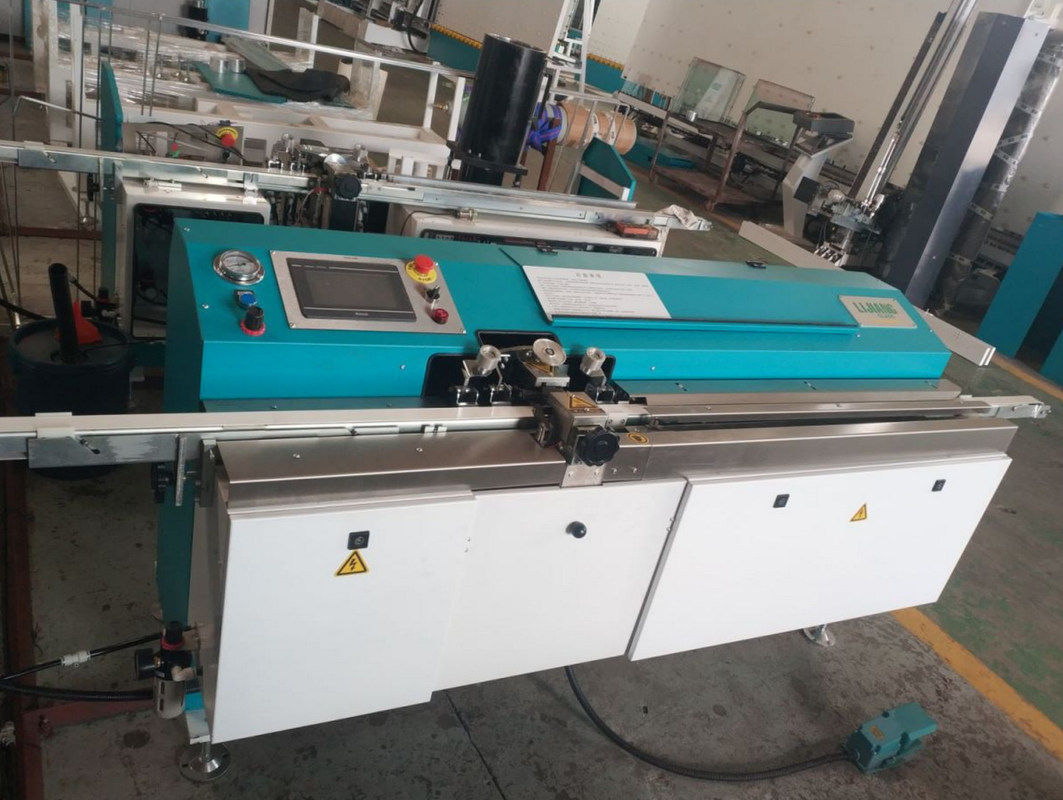

Insulating Glass Processing 18MPa Hot Melt Extruder Machine Extrusion Coating Machine 5



The Electrical Component
The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
Main specification:



Squeeze pressure
10-18MPa
Temperature
110~140℃
Glue thickness
0.3-0.5mm
Glue width
3.5mm
Aluminum spacer width
6A - 27A
Speed
5-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5.7KW,50HZ
Dimension
2800×700×900mm(L×W×H)
weight
650kg
