Automatic UPVC Window / Aluminum Window Frame Desiccant Filling Sealing Machine Desiccant Filler

Automatic UPVC Window / Aluminum Window Frame Desiccant Filling Sealing Machine Desiccant Filler
Automatic UPVC Window / Aluminum Window Frame Desiccant Filling Sealing Machine Desiccant Filler Automatic UPVC Window / Aluminum Window Frame Desiccant Filling Sealing Machine Desiccant Filler Automatic UPVC Window / Aluminum Window Frame Desiccant Filling Sealing Machine Desiccant Filler Automatic UPVC Window / Aluminum Window Frame Desiccant Filling Sealing Machine Desiccant Filler

Large Image :  Automatic UPVC Window / Aluminum Window Frame Desiccant Filling Sealing Machine Desiccant Filler

Product Details:
Place of Origin: Jinan City, Shandong Province, China
Certification: CE & ISO9000
Model Number: LJGZ2020 Automatic Desiccant Filling Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Discussible
Packaging Details: Wooden Cases Package
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now

Automatic UPVC Window / Aluminum Window Frame Desiccant Filling Sealing Machine Desiccant Filler

Description
Brand Name: Jinan Lijiang Glass Power: 1.8KW
Weight: 200Kg Warranty: 1 Year
Article Aluminum Spec.: 5.5-24mm Filling Aluminum Frame's Minimal Size: 300mm*250mm
Color: Customer Opitional Vacuum Pressure: >0.5bar
High Light:

UPVC Window Desiccant Filling Machine

,

Aluminum Window Desiccant Filling Machine

,

UPVC Window desiccant filler

LJGZ2020A Automatic Desiccant Filling Machine



APPLICATION



Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

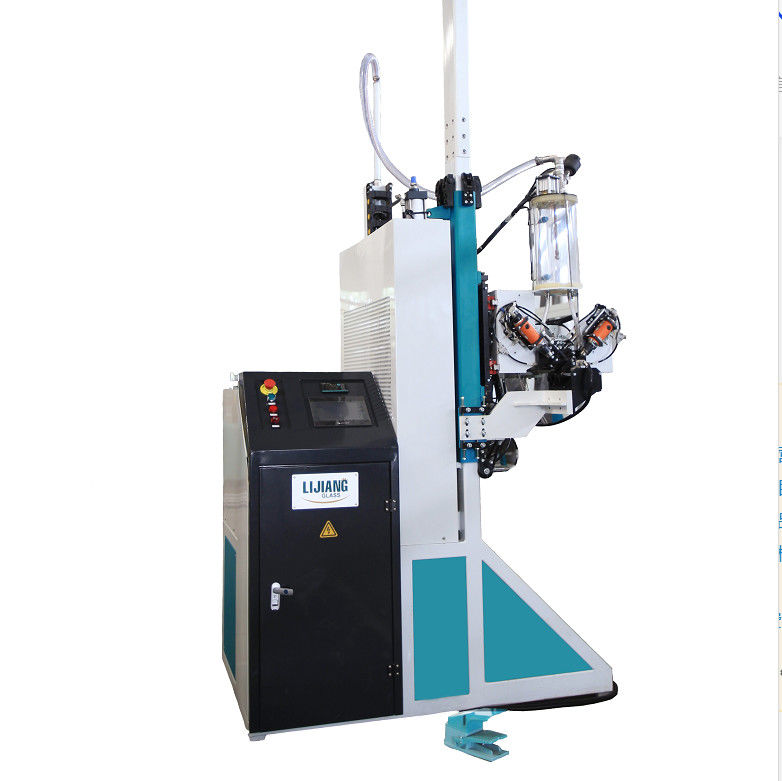

Automatic UPVC Window / Aluminum Window Frame Desiccant Filling Sealing Machine Desiccant Filler 0







Features & Advantages
●Mechanical part:

(1) The total length of the main beam of the suction hoist is designed to be 2000mm, and the upper part of the middle part is welded and sealed with a plate, and the middle part is used as a vacuum accumulator. The air tightness test is carried out after welding to ensure no leakage. When the equipment is suddenly powered off, it is still guaranteed to be able to reliably adsorb the plates for at least 20 minutes, and will not cause safety accidents such as equipment damage (the European CE standard is to maintain 10 minutes)

(2) This equipment is equipped with 6 suction cups with a diameter of 360mm for different sizes of glass. The position of each suction cup on the beam is adjustable to facilitate the adsorption of glass of different sizes.

●Electrical part:

(1) A vacuum pressure switch and a buzzer alarm unit are installed on the vacuum hoist. When the vacuum system pressure does not reach the set pressure, or when a power failure occurs, the alarm unit will control the red warning light to light up and the buzzer to sound. , Prompt the operator to deal with it in time.

●Vacuum part:

(1) The suction hoist adopts a German oil-free rotary vane vacuum pump, with a pumping capacity of 8m3/h, a large vacuum degree of over 85%, energy saving, compact and lightweight, no maintenance, etc.;

(2) The whole set of equipment is equipped with 6 vacuum suction cups, multi-point adsorption to ensure that the plate can maintain a high level during the handling process without tilting;

(3) The suction cup material is nitrile rubber, with a diameter of 360mm, oil (benzene), durable, acid and alkali resistance, and can effectively adsorb with FRP to produce a true single suction cup level. Theoretical large suction force = effective area (physical product * coefficient) * calculated pressure (0.6bar); (0.18*0.18*3.14)*0.6*10000=610.416, which is approximately 610.4Kg. According to the 4 times safety factor, the actual allowable suction power of the suction cup is 610.4/4=152.6Kg. The total suction power of 6 suction cups is 600kg. Note: The vacuum suction force mentioned in the above table is calculated under 60% vacuum degree. Under normal working conditions, the system vacuum degree can reach more than 85%;

(4) The vacuum pressure sensor is made of Japanese Panasonic brand, and the alarm pressure level is set to 60% vacuum;

(5) Each suction cup is equipped with a manual ball valve to control the opening and closing, which ensures that the same equipment can be applied to various specifications of plates;

(6) The upper and lower parts of the sucker rod are equipped with a spring. When the plate is not flat, the spring acts as a buffer to make the sucker evenly stressed, so as to ensure the safety and reliability of the suction cup.

● Overall

2. According to the European Union DIN EN 13155 vacuum system design for the outdoor building curtain wall installation site.

3. Horizontal handling, electric flipping and vertical handling.

4. Flexible design, can be applied to the handling of different sizes of FRP.




Main feature


Germany Siemens PLC control system
Touching screen interface, simple and visible
Fill for bending frame and connected frame
Auto desiccant loading function
Filling time can be adjusted
Auto drilling, filling and sealing function
Directly use big package desiccant, save time for desiccant refill, increase efficiency
Protect cover for machine head
Distinctive desiccant recycling device
Adopt vacuum pump loading device.

This model has a big barrel to storage desiccant ,no need to put desiccant frequently,increasing efficiency.

It has a vacuum pump to load desiccant,more quickly and improving efficiency.

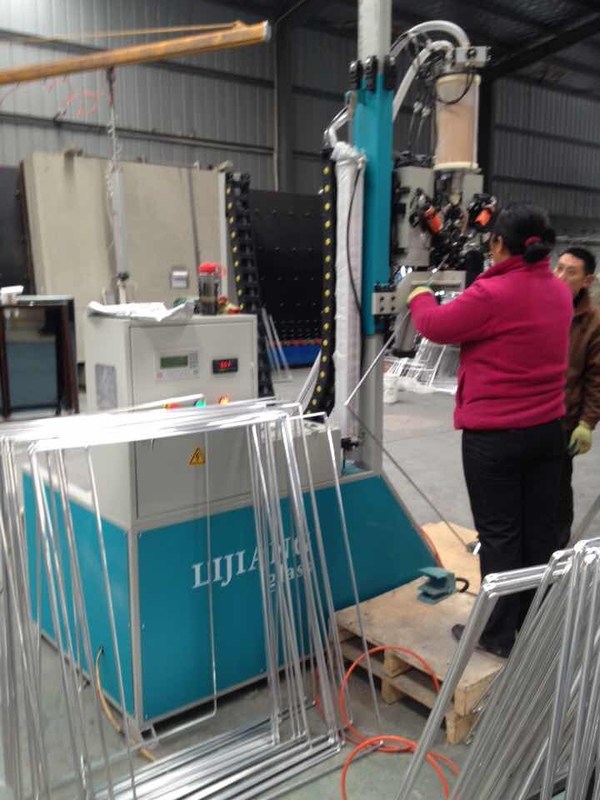

Automatic UPVC Window / Aluminum Window Frame Desiccant Filling Sealing Machine Desiccant Filler 1



Pneumatic glass handing manipulator is operated by using compressed air. The device does not use electricity and is safe and reliable, easy to operate.

It is an essential glass handling tool for a modern glass processing industry. The air flowing through the vacuum generator causes Vacuum Pressure to suck the glass.
Automatic UPVC Window / Aluminum Window Frame Desiccant Filling Sealing Machine Desiccant Filler 2



A cylinder stroke is acted by receiving the command signal from the compressed air in an inlet pipe. The device is commonly used for glass loading and unloading work in glass factory processing lines, such as grinding, cleaning, tempered, laminated, insulated, etc.



Main technical parameter



Name

Brand

Name

Brand

PLC

German SIEMENS

Triplet

TAIWAN AIRTAC

Lowvoltage electrical apparatus

German SIEMENS

Solenoid valve

TAIWAN AIRTAC

Sensor

Korea AUTONICS

Gas driller

Taiwan BOA

Guide

Taiwan TBI

Switch power

Taiwan TEND





Filling aluminum frame’s maximum size

2000mm*2000mm

Filling aluminum frame’s minimal size

300mm*250mm

Article aluminum specifications

5.5-24mm

Air source

≥0.65MPa

Power supply and power consumption

AC220V 50Hz 1.8KW

Molecular sieve diameter needed

0.5-0.9mm

Dimension

1300mm*1100mm*3650mm
