Place of Origin:
Jinan City, Shandong Province, China
Brand Name:
Jinan Lijiang Glass
Certification:
CE & ISO9000
Model Number:

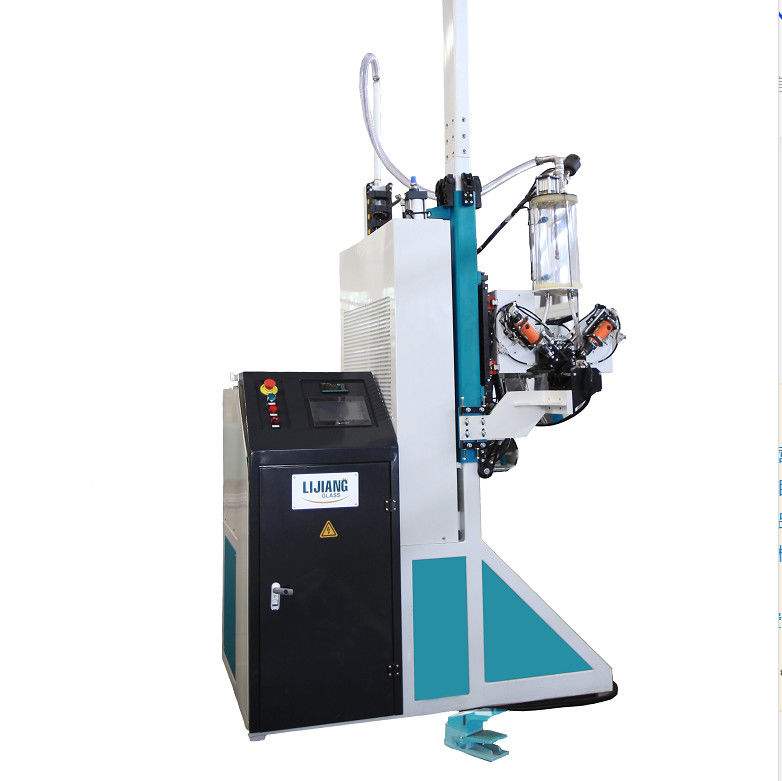

LJGZ2020 Desiccant Filling Machine
Aluminium Window / UPVC Window Frame Disccant / Molecular Sieve Filling Machine for Insulating Glass / Hollow Glass
APPLICATION
Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant.
Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant.
Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
Main Feature
· Germany Siemens PLC control system
· Touching screen interface, simple and visible
· Fill for bending frame and connected frame
· Auto desiccant loading function
· Filling time can be adjusted

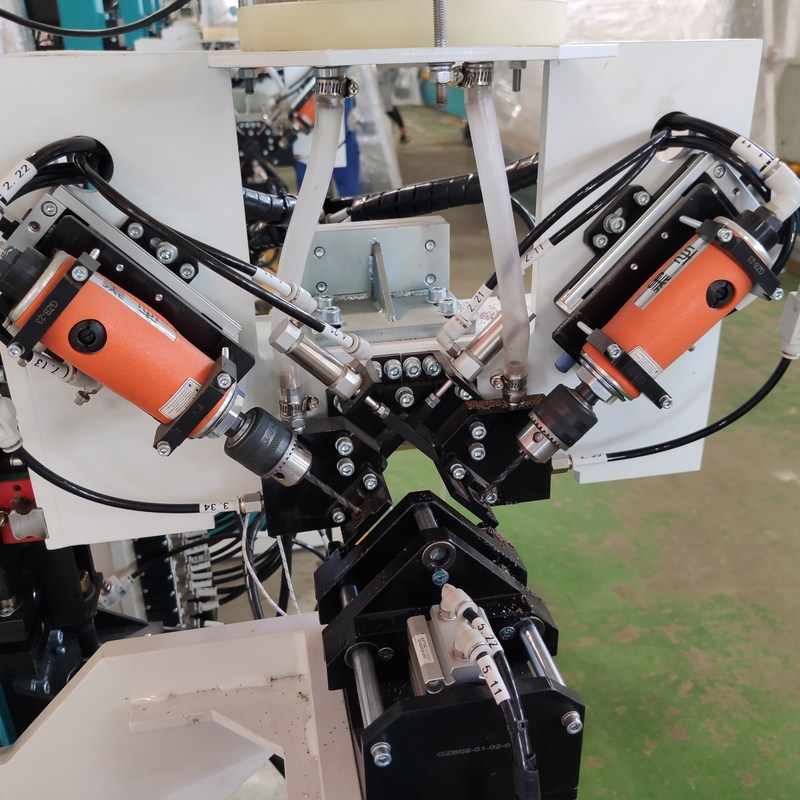

· Auto drilling, filling and sealing function.
Electrical component are all Germany Brand-Siemens.
All the electrical wires have the ID number,it can match with specification ,
also it will be very easy for the further communication in the after sales service.
Main technical parameter
| Name | Brand | Name | Brand |
| PLC | German SIEMENS | Triplet | TAIWAN AIRTAC |
| Lowvoltage electrical apparatus | German SIEMENS | Solenoid valve | TAIWAN AIRTAC |
| Sensor | Korea AUTONICS | Gas driller | Taiwan BOA |
| Guide | Taiwan TBI | Switch power | Taiwan TEND |
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
