Product Details:
|
| Name: | Butyl Extruder Machine | Aluminum Spacer Width: | 6A-27A |
|---|---|---|---|
| Coating Pressure: | 10-18mpa | Coating Temperature: | 110-140 ° |
| Total Power: | 5.7kw | Machine Size: | 2800*700*900mm |
| Coating Speed: | 0-47m/min | Butyl Plug Weight: | 7kg |
| Electricity Compoents: | Germany Simens | ||
| Highlight: | 18mpa Butyl Extruder Machine,5.7kw Butyl Extruder Machine,47m/Min Insulating Glass Machine |
||

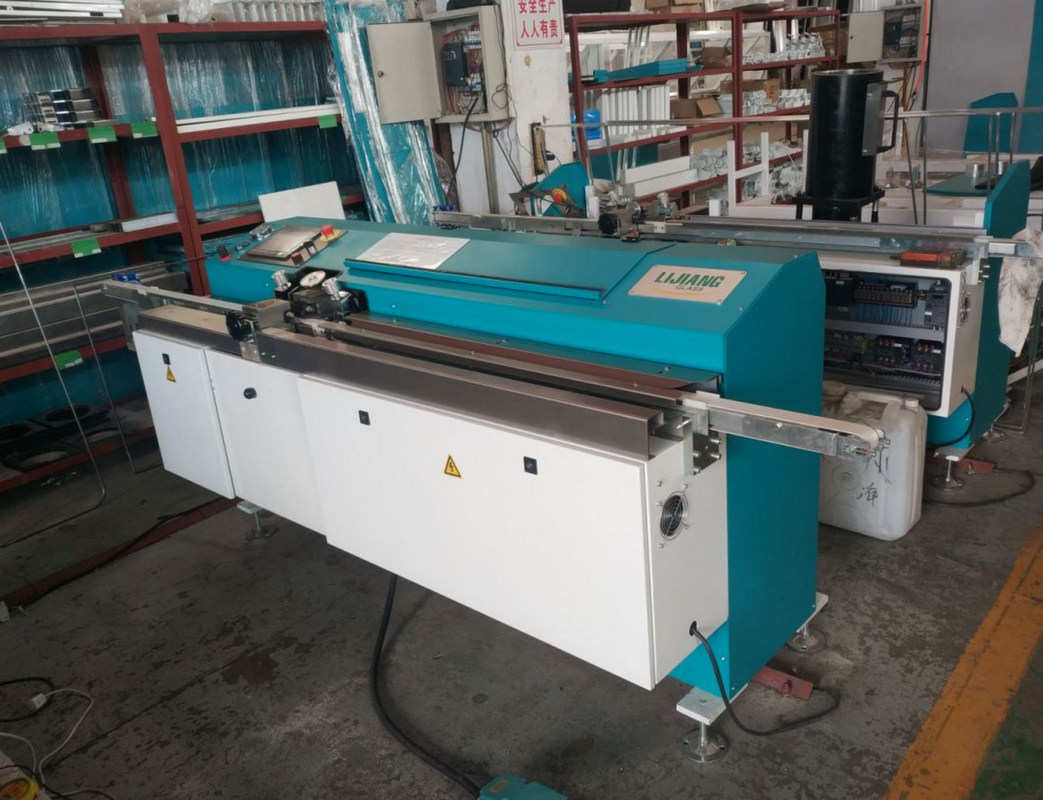

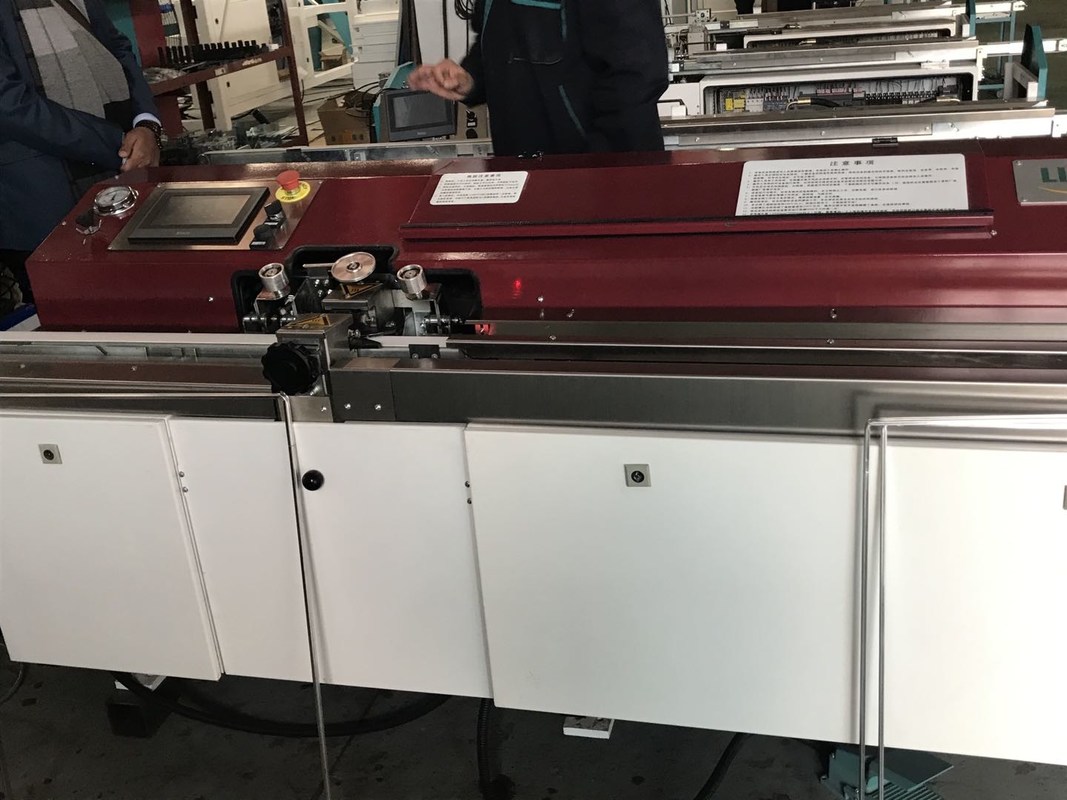

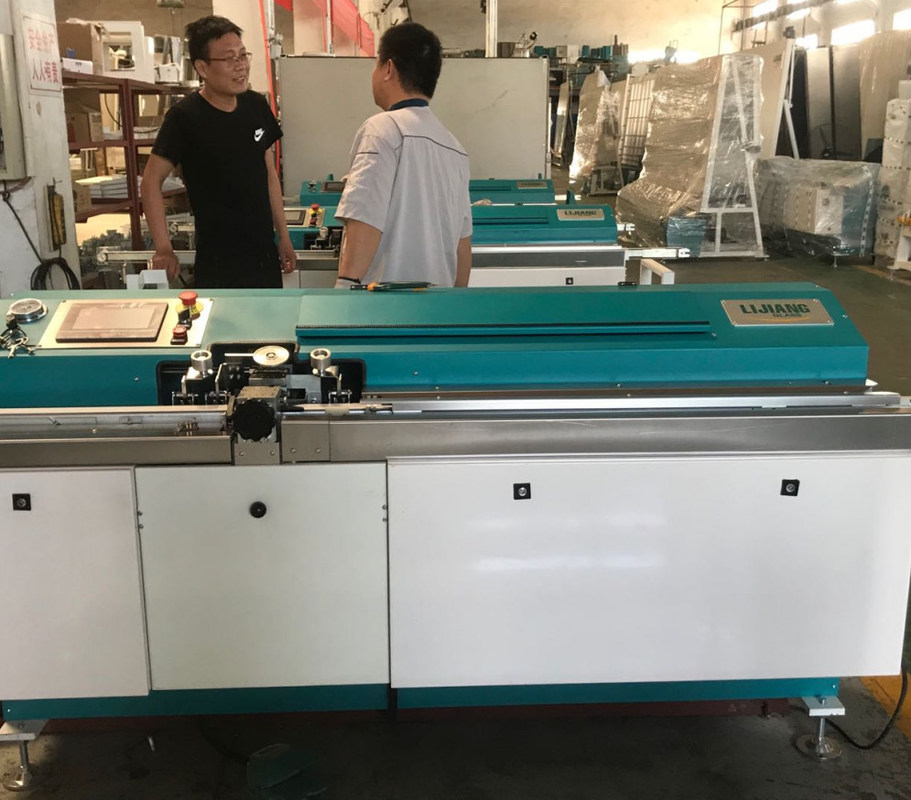

BUTYL COATING MACHINE FOR DOUBLE GLAZING GLASS 7KG DRUMP
Butyl extruder parameters
n PLC control system, touch screen interface.
n Frequency control system
n Abroad technology, pneumatic and hydraulic supercharging system.
n Automatic centering and clamping structure.

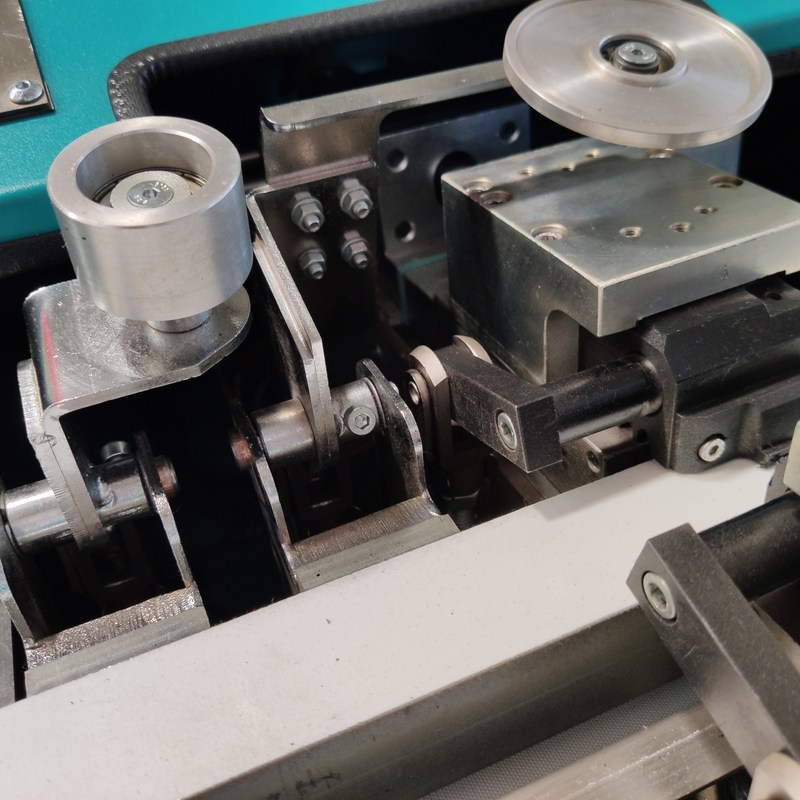

n Separate extruder head structure.
n Automatic butyl volume display function.
n Circular arc butyl sealing structure.
n Extruder head height adjustment structure
n Preheating function
n Butyl cylinder swing mechanism
n Important control parts adopt imported brand.
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America,
Mexico glass expo .Big Five In Dubai, Egpyt.
Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.
Service Team:
We have our own china domestic team and oversea service team .
Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east.
24 hours online service and local engineer available , guarantee customers got timely service and solution .
