Product Details:
|
| Name: | Molecular Sieve Filling Machine | Max Frame Szie: | 2500*2500mm |
|---|---|---|---|
| Min Frame Size: | 300*250mm | Aluminum Size: | 6A-27A |
| Air Source: | 0.65MPA | Total Power: | 1kw |
| Molecular Sieve Diameter: | 1-1.5mm | Machine Size: | 1300*1100*3600mm |
| PLC: | Germany Simens | Filling Height: | Can Adjust |
| High Light: | 27A Insulating Glass Production Line,2500*2500mm Insulating Glass Production Line,0.65MPa Double Glazing Glass Machine |
||

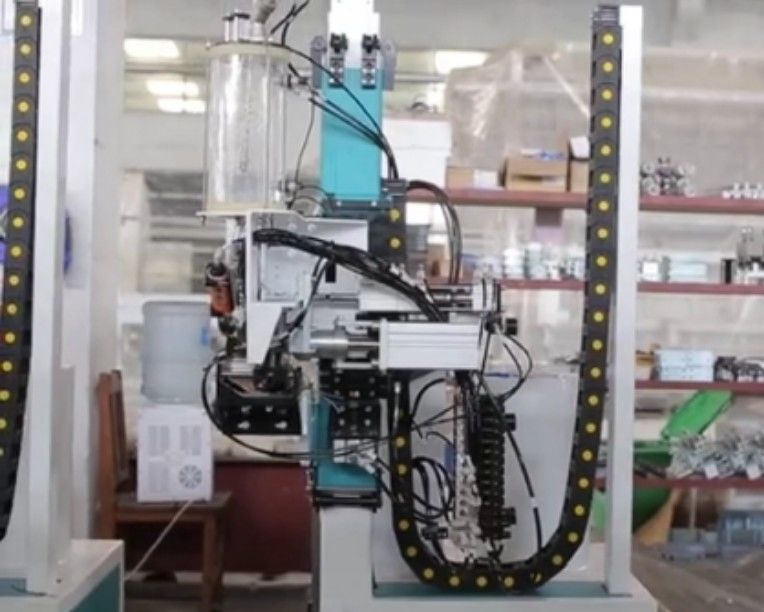

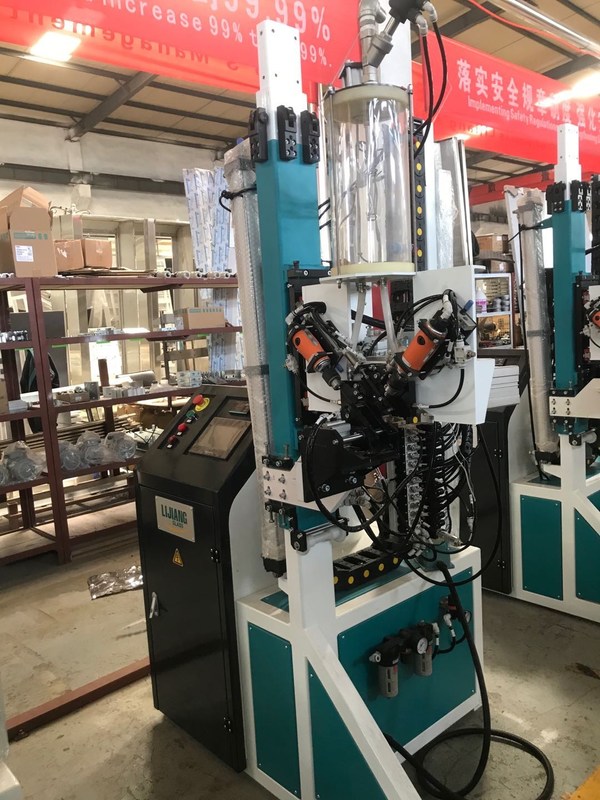

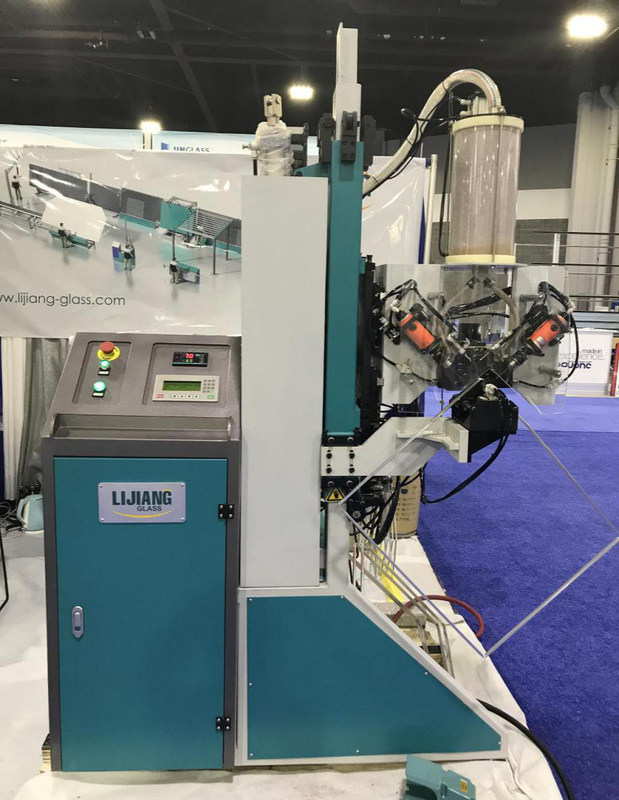

Fast speed Molecular Sieve filling machine Insulating glass machines double glass dryer machine
APPLICATION

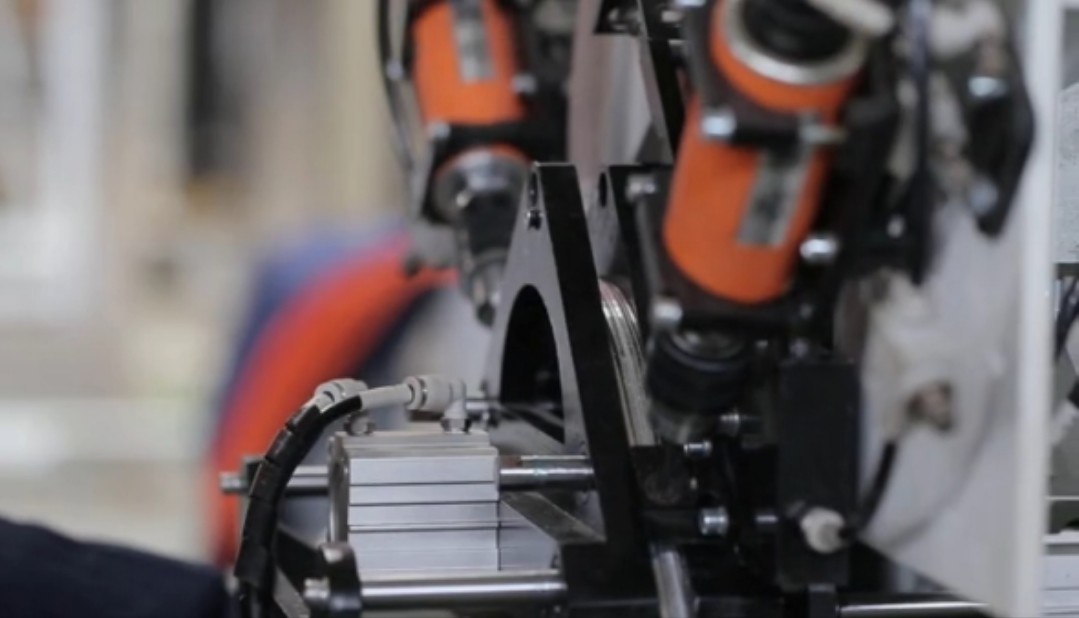

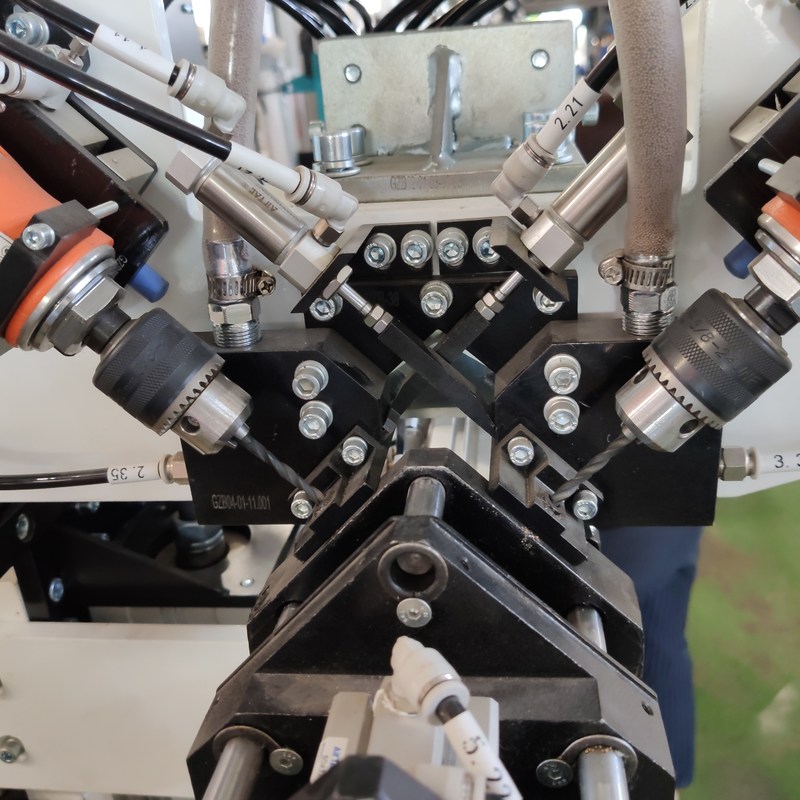

The machine can automatically achieve actions of drilling holes automatically in the insulating glass spacing frames, filling desiccant and sealant. The control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. The machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
| name | brand |
| PLC | German SIEMENS |
| Low voltage electrical apparatus | German SIEMENS |
| sensor | Korea AUTONICS |
| guide | Taiwan TBI |
| triplet | TAIWAN AIRTAC |
| Solenoid valve | TAIWAN AIRTAC |
| Gas driller | Taiwan BOA |
| Switch power | Taiwan TEND |
