Product Details:
|
| Name: | Molecular Sieve Of Insulating Glass | Size: | Diameter 0.3cm/0.5 |
|---|---|---|---|
| Characteristics: | High Strength,High Adsorption Capacity,Particle Uniformity | ||
| High Light: | glass filling machine,desiccant filler,Molecular Sieve Desiccant Filler |
||

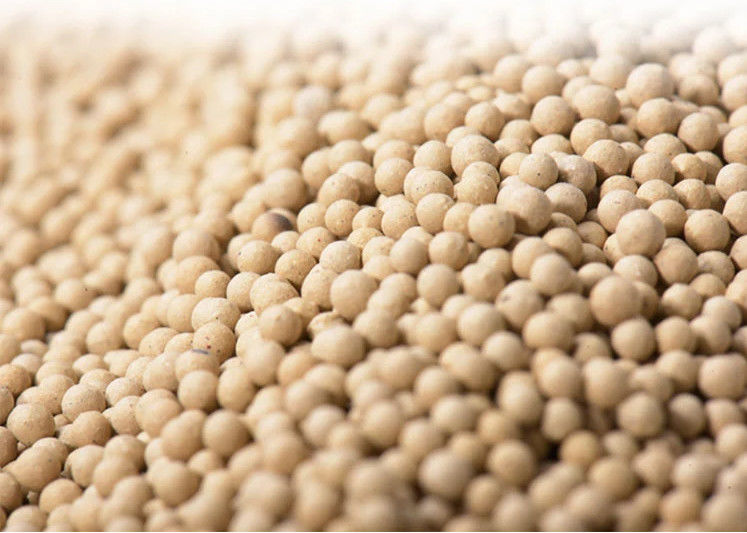

Molecular Sieve type 5A is an alkali alumino silicate; it is the calcium form of the Type A crystal structure. Type 5A has an effective pore opening of 5 angstroms (0.5 nm). It will adsorb molecules with a kinetic diameter of less than 5 Angstrom and exclude those larger.
It is especially suitable for PSA adsorber applications where it may be used for the separation of normal- and iso- paraffins (C4 to C6 species), in PSA hydrogen purification and in oxygen concentrators.
Typical Chemical Formula
0.70CaO 0.30Na2O Al2O3 2.0SiO2 4.5H2O
SiO2: Al2O3 ≈2
Typical Application
| Typical Physical Properties | ||||
| Item | Unit | 8*12mesh | 4*8mesh | |
| Bead Size | mm | 1.6-2.5 | 3.0-5.0 | |
| Bulk Density | g/ml≥ | 0.72 | 0.70 | |
| Equilibrium Water Capacity @ 25°C | wt%≥ | 21.5 | 21.5 | |
| Equilibrium N-hexane Capacity | wt%≥ | 14.0 | 14.0 | |
| Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 | |
| Crush Strength | Point contact | N≥ | 45 | 110 |
| Variation coefficient | - | 0.3 | 0.3 | |
| Attrition Rate | wt%≤ | 0.1 | 0.1 | |
| Size Qualification | %≥ | 98 | 98 | |
| Package Moisture | wt%≤ | 1.5 | 1.5 | |
| Typical Application |
| Removal of water, carbon dioxide, acetylene in air purification system |
| Normal alkane and isoalkane separation in paraffine industry |
| Oxygen, nitrogen, hydrogen deeply desiccation and purification |
| Liquefied petroleum gas, natural gas, ammonia decomposition gas and other industrial gases purification and dehydration |
| Specialized desulfurization deodorant |
| Inert gases purification and separation |
| Small PSA oxygen concentrator drying |
| Separation of aromatics |
| Dichlorodifluoromethane adsorption |
As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatic robot insulaiting glass production line and so on.

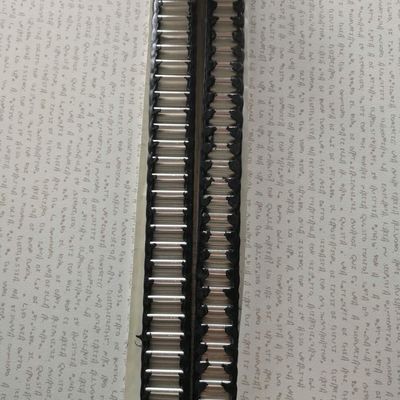

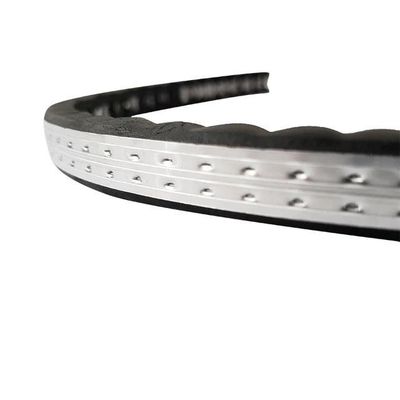

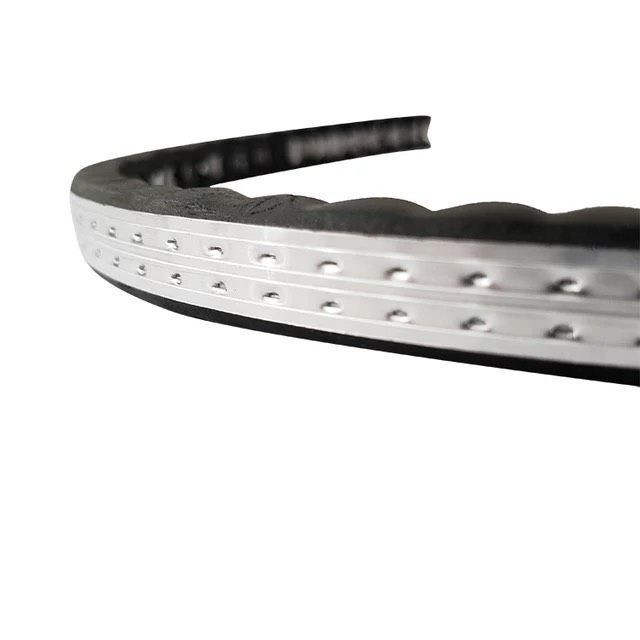

Warm Glass Spacer
is widely used to manufacturing building doors and windows,train,hollow glass,Bus hollow glass...

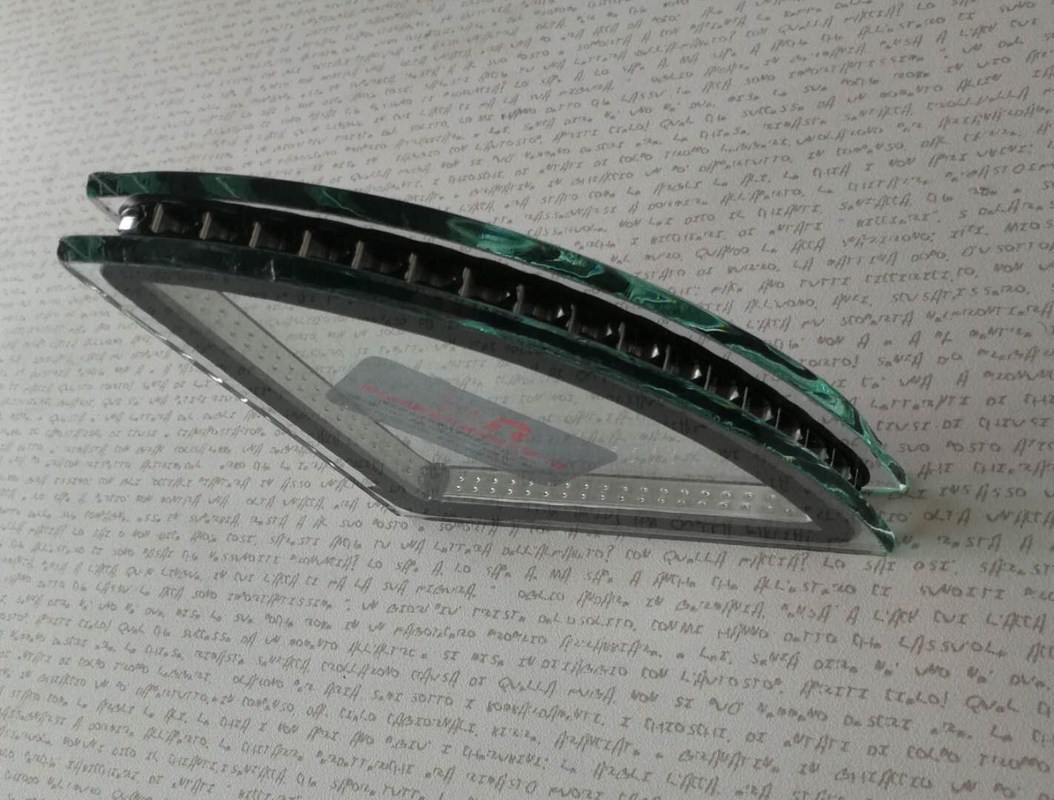

1 The unility model has the advantages of no addition of molecular sieve on the direct contact with the glass layer,and the grey/white layer molecular sieve fraction is increased about 3times,greatly enhance the moisture absorption ability of the sealing insulating glass, more durable, more reliable, more secure.
2 Production of sealing spacer type insulating glass with aging, Corrosion resistance, High temperature resistant, Have good adhesion to glass.
3 Insulating glass production and high efficiency, Less equipment investment, easy operation, heat insulation, sound insulation.
| Item | Sealing spacer for insulating glass |
| Application | Insulaitng glass sealing material |
| Colour | Siliver/Goledn/White/Black/Grey |
| Specification | 6mm-20mm, Other size can be customized |
| Delivery | EXW/FOB/CIF/CRF |
| Payment | T/T, l/C |
| Package Size | LxWxH:570x470x570 |
| 20'GP container | 144 cartons |
| size of roll | ø535x465 |
