Name: Zeolite Molecular Sieve 3A for Insulating Glass Gas Drying can be worked with Automatic desiccant filler
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: Kation003A
Availability: InStock

Home > Products > Desiccant Filling Machine >

Zeolite Molecular Sieve 3A for Insulating Glass Gas Drying can be worked with Automatic desiccant filler

glass filling machine

desiccant filler

Place of Origin:

China

Brand Name:

Kation

Model Number:

Kation003A

Request A Quote

Zeolite Molecular Sieve 3A for Insulating Glass Gas Drying can be worked with Automatic desiccant filler

Product Details

Name:

Molecular Sieve Of Insulating Glass

Size:

Diameter 0.3cm

Characteristics:

High Strength,High Adsorption Capacity,Particle Uniformity

Highlight:

glass filling machine

desiccant filler

Payment & Shipping Terms

Minimum Order Quantity

1drum

Packaging Details

paper drum or container

Delivery Time

3days

Payment Terms

L/C, T/T

PLC Automatic Molecular Sieve Filling Machine Desiccant Filler

Get Best Price

Automatic Desiccant Filling Machine Molecular Sieve AC220V 50Hz 1.8Kw

Get Best Price

Video

Manual Desiccant Filling Machine For IGU Facade Insulating Glass Processing

Get Best Price

Molecular Sieve Automatic Desiccant Filler For Glass Processing

Get Best Price

Contact Now

Product Description

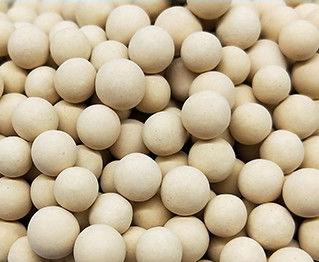

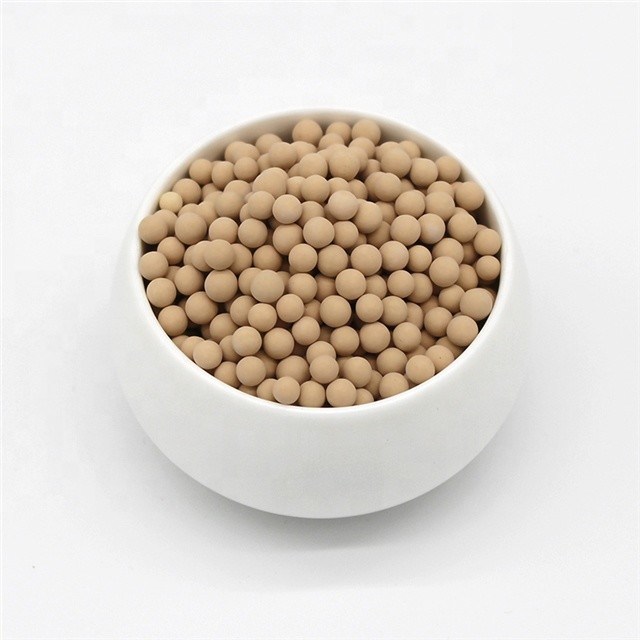

Zeolite Molecular Sieve 3A for Insulating Glass Gas Drying

3A molecular sieve have the characters of higher adsorption speed, stronger crushing and anti-contaminative resistance, more cyclic times and longer work-span. All these advantages have made it come to be the most essential and necessary desiccant in the fields of the deep drying, refinery polymerization for cracked gasses, ethylene, propylene and any other non-acidic gasses of liquids in petroleum and chemical industrials.

Product Properties

Item	Unit	Technical data
Shape		Pellet		Sphere
Diameter	mm	1.5-1.7	3.0-3.3	1.7-2.5	3.0-5.0
Size ratio up to grade	%	≥98	≥98	≥96	≥96
Bulk density	g/ml	≥0.64	≥0.64	≥0.68	≥0.68
Wear ratio	%	≤0.20	≤0.25	≤0.10	≤0.10
Crushing strength	N	≥45/cm	≥60/cm	≥30/piece	≥70/piece
Static water adsorption	%	≥20	≥20	≥20	≥20
Ethylene adsorption	%	≤3.0	≤3.0	≤3.0	≤3.0
Water content, as shipped	%	≤1.5	≤1.5	≤1.5	≤1.5

Typical Application:

Drying of unsaturated hydrocarbons (e.g. ethylene, propylene, butadien) Cracked Gas Drying Drying of natural gas, if COS minimization is essential, or a minimum co-adsorption of hydrocarbons is required. Drying of highly polar compounds, such as methanol and ethanol Drying of liquid alcohol Static, (non-regenerative) dehydration of insulating glass units, whether air filled or gas-filled. Drying of refrigerants


			Model
			3A


			Color
			Light gray


			Nominal pore diameter
			3 angstroms


			Shape
			Sphere
			Pellet


			Diameter (mm)
			1.7-2.5 (8*12mesh)
			3.0-5.0 (4*8mesh)
			1.6 (1/16 inch)
			3.2 (1/8 inch)


			Size ratio up to grade(%)
			≥98
			≥98
			≥96
			≥96


			Bulk density (g/ml)
			≥0.70
			≥0.70
			≥0.68
			≥0.68


			Wear ratio (%)
			≤0.20
			≤0.20
			≤0.40
			≤0.40


			Crushing strength (N)
			≥35/piece
			≥85/piece
			≥30/piece
			≥50/piece


			Static H2O adsorption(%)
			≥21
			≥21
			≥21
			≥21


			Dynamic capacity (%)
			≥20
			≥20
			≥20
			≥20


			Ethylene adsorption (‰)
			≤3.0
			≤3.0
			≤3.0
			≤3.0


			Water content (%)
			≤1.5
			≤1.5
			≤1.5
			≤1.5


			Typical Chemical Formula
			0.4K2O . 0.6Na2O . Al2O3 . 2SiO2 . 4.5 H2O (SiO2 : Al2O3 ≈2)


			Warranty:
			a) By National Standard GBT 10504-2008
b) Offer lifetime consultation on problems occurred



Size:

Molecular Sieveare available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6, 3.2.

Application

1) Drying and removing of CO2 from natural gas, LPG, air, inert and athmospheric gases, etc. 2) Removal of hydrocarbons, ammonia and methanol from gas streams (ammonia syn gas treating) 3) Special types are used in the air break units of buses, trucks and locomotives. 4) Packed in small bags, it may be used simply as a packaging desiccant.
