Product Details:
|
| Name: | Automatic Butyl Extruder Machine | Speed: | 5-47m/s |
|---|---|---|---|
| Temperature: | 110-140℃ | Fuction: | Butyl Coating |
| Application: | Insulating Glass Making | Squeeze Pressure: | 10-18MPa |
| Brand: | Siemens | Aluminum Spacer Width: | 6A-27A |
| Diameter Of Butyl Cylinder: | 200mm | Power: | 380V,5.7kw,50HZ |
| Dimension: | 2800*700*900mm | ||
| High Light: | hot melt butyl extruder,butyl silicone sealant |
||

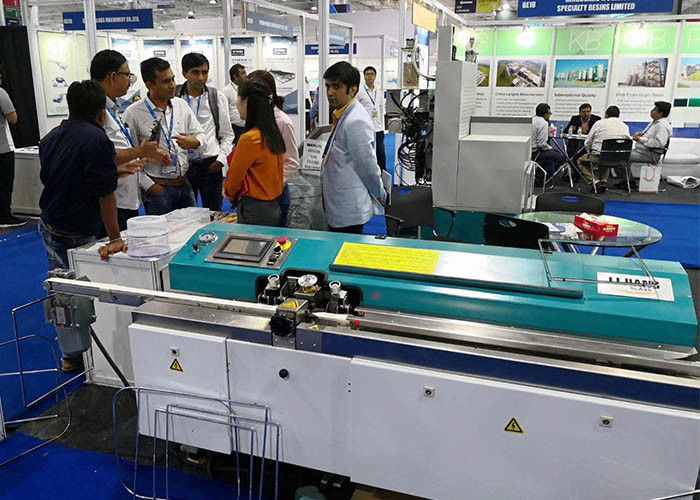

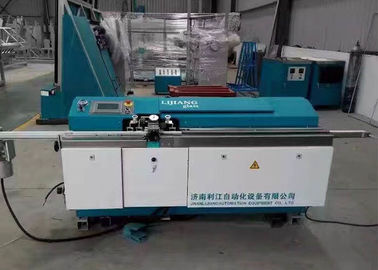

Product description of Small butyl extruder machine
Butyl sealing machine LJTB 01 is used for spreading aluminum spacer frames evenly with hot melt butyl.Butyl extruder uses large electrical control panel which makes the operation more easier than before.
Butyl extruder squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers.
Hot melt butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode.The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min.
Advantage
Details of extrusion coating machine
1.Butyl Extruder adopt PLC control system ,touch screen interface
2.Butyl Extruder Equipment can automatically adjust the amount of glue according to different speeds.
3.Butyl coating machine can be Quickly speed of warming,Up to 47m / min,improve work effect.
4.Easy to change butyl,Glue cylinder of Butyl coating equipment adopt the upright structure
5.Butyl extruder machine adopt Siemens brand,stable performance.
6.Butyl extruder is suitable for square, rectangular, shaped, arc and kinds of aluminum frames.
7.Automatically filter debris, keep spreading evently.
8.Automatically alarm system, reminding adding butyl
Technical Data of butyl spreading machine
| Diameter of butyl cylinder | 20mm |
| Speed | 5-47m/min |
| Aluminum spacer width | 6A-27A |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Air pressure | >0.6MPa |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Dimension | 2800*700*900mm |
| Total power | 380V, 5KW, 50HZ |
Related product
Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
• Imported pneumatic and hydraulic supercharging system
Technical data
|
Squeeze pressure |
10-18MPa |
|
Temperature |
110~140℃ |
|
Aluminum spacer width |
6A-27A |
|
Speed |
0-40m/min |
|
Diameter of butyl cylinder |
200mm |
|
Air supply |
0.4m³/min |
|
Air pressure |
≥0.6MPa |
|
Total power |
380V, 5KW,50HZ |
|
Dimension |
2600×680×1100mm(L×W×H) |
|
weight |
650kg |
