HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE
HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE

Large Image :  HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE

Product Details:
Place of Origin: CHINA
Brand Name: Lijiang
Certification: CE UL
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: WOODEN BOX OR PLASTIC FILM
Delivery Time: 3days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 20 sets per month

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE

Description
Name: Butyl Extruder Machine Aluminum Spacer Width: 6A-27A
Coating Pressure: 10-18mpa Coating Temperature: 110-140 °
Total Power: 5.7kw Machine Size: 2800*700*900mm
Coating Speed: 0-47m/min Butyl Plug Weight: 7kg
Electricity Compoents: Germany Simens
High Light:

hot melt butyl extruder

,

butyl silicone sealant

HOT MELT COATING MACHINE FOR SPACER ,7KG DRUMP



Butyl extruder machine

working characteristics

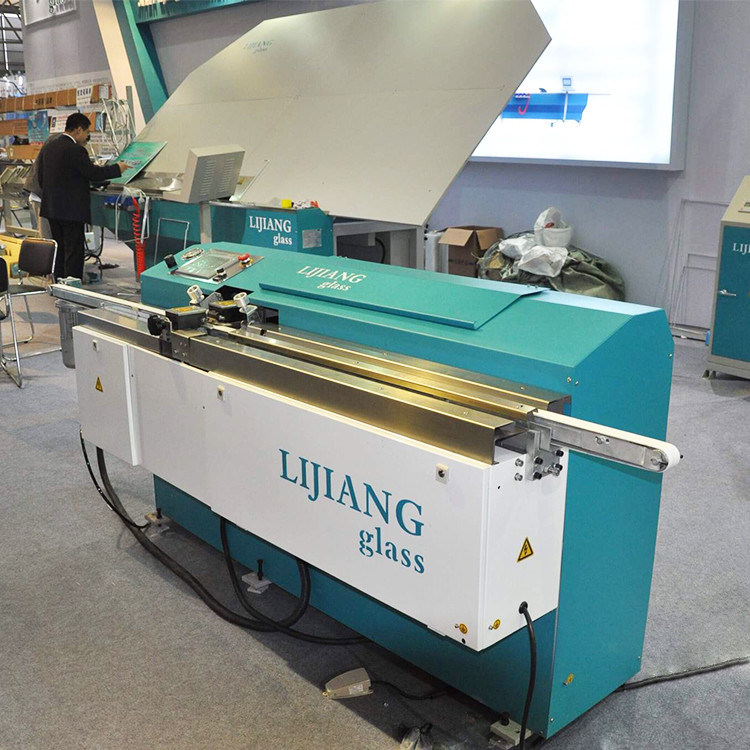

1,LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl.



2,The butyl extruder uses large electrical control panel which makes the operation more easier than before.



3,The conveyor of aluminum is controlled by frequency converter.



4,The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now.



5,The butyl extruder is very popular with energy-saving.



6,Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable.



7,The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier.

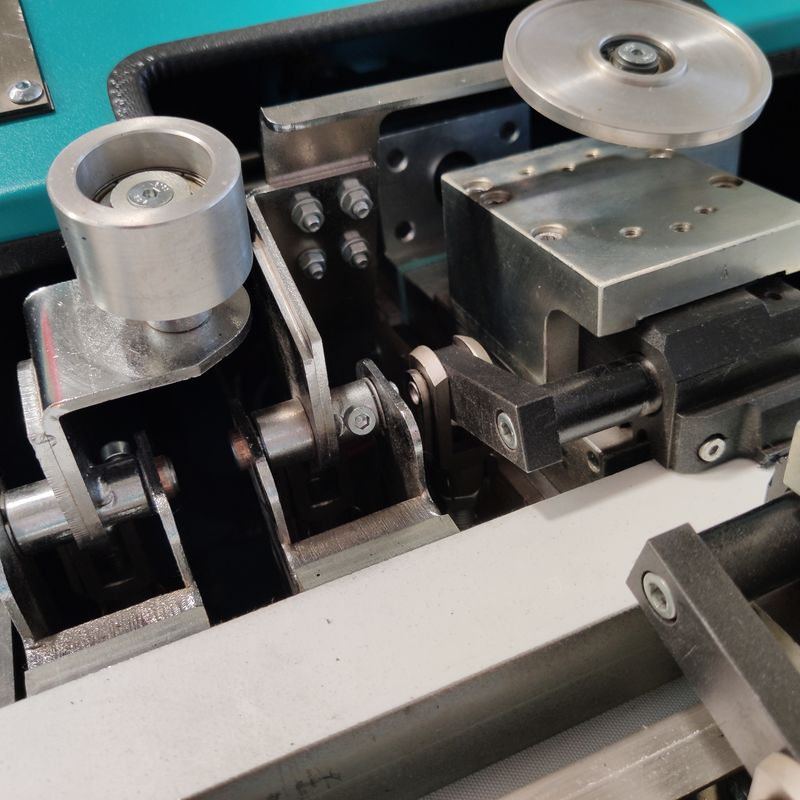

8,The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers.



9,Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode





Butyl extruder parameters



Name Brand Original
PLC KINCO China
Valve HAWE German
Low voltage electrical apparatus SIEMENS German
Hydraulic and pneumatic supercharging system MAXIMATOR German
Frequency converter KINCO China

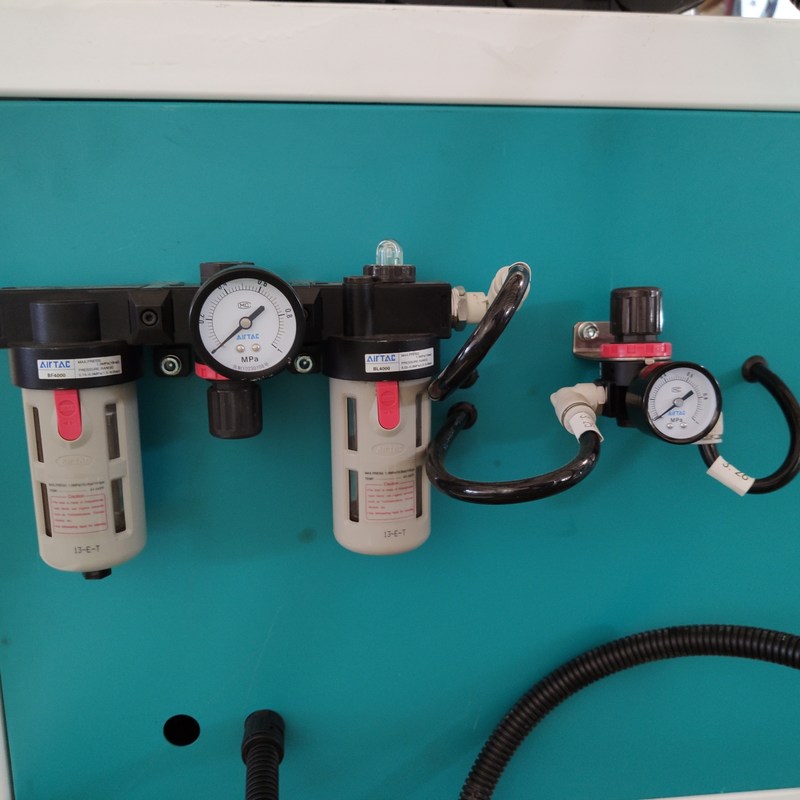

Pneumatic components(cylinder/valve) ARTAC Taiwan
Quick exhaust valve/Vacuum generator SMC Japan SMC
Travel light OMRON Japan
Optical fiber OMRON Japan





Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg



































HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 0HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 1

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 2

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 3





HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 4

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 5

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 6

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 7

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 8

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 9

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 10

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 11







We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years













HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 12

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 13

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 14

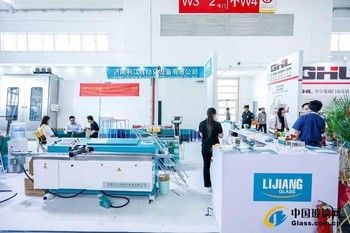

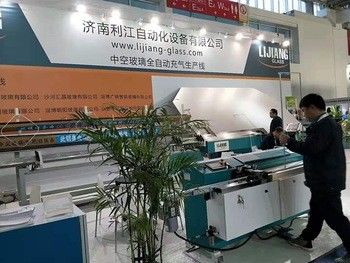

National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America,



Mexico glass expo .Big Five In Dubai, Egpyt.



Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 15







Advantages of Lijiang Products



 we are producing all DGU machines : Vertical Insulated Glass Produce Line for double glass production line, Auto Sealing Robot for double glass production line, Sealant Spreading Machine for double glass production line, Low-E Glass Washing &Drying Machine for double glass production line, Smart Edge Deleting Machine for double glass production line, Automatic Spacer Bending Machine for double glass production line, Automatic Desiccant Filling Machine for double glass production line, Butyl Extruder Machine for double glass production line, Glass Edge grinding Machine for double glass production line, Spacer Cutting Machine for double glass production line, Sealing gun Freezer for double glass production , Rotated Sealant Spreading Table double glass sealing, Argon Gas Filling Machine double glass , Semi-auto Aluminum Frame, Spacer Transfer Machine for double glass production line, Molecular Sieve Filling Machine double glass production line, Glass Lifting Table double glass production line, Glass Loading /unloading Device for double glass production line, Water Treatment System for double glass production line (Economy), Water Treatment System double glass production line (Advanced), Auto Seaming Machine



HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 16

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 17





HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 18



Service Team:



We have our own china domestic team and oversea service team .

Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east.

24 hours online service and local engineer available , guarantee customers got timely service and solution .



HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE 19
