Product Details:
|
| Product Name: | Butyl Extruder Machine | Model: | LJTB01 |
|---|---|---|---|
| Glue Barrel: | 7 Kg | Coating Speed: | 47m/min |
| Coating Belts: | Non Stick | Warranty: | 1 Year |
| PLC: | Siemens | ||
| High Light: | hot melt butyl extruder,butyl silicone sealant |
||

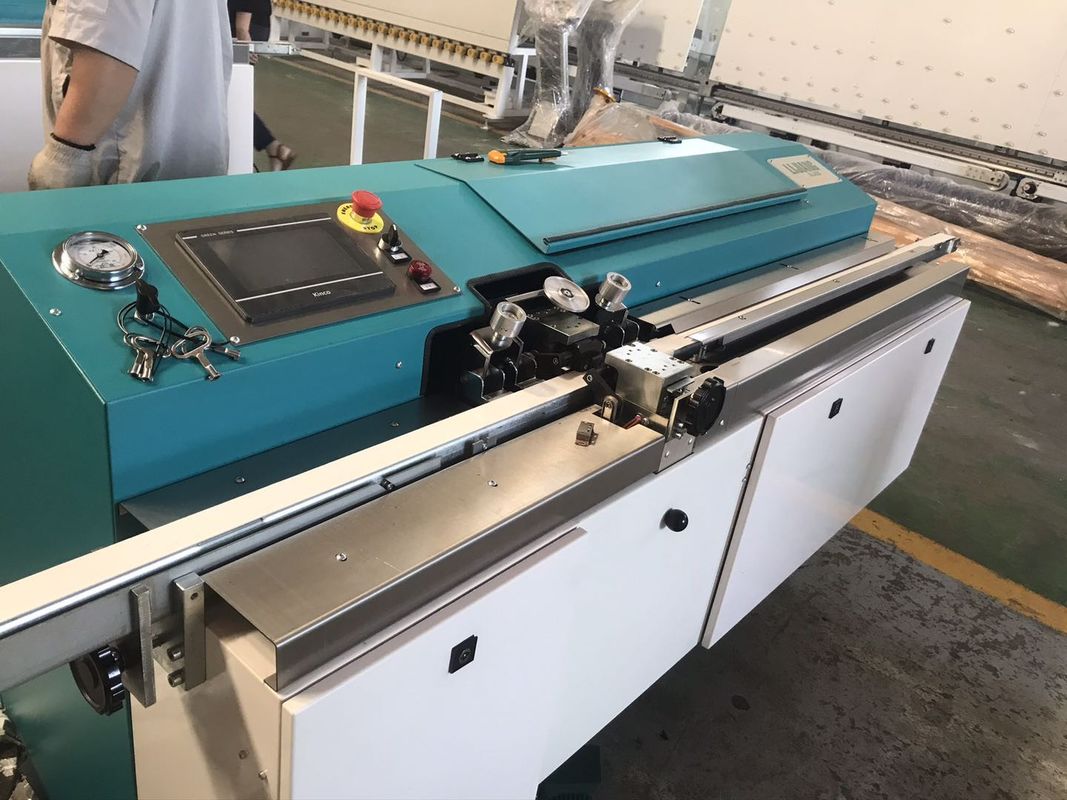

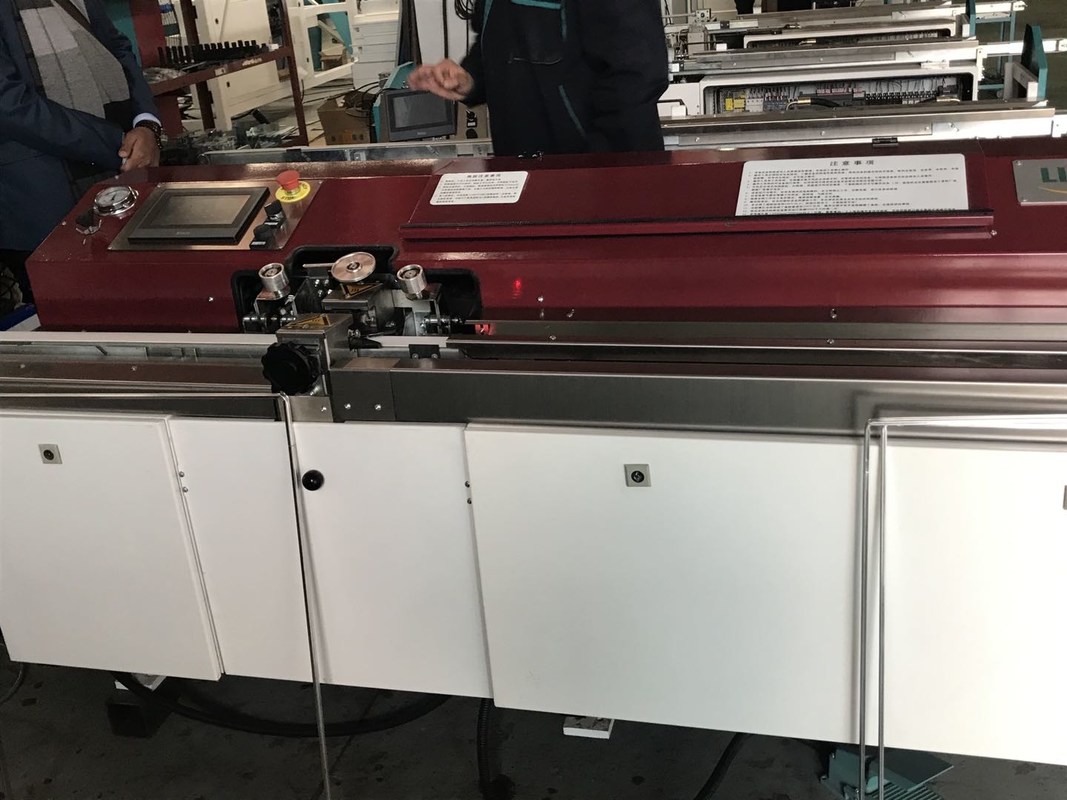

Automatic New Butyl Extruder Machine With 7 Kg Butyl Sealants Barrel
Butyl extruder machine is one of sealants spreading machine, it uses butyl glue, the first sealants to seal the sides of the spacer frames. The glue butyl extruder machine in Lijiang glass has three models, LJTB01, LJTB02 and LJTB03. LJTB01 is the new butyl extruder machine which has the fast speed to coating butyl glue on spacer sides. LJTB02 is the common butyl extruder machine, it is the first one butyl coating machine in automatically. LJTB03 is the full automatically butyl extruder machine, which do not use hands when coating butyl glue, can connect with spacer transfer machine.
The introduce of LJTB01 new butyl extruder machine :
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Main feature :
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands
• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will
• Fast coating speed, can up to 47m/min
• Stable pressure and even coating
• Saving glue. The amount of glue on both sides can reach 4g / m
• Big glue barrel, 200L. (Optional)
Introduction of full automatic butyl extruder machine :
Fully automatic butyl extruder machine can line with the insulating glass assembly line to realize fully automatic production, and the whole coating process does not need manual work. This automatic butyl extruder machine consists of pressing wheel system (linear pressing wheel, arc pressing wheel), centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotation mechanism, support mechanism, frame unit, pneumatic system, hydraulic system and control system.
Machine features:
(1) There is the alarm device, it will automatically alarm when there is no glue (there will be a prompt on the touch screen);
(2) Timing heating function, workers can set the start-up time of the equipment in advance, the equipment will automatically start the system heating before the official work quickly.
(3) Automatically adjust the distance between front and back glue nozzles according to the width of aluminum spacer.
(4) The transmission motor is controlled by servo motor, and the transmission speed can reach up to 50m / min.
(5) Large frame support mechanism, to prevent large-scale aluminum frame from shaking by a wide margin at the corner, resulting in frame deformation.
(6) Simple, stable and reliable operation, precise coating effect, fast coating speed and high production efficiency.
