Product Details:
|
Name: | Butyl Rubber Coating | Condition: | NEW MACHINE |
---|---|---|---|
After-sales Service Provided: | Engineers Service | Product Name: | Automatic Butyl Extruder Machine |
Warranty: | 1 Year | Application: | Making Double Glazing Glass Products Machine |
Heating Time: | 15 Mins | Voltage: | 380V 50Hz 3P |
High Light: | 47m/Min Butyl Extruder Machine,Glass Butyl Extruder Machine,47m/Min hot melt butyl extruder |

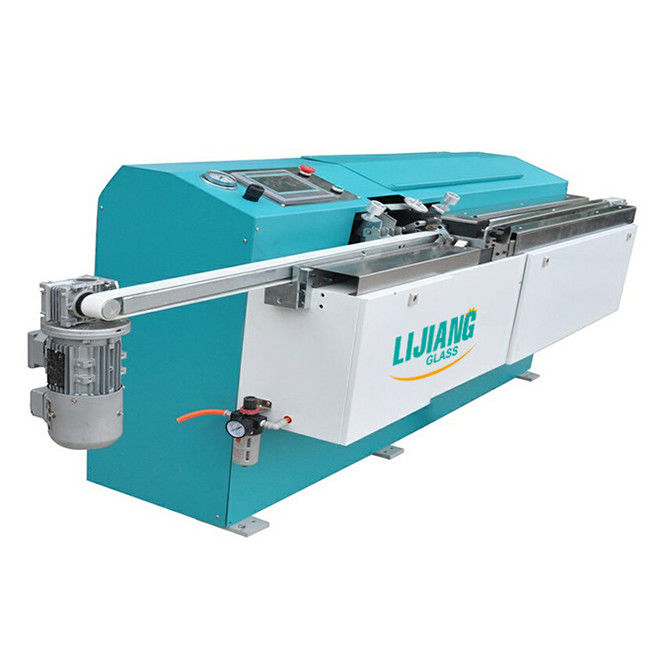

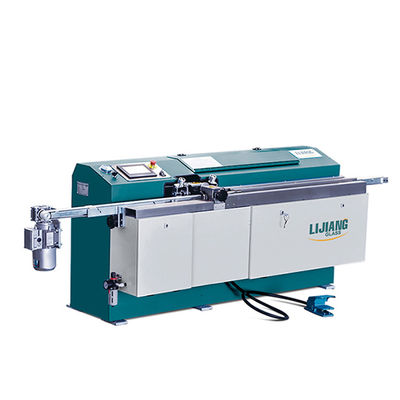

Butyl Rubber Coating is a special equipment for the production of making double glazing glass. The main role is to melt butyl rubber evenly on the aluminum frame.It is the special equipment in the aluminum groove type insulating glass production and processing technology. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.
Main performance features:
1.PLC control system, touch screen interface
2. Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust,and the integrated control of quick opening valve ensures the consistency of double-sided gluing
3. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m
4.The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
5. Unique design structure, with automatic exhaust function, to ensure continuous glue application
6.Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning
7.Fast preheat, improve work efficiency
8.with preheating function
9.Quickly coating speed,can up to 47m/min
10. It is convenient and practical to use movable vertical and horizontal sealant
11. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently
12. Touch screen operation, simple and practical
13. The rubber cylinder adopts pull-up structure, which is convenient for operation
Specification parameters:
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Glue thickness | 0.3-0.5mm |
Glue width | 3.5mm |
Aluminum spacer width | 6A - 27A |
Speed | 5-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5.7KW,50HZ |
Dimension | 2800×700×900mm(L×W×H) |
weight | 650kg |
Electrical parameters :
Name | Original | Brand |
PLC | China | KINCO |
Valve | German | HAWE |
Low voltage electrical apparatus | German | SIEMENS |
Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
Frequency converter | China | KINCO |
Pneumatic components | Taiwan | ARTAC |
Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
Travel light | Japan | OMRON |
Optical fiber | Japan | OMRON |
Optional function :
This machine with big glue barrel with 200L butyl glue, the new butyl extruder machine will save a lot time of adding glues.
Related product

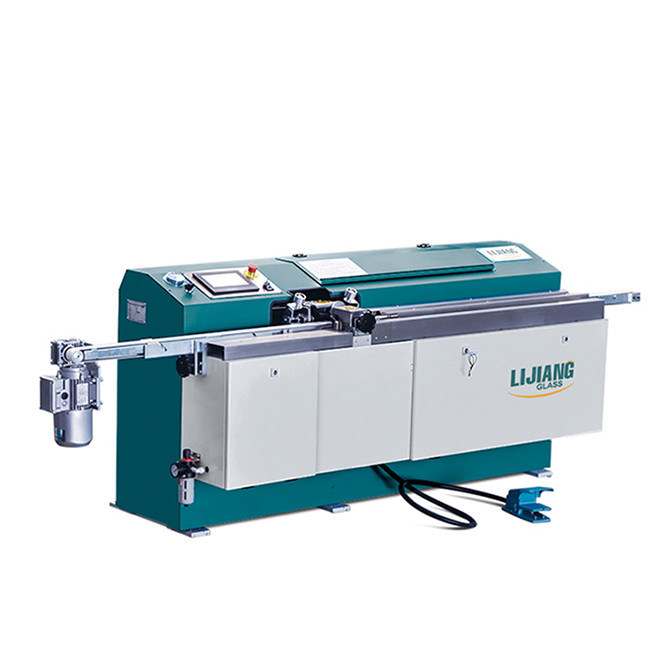

Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 6A-27A |
Speed | 0-40m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5KW,50HZ |
Dimension | 2600×680×1100mm(L×W×H) |
weight | 650kg |
