Aluminum Spacer Bar Horizontal Butyl Glass Coating Machine

Aluminum Spacer Bar Horizontal Butyl Glass Coating Machine

Butyl Glass Coating Machine

Spacer Glass Coating Machine

Butyl extrusion coating machine

Place of Origin:

China

Brand Name:

Lijiang

Certification:

CE

Model Number:

LJGZ2020

Contact Us
Request A Quote
Product Details
Name:
Aluminum Spacer Bar Horizontal Butyl Extruder Glass Coating Machine
After-sales Service Provided:
Field Installation
Warranty:
12 Months
Extruding Pressure:
110-160℃, 10-15Mpa
Highlight:

Butyl Glass Coating Machine

,

Spacer Glass Coating Machine

,

Butyl extrusion coating machine

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
6000-7000usd
Packaging Details
WOODENCASE
Delivery Time
30-40WORKING DAYS
Payment Terms
L/C, D/A
Supply Ability
20SET/MONTH
Product Description
Aluminum Spacer Bar Horizontal Butyl Extruder Glass Coating Machine

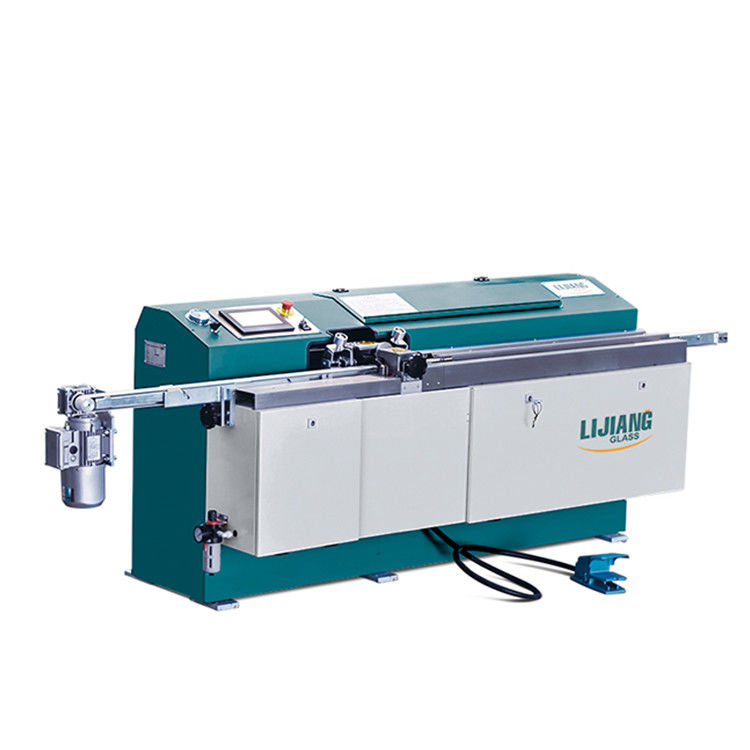

 Aluminum Spacer Bar Horizontal Butyl Glass Coating Machine 0

LJTB01 butyl type extruder is used to spread aluminum frame spacers evenly using hot melt butyl. The equipment uses a large electric control panel, making operation easier. Aluminum conveyors are controlled by a frequency converter, the speed can be adjusted from 0 m / min to 47 m / min, which is the fastest speed in China. This is very popular for energy savings. The crimping system adopts pneumatic and hydraulic supercharging system, making the crimping pressure more stable. The discharge cylinder can be easily refilled with butyl using a vertical rotary support system. It can extend the life of the crimping system and set the heating time in 24 hours with electric and air pressure. The distance of the crimping head can be adjusted automatically according to different aluminum spacers. This machine has achieved technology all over the world with perfect function features and stable operation modes.

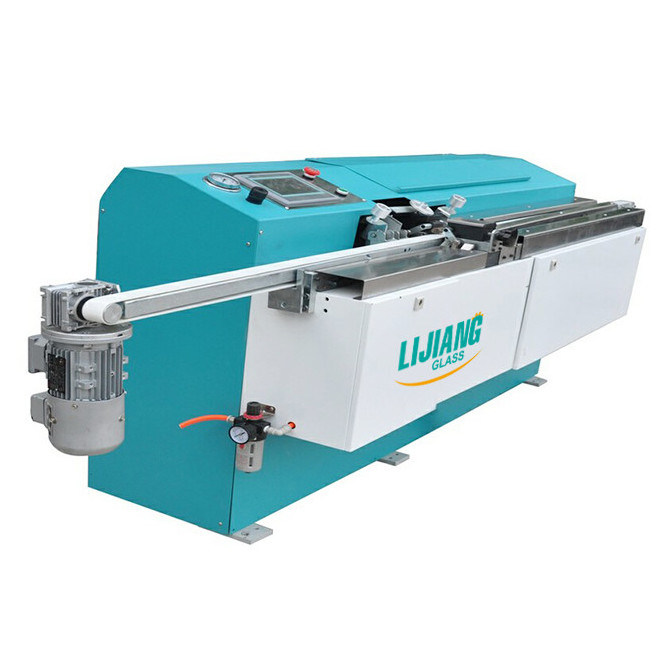

Aluminum Spacer Bar Horizontal Butyl Glass Coating Machine 1
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg
Aluminum Spacer Bar Horizontal Butyl Glass Coating Machine 2
Machine Details
Automatic butyl extruder machine is used to spread the aluminum spacer frame (and other spacers) evenly with hot melted butyl. Butyl extruders use large electrical control panels that can operate more easily than ever before. The speed can be adjusted from 0m / min to 47m / min, this is the fastest speed in China so far. Butyl emulsifiers are very popular for energy saving. The crimping system uses German pneumatic and hydraulic supercharging systems, which makes the crimping pressure more stable. Butyl extrusion has achieved worldwide technology with full functionality and well-known spare parts features.
Aluminum Spacer Bar Horizontal Butyl Glass Coating Machine 3
Aluminum Spacer Bar Horizontal Butyl Glass Coating Machine 4

Company information

LIJIANG GLASS is located in the beautiful spring city of Jinan. A company that integrates research, development, sales, and service of glass processing equipment. Due to its proximity to the Beijing-Shanghai high-speed train, it is very convenient for transportation.


The company is committed to building high-end insulated glass machinery equipment, learning from well-known experts, establishing R & D centers, cooperating with well-known companies at home and abroad, and importing advanced technology. Currently, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known companies. Since the establishment of the company, our products have been exported to Europe, America, South America, Middle East, Southeast Asia, India, about 30 countries and regions. At the same time, we cooperated with famous domestic research institutes such as North China Industrial Group, Shandong University, etc. to constantly improve the level of technical research. So far, we have been independently producing the vertical automatic IG production line with filling gas, vertical IG sealing robot, automatic spacer bending machine, automatic desiccant filling machine, and new fully automatic butyl extruder. It was Its technology and quality reached the highest top level in China


With the rapid development of the insulating glass industry, LIJIANG looks forward to creating a win-win situation and jointly creating a new world.
