Aluminum Spacer CNC Butyl Coating Machine For Insulating Glass

Aluminum Spacer CNC Butyl Coating Machine For Insulating Glass

CNC Butyl Coating Machine

Spacer Butyl Coating Machine

CNC hot melt butyl extruder

Place of Origin:

China

Brand Name:

Lijiang

Certification:

CE

Model Number:

LJGZ2020

Contact Us
Request A Quote
Product Details
Dimension(L*W*H):
600*680*1100mm
Name:
Aluminum Spacer CNC Butyl Coating Machine For Processing Insulating Glass
Warranty:
1year
Color:
As Requirement
Highlight:

CNC Butyl Coating Machine

,

Spacer Butyl Coating Machine

,

CNC hot melt butyl extruder

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
6000-7000usd
Packaging Details
WOODENCASE
Delivery Time
30-40WORKING DAYS
Payment Terms
L/C, D/A
Supply Ability
20SET/MONTH
Product Description
Aluminum Spacer CNC Butyl Coating Machine For Processing Insulating Glass



The LJTB01 type of butyl extruder is used to spread the aluminum spacer frame evenly using hot melt butyl. The equipment uses a large electrical control panel, which facilitates operation. The aluminum conveyor is controlled by a frequency converter, the speed can be adjusted from 0m / min to 47m / min, which is the fastest speed in China. It is very popular for saving energy. The pressing system adopts pneumatic and hydraulic supercharging system, which makes the pressing pressure more stable. Dispensing cylinders can be easily replaced with butyl using a vertical swivel bracket system. You can extend the life of the pressing system and set the heating time to 24 hours with electric and air pressure. The distance of the crimping head can be adjusted automatically according to the different aluminum spacers. This machine has achieved worldwide technology with its perfect operating characteristics and stable operating mode.

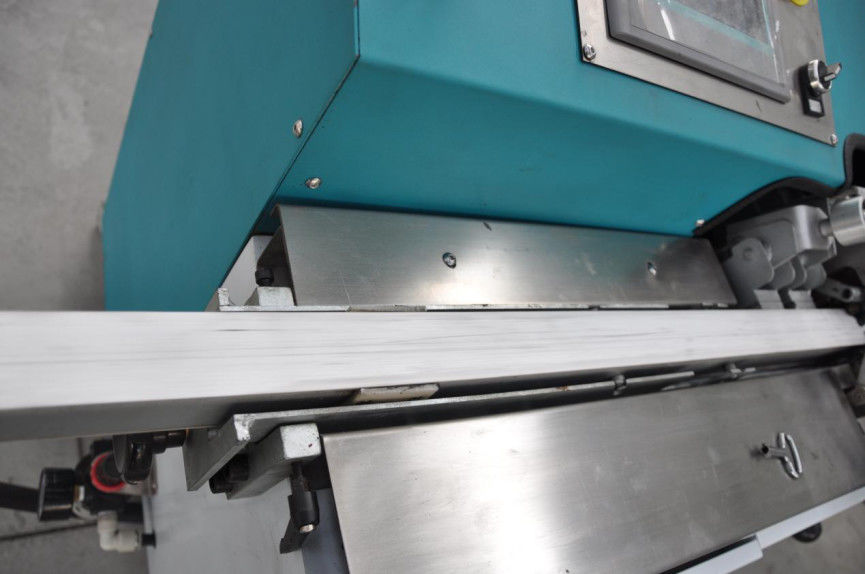

Aluminum Spacer CNC Butyl Coating Machine For Insulating Glass 0

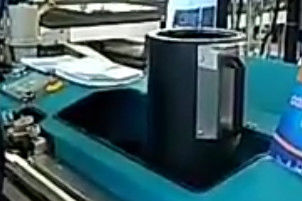

Aluminum Spacer CNC Butyl Coating Machine For Insulating Glass 1
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg
Aluminum Spacer CNC Butyl Coating Machine For Insulating Glass 2
Machine Details
Automatic butyl extruder machine is used to spread aluminum intermediate frame (and other spacers) evenly with hot melt butyl. Butyl extruder uses a large electric control panel that can work much easier than before. The speed can be adjusted from 0m / min to 47m / min, it is the fastest speed in China to date. Butyl extruders are very popular for energy saving. Clamping system adopts German pneumatic and hydraulic supercharging system, making the clamping pressure more stable. Butyl extruder has reached the technology all over the world with its full function and famous spare parts features.
Aluminum Spacer CNC Butyl Coating Machine For Insulating Glass 3
Aluminum Spacer CNC Butyl Coating Machine For Insulating Glass 4
