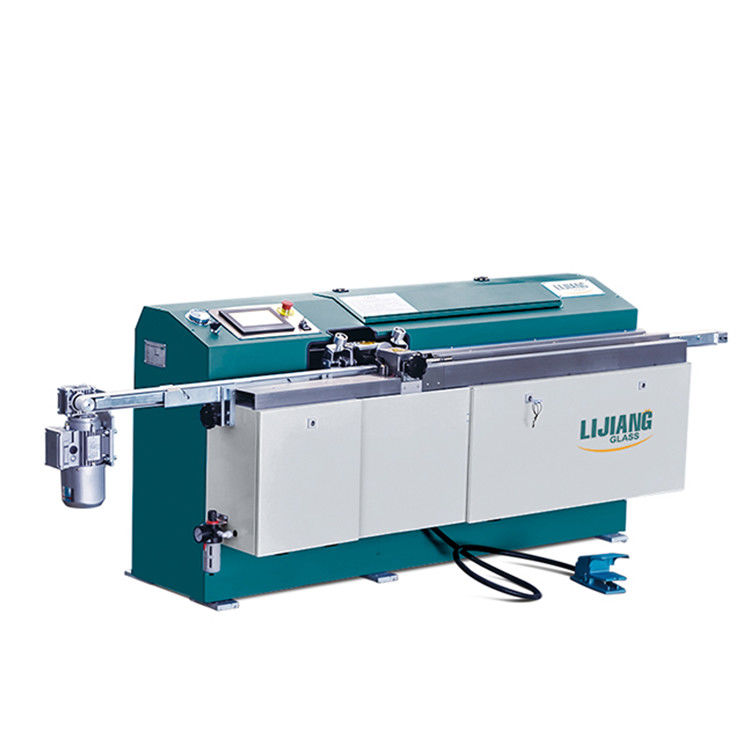

Insulated Glass Butyl Sealant Coating Machine Butyl Rubber Tape Coating Machine Butyl Extruder

The LJTB01 butyl extruder type is used to evenly spread the aluminum melt frame using hot melt butyl. The equipment uses a large electrical control panel to make the process easier. The aluminum conveyor is controlled by frequency converter, the speed can be adjusted from 0m / min to 47m / min, which is the fastest speed in China. It is very popular for energy saving. Clamping system adopts pneumatic and hydraulic supercharging system, making clamping pressure more stable. Distribution rollers can be easily filled with butyl using a vertical rotary support system. It can prolong the life of the clamping system and adjust the heating time with electric and air pressure within 24 hours. The distance of the crimping head can be adjusted automatically for different aluminum spacers. This machine has reached the technology all over the world with its excellent function and stable working mode.

|
Squeeze pressure
|
10-18MPa
|
|
Temperature
|
110~140℃
|
|
Aluminum spacer width
|
4-30mm
|
|
Speed
|
0-47m/min
|
|
Diameter of butyl cylinder
|
200mm
|
|
Air supply
|
0.4m³/min
|
|
Air pressure
|
≥0.6MPa
|
|
Total power
|
380V, 5KW, 50HZ
|
|
Dimension
|
2600×680×1100mm(L×W×H)
|
|
Weight
|
650kg
|

Machine Details
The automatic butyl extruder machine is used to spread the aluminum spacer frame (and other spacers) evenly with hot melt butyl. The butyl extruder uses a large electrical control panel that can operate much more easily than before. The speed can be adjusted from 0m / min to 47m / min, it is the fastest speed in China to date. Butyl extruders are very popular for saving energy. The crimping system adopts a German pneumatic and hydraulic supercharging system, which makes the crimping pressure more stable. The butyl extruder has reached the technology worldwide with its full function and the characteristics of famous spare parts.
Company information
LIJIANG GLASS is located in the beautiful spring city of Jinan. A company that integrates research, development, sales, and service of glass processing equipment. Due to its proximity to the Beijing-Shanghai high-speed train, it is very convenient for transportation.
The company is committed to building high-end insulated glass machinery equipment, learning from well-known experts, establishing R & D centers, cooperating with well-known companies at home and abroad, and importing advanced technology. Currently, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known companies. Since the establishment of the company, our products have been exported to Europe, America, South America, Middle East, Southeast Asia, India, about 30 countries and regions. At the same time, we cooperated with famous domestic research institutes such as North China Industrial Group, Shandong University, etc. to constantly improve the level of technical research. So far, we have been independently producing the vertical automatic IG production line with filling gas, vertical IG sealing robot, automatic spacer bending machine, automatic desiccant filling machine, and new fully automatic butyl extruder. It was Its technology and quality reached the highest top level in China
With the rapid development of the insulating glass industry, LIJIANG looks forward to creating a win-win situation and jointly creating a new world.
