IG Window Glass Horizontal Butyl Coating Extruder

IG Window Glass Horizontal Butyl Coating Extruder

Horizontal Butyl Coating Extruder

IG Butyl Coating Extruder

IG extrusion coating machine

Place of Origin:

China

Brand Name:

Lijiang

Certification:

CE

Model Number:

LJGZ2020

Contact Us
Request A Quote
Product Details
Total Power:
380V, 5KW, 50HZ
Name:
Window Glass Horizontal Butyl Coating Extruder Insulating Glass Machine
After-sales Service Provided:
Field Maintenance And Repair Service
Highlight:

Horizontal Butyl Coating Extruder

,

IG Butyl Coating Extruder

,

IG extrusion coating machine

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
6000-7000usd
Packaging Details
WOODENCASE
Delivery Time
30-40WORKING DAYS
Payment Terms
L/C, D/A, T/T
Supply Ability
20SET/MONTH
Product Description

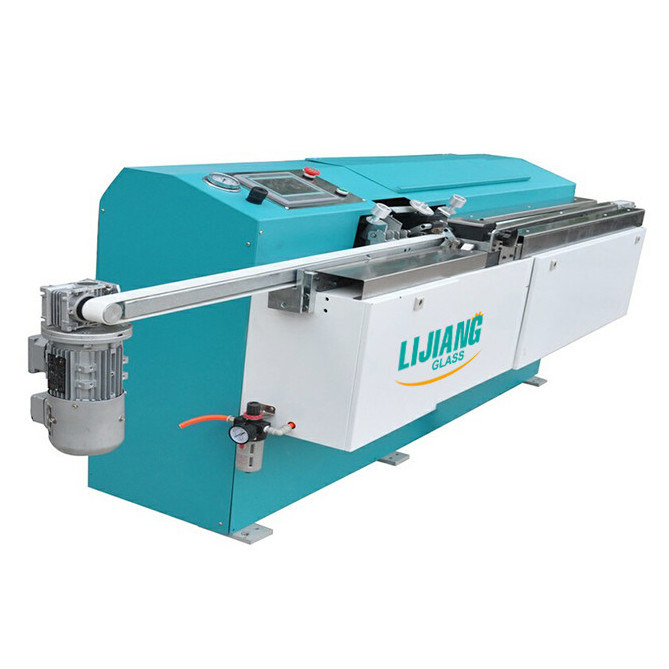

Window Glass Horizontal butyl coating extruder insulating glass machine

 IG Window Glass Horizontal Butyl Coating Extruder 0

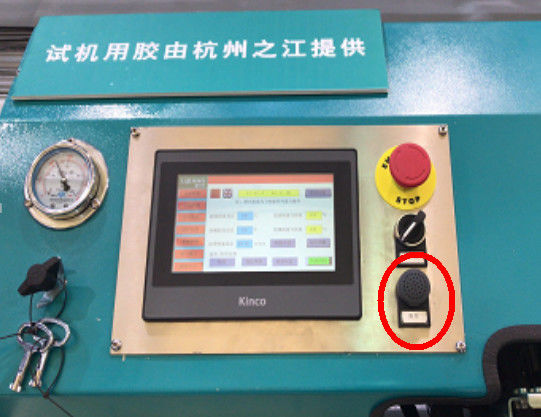

The LJTB01 butyl extrusion type is used to spread the aluminum separator frame evenly with the hot melting butyl. The equipment uses a large electrical control panel, which makes the operation easier. The aluminum conveyor is controlled by frequency converter, the speed can be adjusted from 0m / min to 47m / min, which is the fastest speed in China. It is very popular for saving energy. The crimping system adopts pneumatic and hydraulic charging system, which makes the crimping pressure more stable. The dispensing cylinders can be easily regenerated with the butyl by using a vertical rotary support system. It can extend the life of the crimping system and adjust the heating time within 24 hours by electric and air pressure. Crimping head distance can be adjusted automatically according to different aluminum spacers. This machine has reached technology all over the world with its advantages of perfect function and stable operating mode.
IG Window Glass Horizontal Butyl Coating Extruder 1
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg
IG Window Glass Horizontal Butyl Coating Extruder 2
Machine Details
Automatic butyl extruder machine is used to spread the aluminum spacer frame (and other spacers) evenly with hot melt butyl. Butyl extruder uses a large electric control panel that can operate much easier than before. Speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China to date. Butyl extruders are very popular for saving energy. The crimping system adopts German pneumatic and hydraulic supercharging system, making the crimping pressure more stable. Butyl extruder has reached technology all over the world with its full function and the characteristics of famous spare parts.
IG Window Glass Horizontal Butyl Coating Extruder 3
IG Window Glass Horizontal Butyl Coating Extruder 4

Company information

LIJIANG GLASS is located in the beautiful spring city of Jinan. A company that integrates research, development, sales, and service of glass processing equipment. Due to its proximity to the Beijing-Shanghai high-speed train, it is very convenient for transportation.


The company is committed to building high-end insulated glass machinery equipment, learning from well-known experts, establishing R & D centers, cooperating with well-known companies at home and abroad, and importing advanced technology. Currently, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known companies. Since the establishment of the company, our products have been exported to Europe, America, South America, Middle East, Southeast Asia, India, about 30 countries and regions. At the same time, we cooperated with famous domestic research institutes such as North China Industrial Group, Shandong University, etc. to constantly improve the level of technical research. So far, we have been independently producing the vertical automatic IG production line with filling gas, vertical IG sealing robot, automatic spacer bending machine, automatic desiccant filling machine, and new fully automatic butyl extruder. It was Its technology and quality reached the highest top level in China


With the rapid development of the insulating glass industry, LIJIANG looks forward to creating a win-win situation and jointly creating a new world.
