Aluminum Frames Glue Coating 7KW Butyl Extruder Machine

Butyl glue automatic coating can be controlled for aluminum frames

LJTB 02 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation more easier than before. After the machine is opened and installed, it is placed in a certain position. Install the adjusting bolts on the six bottom corners of the machine, and make a pit in the center of the front foot. Adjust the height of the bolt to adjust the working table of the machine to a horizontal state.Install the motor on the motor seat on the transfer beam, adjust the belt tension bolt from the driving wheel to make the belt force uniform, to ensure that the belt will not run off when the transmission. Connect the power cord of the motor. The power cord with three cores in the middle of two power cords and the fan of the motor is connected to the middle U/V/W position of the terminal

Germany Maximator Cylinder

The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

KINCO Touch Screen

Clear interface, Simple operation, Smart touch screen,Updated programming.

Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

Germany Siemens parts

Adopt Siemens brand, stable performance.

Glue cylinder

Adopt the upright structure, easy to change butyl.

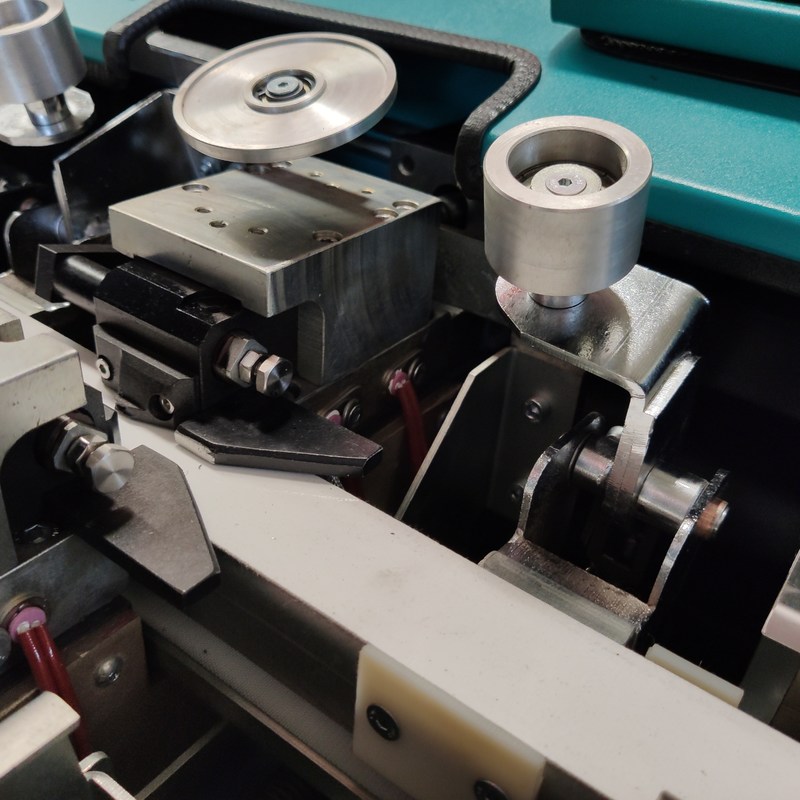

Guiding Wheel

Using guiding wheel to help arc frames coating.

Sensor

Automatically measure the width of frame, the distance of nozzle can be adjustable.

TEFLON glue nozzles

Adopt Teflon glue nozzles, keep spreading quickly.

Special material Belt

Using non-adhesive belt, keep clean.

Crossbeam adjustable structure

Crossbeam adjustable structure controls the spreading height.

Automatic filter function

Automatically filter debris, keep spreading evently.

Special structure

The special part controls both sides of nozzle opening and closing at the same time.

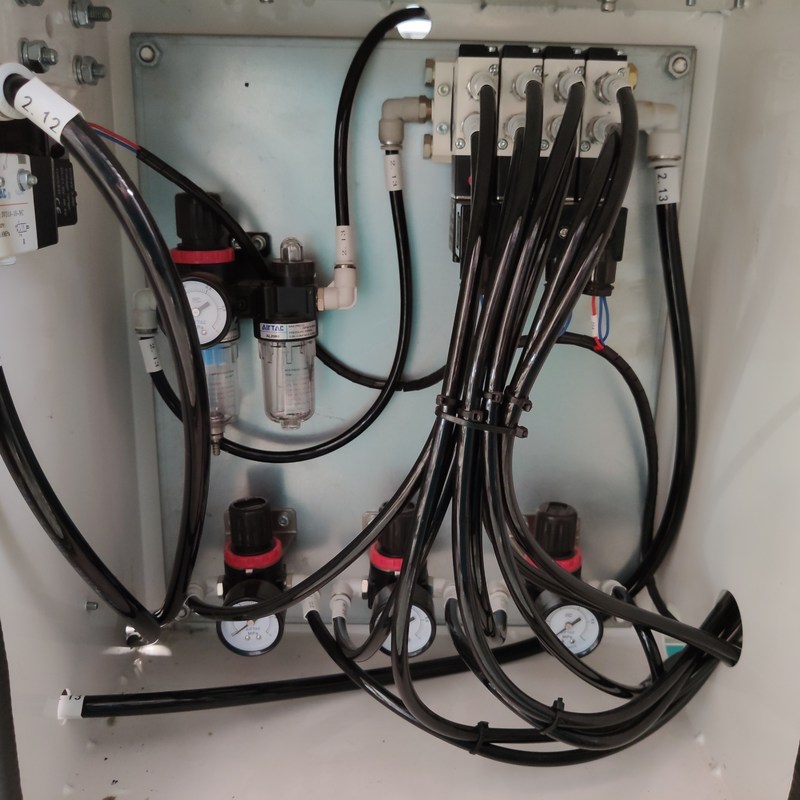

Install pneumatic pressure regulating valve on the left side of the box and connect the air source with the adjustment range of 0-0.8mpa. The air source requires dry compressed air.

Install the touch screen at the reserved hole in the front left of the equipment table, plug the power plug and tighten the screws on both sides, and plug the communication plug and tighten the screws on both sides. Just fix the installation panel (the packaging device may not have removed the touch screen, that is, no installation is needed)
