Product Details:
|
| Name: | Automatic New Butyl Extruder Machine | Overall Dimension: | 2800mm*700mm*900mm |
|---|---|---|---|
| Type: | Horizontal | Model: | LJTB01 |
| Color: | Customers' Request | Min Glass Size: | 170mm*400mm (2000mm Machine) |
| Max Glass Size: | 2500mm*3500mm | Brand: | LiJiang |
| Voltage Power: | 3P 380V 50HZ | Kw: | 5.7kw |
| High Light: | Integrated hot melt butyl machine,Adhesive butyl extruder machine |
||

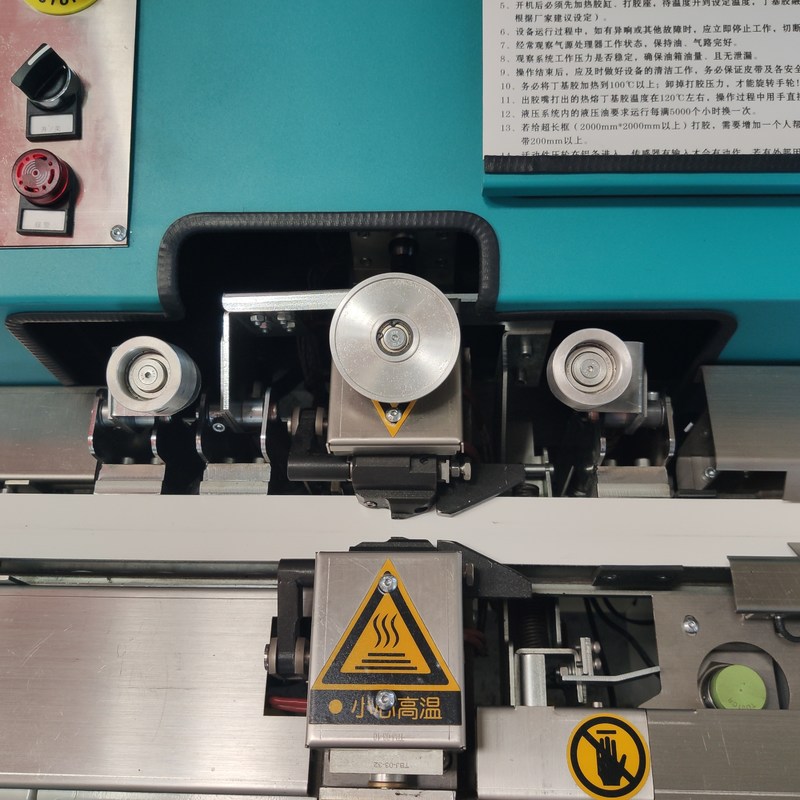

LJTB01 Butyl adhesive automatic coater integrated intelligent automatic control, work smoothly
Power on test machine
Verify that the connected power supply matches the power supply voltage used by the machine before energizing. Open after the power supply equipment urgent stop switch knob to open the power switch knob, wait a minute, about the machine in full swing in touch screen after adjust the machine to run automatically, the machine should start automatically start, heating, hydraulic transmission belt (connected) after air booster pump work until the temperature reaches the set temperature after adjust the hydraulic pressure to the work location, moderate (temperature and pressure according to various butyl rubber factory set)
Equipment training
1.Operation of equipment on/off
2.Use of touch screen function keys
3.Adjustment and function of internal parameters
4.Adjustment of gluing pressure
5.Adjust the width of rubber mouth
6.Beam adjustment
7.How to change the butyl
8.Adjustment of photoelectricity switch for gluing
9.How to replace the belt
10.Adjust belt tightness

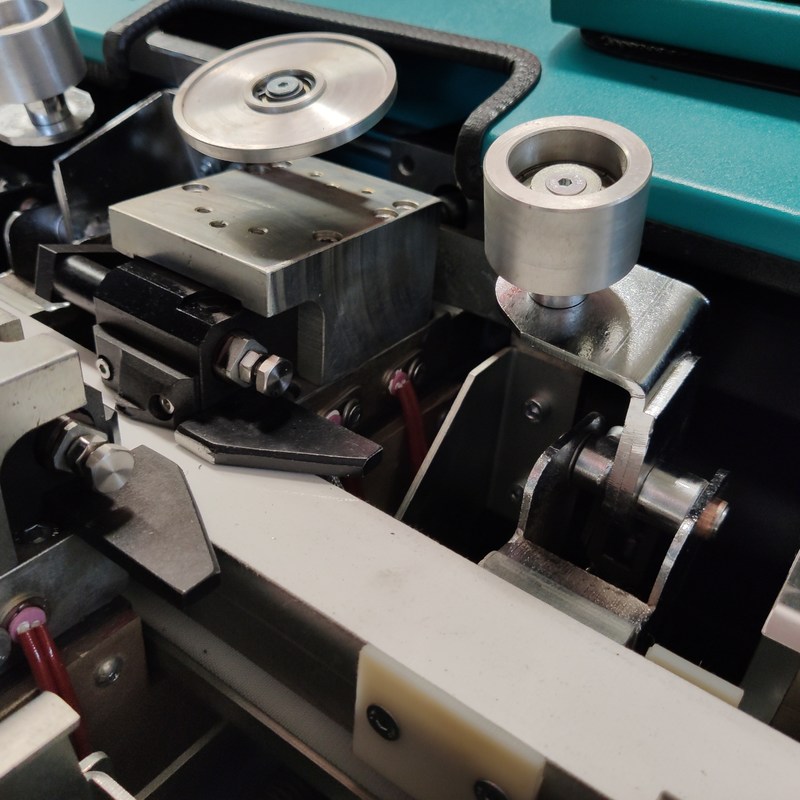

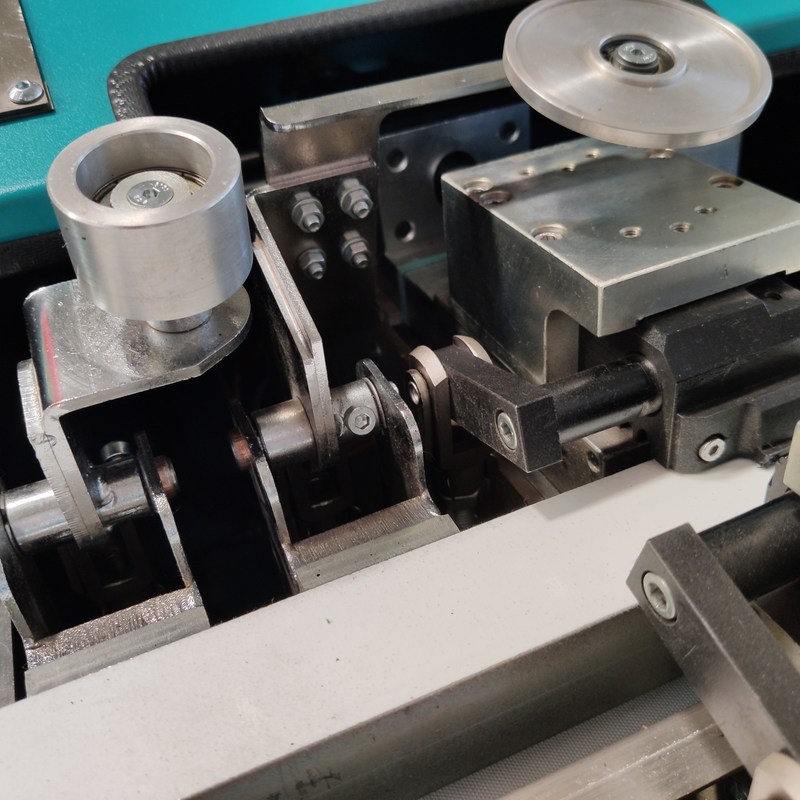

11.Adjustment of press wheel
After the device is energized, turn on the emergency stop knob switch -- turn on the knob switch and other touch screens to start up, enter the main screen motor automatic start button to make the button red. Belt transfer will start, temperature heating start. Wait for the temperature to reach the set point.On the main page, you can set the basic parameters: temperature setting refers to setting the melting point temperature of butyl rubber. Gluing speed refers to the speed of the conveyor belt. Rectangle and circular switch refers to the rectangular box and the aluminum frame with an arc of plastic choice, delay parameter refers to the rubber when the pressure wheel and the delay of the butyl adjustment, butyl is to refer to a separate section of aluminum strip plastic, automatic control refers to manual automatic conversion, plastic cylinder plastic change refers to the use of butyl rubber cylinder after the operation of adding butyl.

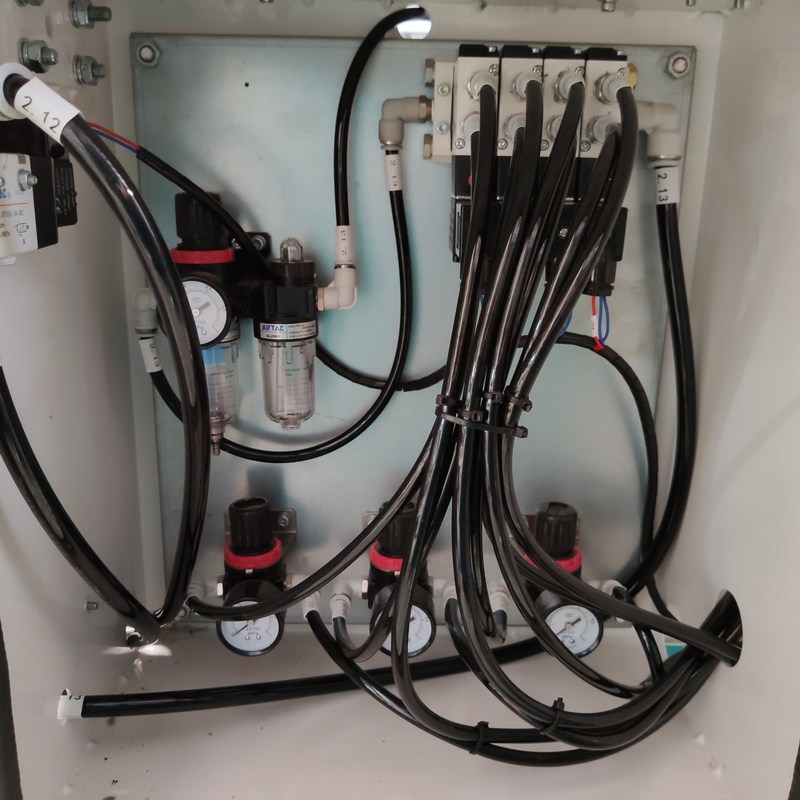

Install pneumatic pressure regulating valve on the left side of the box and connect the air source with the adjustment range of 0-0.8mpa. The air source requires dry compressed air.
Install the touch screen at the reserved hole in the front left of the equipment table, plug the power plug and tighten the screws on both sides, and plug the communication plug and tighten the screws on both sides. Just fix the installation panel (the packaging device may not have removed the touch screen, that is, no installation is needed)
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
