Double Glazing Fast Preheat 47m/Min Butyl Extruder Machine

Butyl Extruder Machine for double glazing that Fast preheat improve work effciency

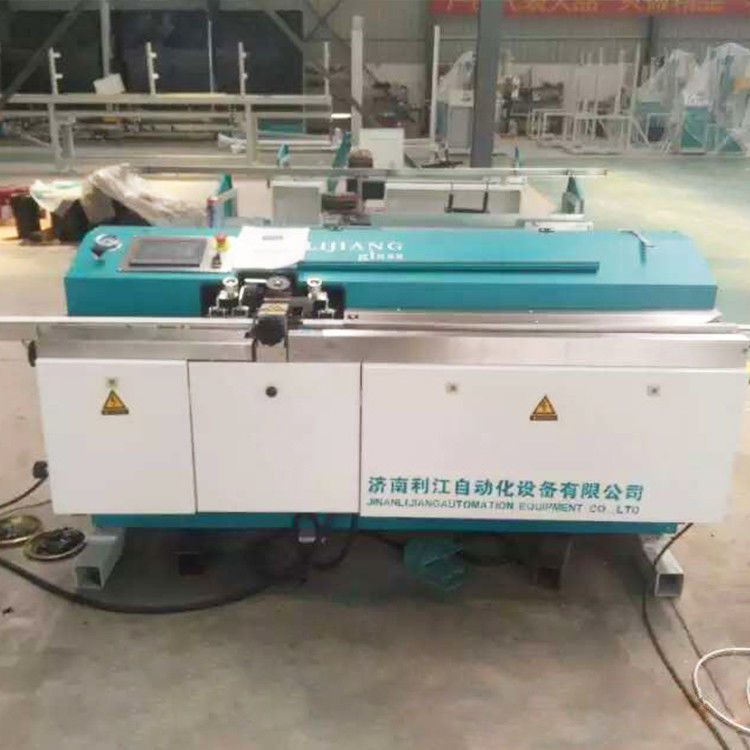

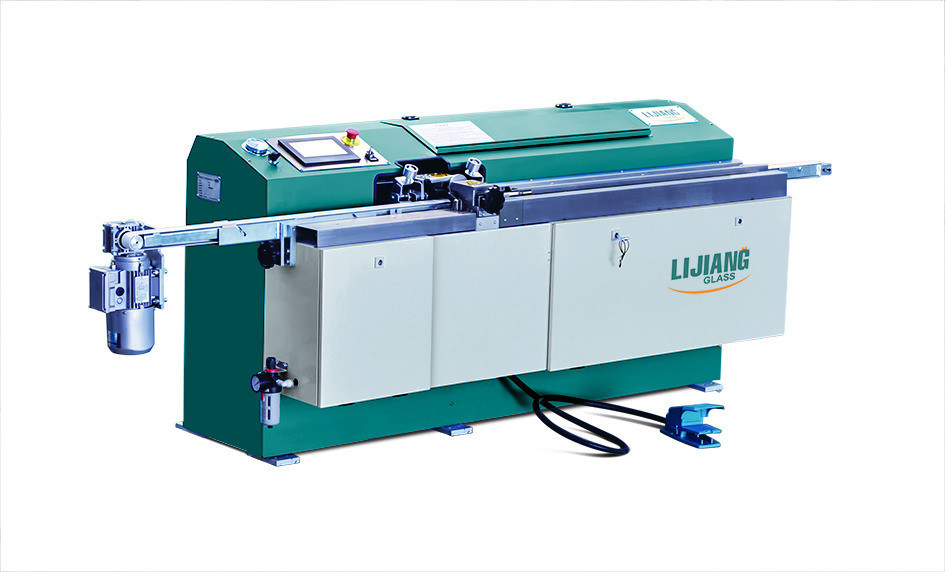

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.

Main feature

• PLC control system, KINCO touch screen interface

• Hydraulic system using German brands

• Alarm system, reminding adding butyl glue

• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable

• Exhaust function

• Short preheating time, improve work efficiency

• Coating shape frames, the roller device can be selected at will

• Fast coating speed, can up to 47m/min

• Stable pressure and even coating

• Saving glue. The amount of glue on both sides can reach 4g / m

• Big glue barrel, 200L. (Optional)

Teflon Belt

Using non-adhesive belt, keep quickly coating speed, saving a lot butyl.

Crossbeam adjustable structure

Crossbeam adjustable structure controls the spreading height.

Beijing Expo

The device was showed in Beijing expo of May, 2017. It attracted many people’s eyes.
