Product Details:
|
| Production Name: | Aluminum Spacer Desiccant Molecular Sieve Filling Machine | Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm |
|---|---|---|---|
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| Certification: | CE ISO | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Optional: | Big Barrel | ||
| Highlight: | Spacer automated filling machine,Sieve filling sealing machine |
||

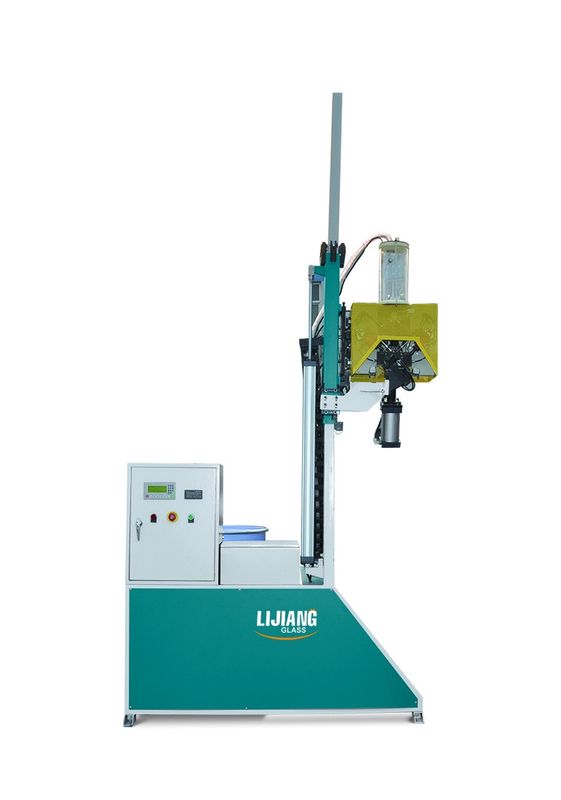

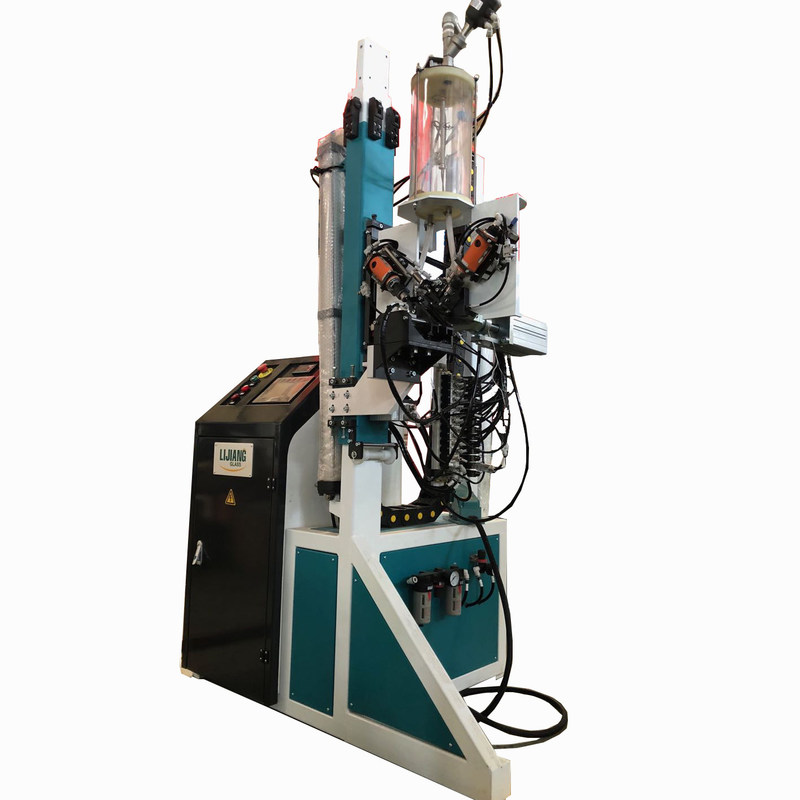

Automatical Aluminum spacer Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant.Molecular sieve Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant.
Product overview of Desiccant Filling Machine
1. Auto drilling, filling and sealing function
2.Electrical component are all Germany Brand-Siemens.
3.Machine height can be adjusted according to the size of spacer frame
4.Protection device for machine head.
5.Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen
6.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
Main technical parameter of automatic desiccant filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
Feature of Molecular sieve Filling Machine
* Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen
*Automatic desiccant filling machine can Automatically drilling, filling and sealing
* Automatic desiccant filling machine can Automatically loading and replenish molecular sieve,Filling time can be adjusted.
* Automatic desiccant filling machine Adopt Siemens PLC control system,Touch screen interface, easy operation.Electrical component are all Germany Brand-Siemens.
* The filling height of head can be adjusted according to the size of spacer frame.
* Automatic desiccant filling machine Can fill arc Arc-shaped aluminum frame (New function)
*Automatic desiccant filling machine can Fill large particle molecular sieve (Optional)
* Desiccant automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
* All spare parts have ID Number for offering the convenience in after sales service.It will be very easy for the further communication in the after sales service .
* This model has a big barrel to storage desiccant ,no need to put desiccant frequently,increasing efficiency.
* It has a vacuum pump to load desiccant,more quickly and improving efficiency.
Related products
LJGJ03 Molecular sieve filling machine
1.Can effectively fill desiccant and keep dry
2.Manually filling desiccant into spacer frame
3.The desiccant can be recyclable
4.Easy operating, simple and flexible
Main technical parameter
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
Aluminum frame transfer machine LJSKJ02
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
