Product Details:
|
Production Name: | Automatic Molecular Sieve Filling Machine | Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm |
---|---|---|---|
Filling Aluminum Frame's Minimal Size: | 300mm*250mm | Aluminum Specifications: | 6A-27A |
Certification: | CE | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm | Optional: | Big Barrel |
Dimension: | 1300*1100*3600mm | ||
High Light: | glass filling machine,desiccant filler |

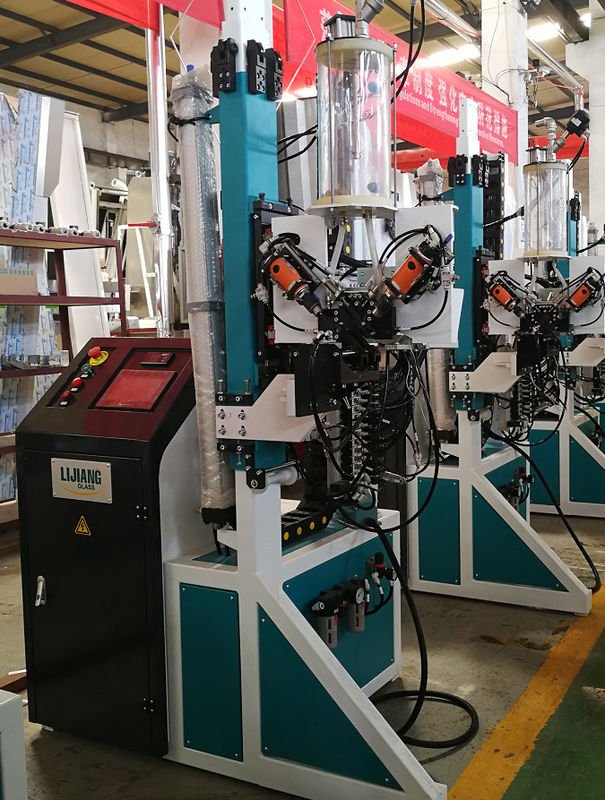

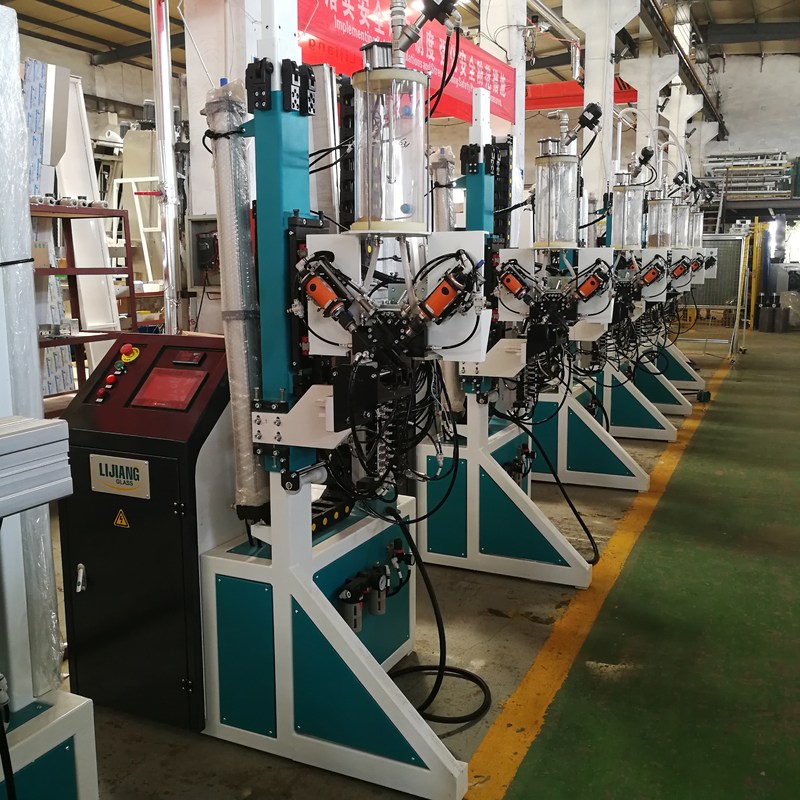

Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant.
Product overview of Desiccant Filling Machine
1. Electrical component are all Germany Brand-Siemens.
2.Protection device for machine head.
3.Machine height can be adjusted according to the size of spacer frame
4.Desiccant automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
5.Auto drilling, filling and sealing function
6.Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen
7.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
8.All spare parts have ID Number for offering the convenience in after sales service.
Feature of Automatic Desiccant Filling Machine
* Automatic desiccant filling machine can Automatically loading and replenish molecular sieve,Filling time can be adjusted.
* Automatic desiccant filling machine Adopt Siemens PLC control system,Touch screen interface, easy operation.Electrical component are all Germany Brand-Siemens.
* Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen
*Automatic desiccant filling machine can Automatically drilling, filling and sealing
* The filling height of head can be adjusted according to the size of spacer frame.
* Desiccant automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
*Automatic desiccant filling machine can Fill large particle molecular sieve (Optional)
* Automatic desiccant filling machine Can fill arc Arc-shaped aluminum frame (New function)
* All spare parts have ID Number for offering the convenience in after sales service.It will be very easy for the further communication in the after sales service .
* It has a vacuum pump to load desiccant,more quickly and improving efficiency.
* This model has a big barrel to storage desiccant ,no need to put desiccant frequently,increasing efficiency.
Main technical parameter of desiccant filling machine
Filling aluminum frame’s maximum size | 2500mm*2500mm |
Filling aluminum frame’s minimal size | 300mm*250mm |
Article aluminum specifications | 5.5-24mm |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1.8KW |
Molecular sieve diameter needed | 0.5-0.9mm |
Dimension | 1300mm*1100mm*3650mm |
Related products
LJGJ03 Manula Molecular sieve filling machine
Main technical parameter
Power supply | 220V 50Hz |
Total power | 1kw |
Dimension | 2490*400*2200mm |
1.Can effectively fill desiccant and keep dry
2.Manually filling desiccant into spacer frame
3.The desiccant can be recyclable
4.Easy operating, simple and flexible
