Insulating glass Butyl Spreading Machine -Automatic Butyl Extruder Machine for making Double Glazing

There are three kinds of butyl rubber machines for Lijiang glass, one is automatic butyl rubber machine LJTB01, one is the butyl rubber machine LJTB03, and the other is the new full-automatic butyl rubber machine LJTB02

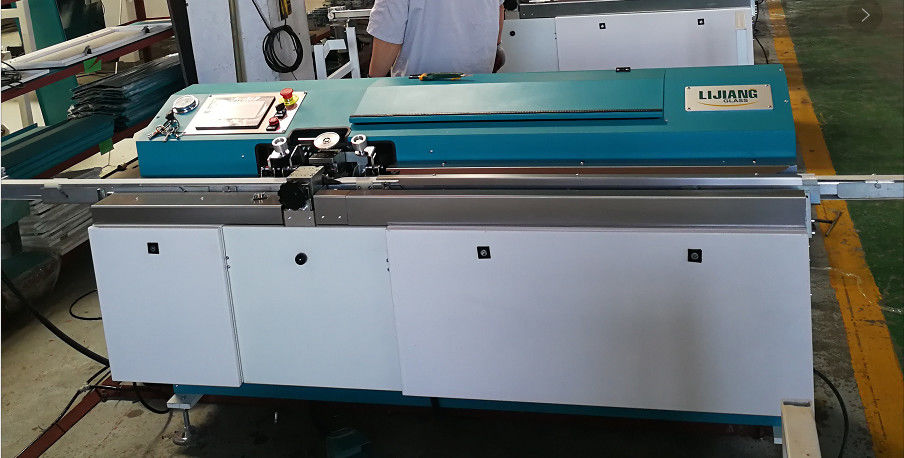

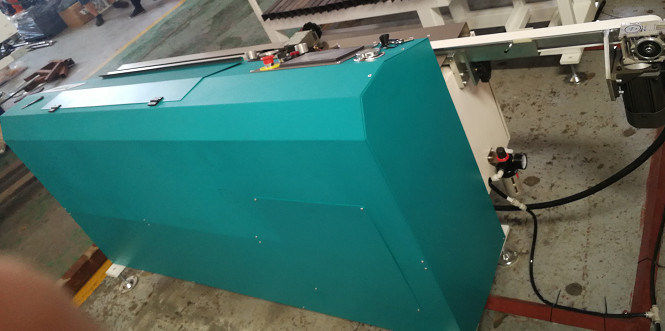

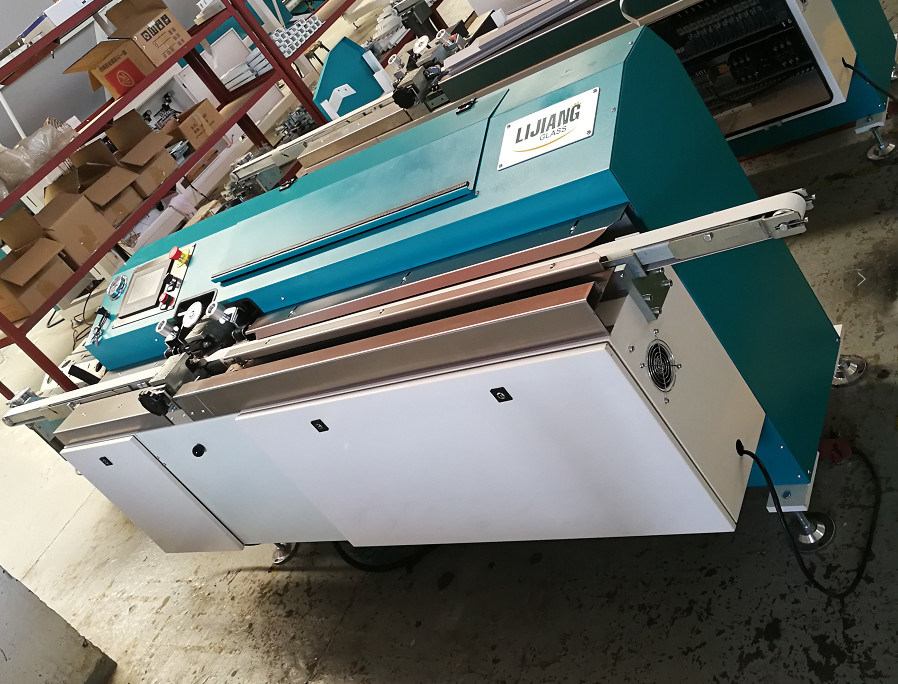

Product overview​ of automatic butyl rubber machine LJTB01

Butyl extruder machine LJTB 01 is used for spreading aluminum spacer frames evenly with hot melt butyl.

The butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode.

The butyl extruder uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min.

Butyl extruder squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers.

Feature of Automatic butyl extruder machine

1.Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

2.The Butyl Extruder adopt PLC control system ,touch screen interface

3.Butyl extruder machine adopt Siemens brand,stable performance.

4.Glue cylinder of Butyl coating equipment adopt the upright structure, easy to change butyl.

5.Butyl Extruder machine can automatically adjust the amount of glue according to different speeds.

6.Butyl extruder machine is suitable for square, rectangular, shaped, arc and kinds of aluminum frames.

7.Alarm system

Automatically alarm system, reminding adding butyl

8.The Butyl coating machine can be Quickly speed of warming,Up to 47m / min,improve work effect.

9.Automatic filter function
Automatically filter debris, keep spreading evently.

10.Guiding Wheel

Using guiding wheel to help arc frames coating.

Technical Data of butyl extruder machine

Leading Technology

• Stable temperature device makes it convenient to adjust the sealing material automatically according to the changed coating speed.
• The coating speed is up to 47m/min, save more than 40% butyl than others, only need 7g/m.
• Quickly heating function, preheat the machines with only 20 minutes per day, improve work efficiency.

LJTB02 Automatic New Butyl Extruder Machine

Main feature

Automatic butyl extruder spreading machine can automatic spread butyl extruder ,lay a foundation for totally automatic of glass factories in the future.

· feature is that it can automatic spreading circular frame ,in addition,aim to big frame,it has mechanical hand to support and can load two barrels if butyl.

· Smooth convey without scratch and pollution.

· Automatically repair glass comers with beautiful surface.

· Single function partsare equipped with manual functions,easy adjustment.

Company Introduction

Jinan Lijiang Automation Equipment Co., Ltd.have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.It is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on.  Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions.

With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
