Product Details:
|
| Name: | Automatic Butyl Extruder Machine | Application: | Making Insulating Glass |
|---|---|---|---|
| Fuction: | Butyl Coating | Brand: | Siemens |
| Speed: | 5-47m/s | Squeeze Pressure: | 10-18MPa |
| Aluminum Spacer Width: | 6A-27A | Diameter Of Butyl Cylinder: | 200mm |
| Power: | 380V,5.7kw,50HZ | Dimension: | 2800*700*900mm(L*W*H) |
| High Light: | double glass machine,hot melt butyl extruder |
||

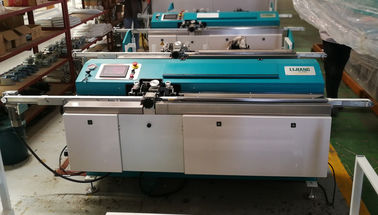

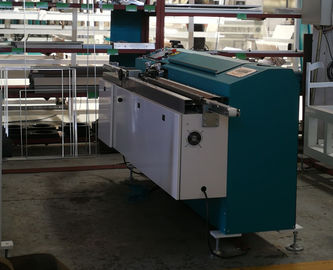

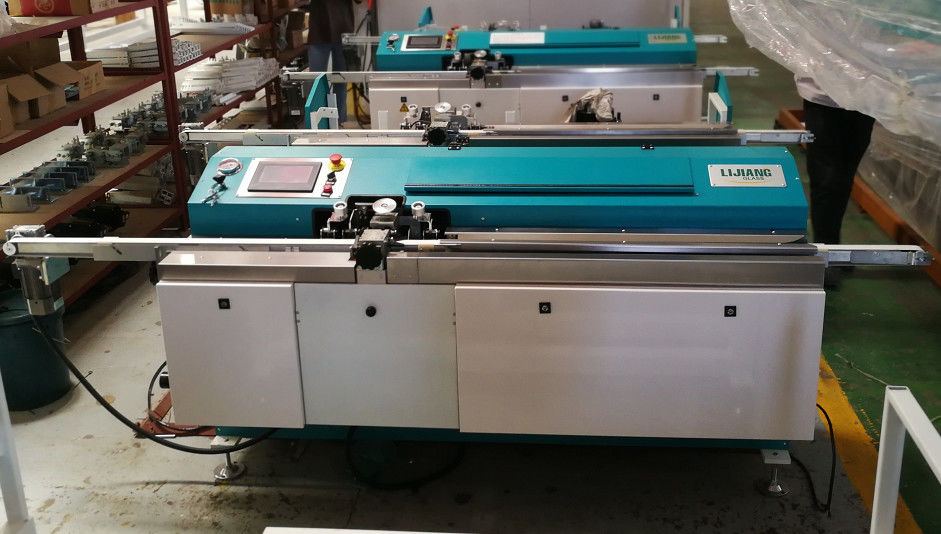

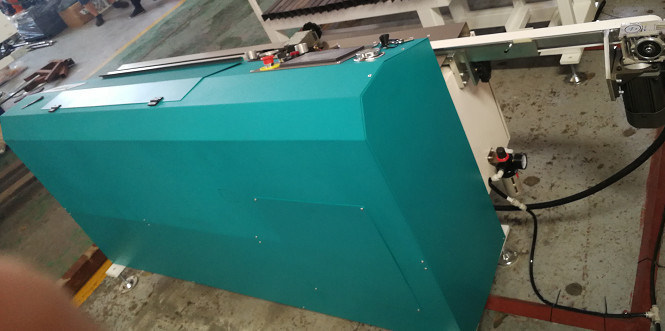

Product overview of automatic butyl extruder machine
Automatic butyl extruder machine is used for coating aluminum spacer frames evenly with hot melt butyl. Butyl extruder has the characteristic of complete functions and stable working mode.The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier.
Leading Technology
Feature of butyl extruder machine
1.Butyl extruder machine adopt Siemens brand,stable performance.
2.Butyl extruder machine is suitable for square, rectangular, shaped, arc and kinds of aluminum frames.
3.The Butyl Extruder adopt PLC control system ,touch screen interface
4.Glue cylinder of Butyl coating equipment adopt the upright structure, easy to change butyl.
5.Butyl Extruder machine can automatically adjust the amount of glue according to different speeds.
6.The Butyl coating machine can be Quickly speed of warming,Up to 47m / min,improve work effect.
7.Automatic filter function
Automatically filter debris, keep spreading evently.
Technical Data of butyl extruder
| Speed | 5-47m/min |
| Diameter of butyl cylinder |
20mm |
| Aluminum spacer width | 6A-27A |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Air pressure | >0.6MPa |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Dimension | 2800*700*900mm |
| Total power | 380V, 5KW, 50HZ |
Company Introduction
Jinan Lijiang Automation Equipment Co., Ltd.is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions.So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
