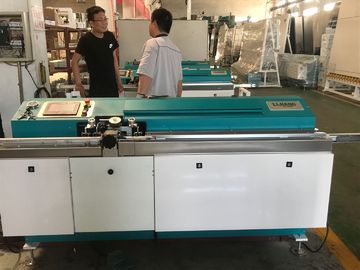

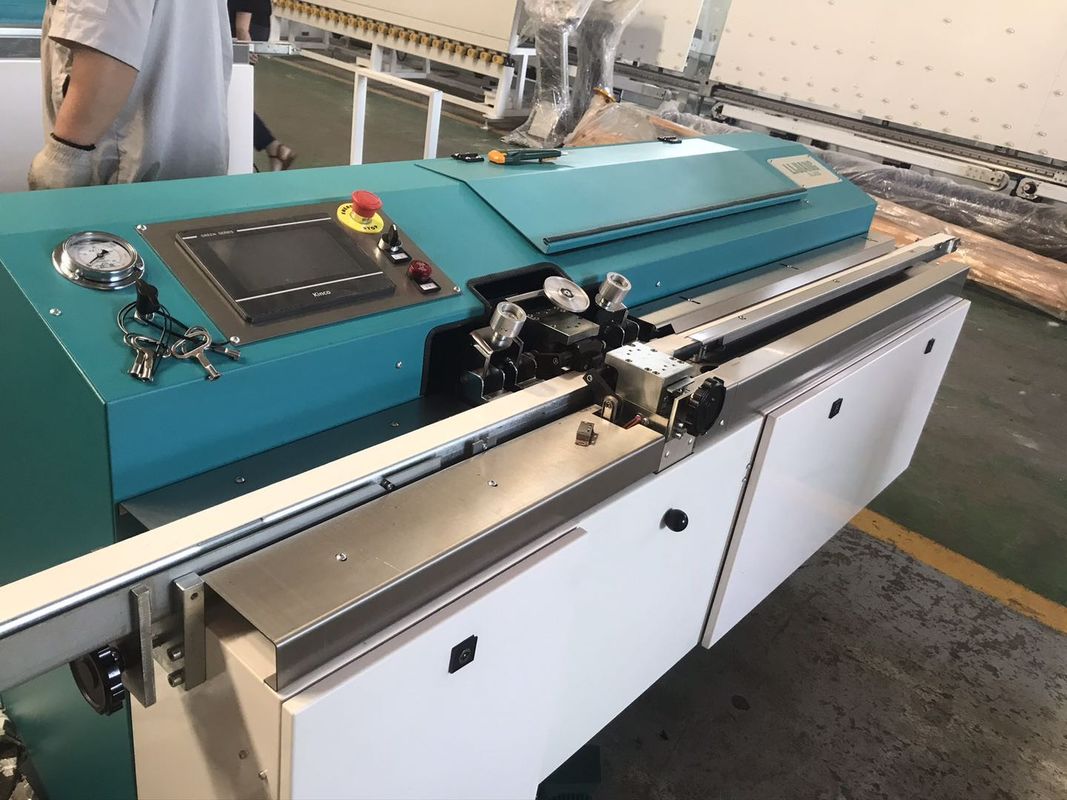

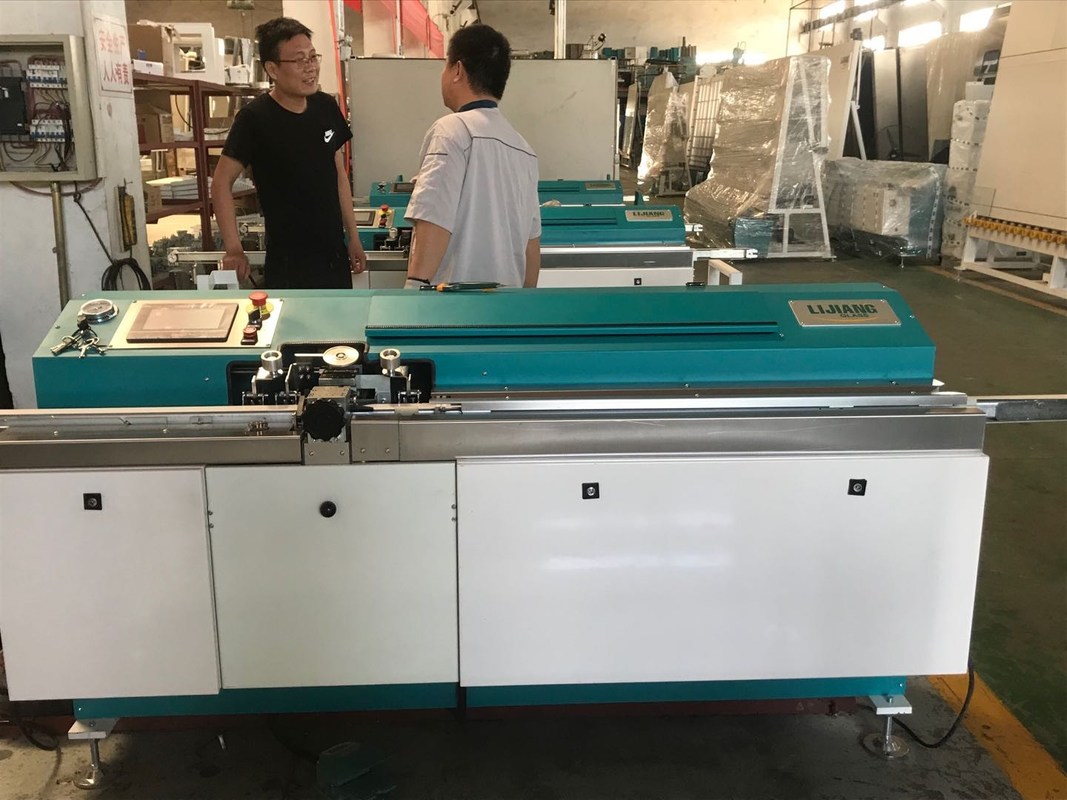

Butyl Glue Spacer Frame Coating Machine

Spacer Frame Coating Machine With Butyl Glue For Butyl Extruder Machine

Butyl Extruder Machine LJTB 01

Main feature :

• PLC control system, KINCO touch screen interface

• Hydraulic system using German brands

• Alarm system, reminding adding butyl glue

• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable

• Exhaust function

• Short preheating time, improve work efficiency

• Coating shape frames, the roller device can be selected at will

• Fast coating speed, can up to 47m/min

• Stable pressure and even coating

• Saving glue. The amount of glue on both sides can reach 4g / m

• Big glue barrel, 200L. (Optional)

Technical data

Electrical parameters

New automatic butyl extruder machine

Introduction :

Fully automatic butyl extruder machine can line with the insulating glass assembly line to realize fully automatic production, and the whole coating process does not need manual work. This automatic butyl extruder machine consists of pressing wheel system (linear pressing wheel, arc pressing wheel), centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotation mechanism, support mechanism, frame unit, pneumatic system, hydraulic system and control system.

Machine features:

(1) There is the alarm device, it will automatically alarm when there is no glue (there will be a prompt on the touch screen);

(2) Timing heating function, workers can set the start-up time of the equipment in advance, the equipment will automatically start the system heating before the official work quickly.

(3) Automatically adjust the distance between front and back glue nozzles according to the width of aluminum spacer.

(4) The transmission motor is controlled by servo motor, and the transmission speed can reach up to 50m / min.

(5) Large frame support mechanism, to prevent large-scale aluminum frame from shaking by a wide margin at the corner, resulting in frame deformation.

(6) Simple, stable and reliable operation, precise coating effect, fast coating speed and high production efficiency.

Parameters:

Butyl Extruder Machine LJTB 03

Main feature

• PLC control system, touch screen interface

• Frequency control system

• Arc frame coating structure

• Imported pneumatic and hydraulic supercharging system

• Automatic centering and clamping structure

• Loading capacity up to 14KG, saving time for feeding glue

• Adopt five steps to control convey

• Preheating function,glue cylinder limit function,alarm system

• Covey and gluing mechanism adopts the latest design

Technical data
