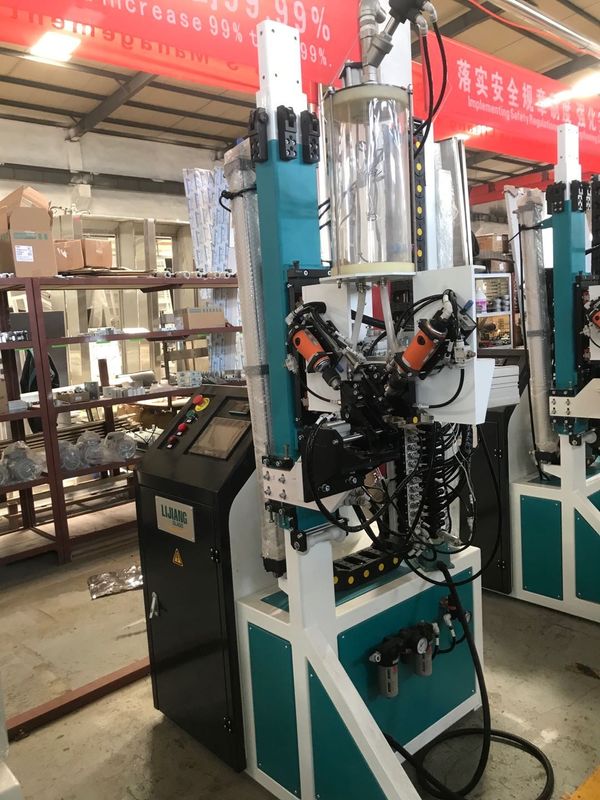

PLC Control Adjustable Time Desiccant Filling Machine

PLC Control Desiccant Filling Machine With Touch Screen And Adjustable Time Function

Desiccant filling machine is also called molecular sieve filling machine. The desiccant filling machine is used to fill the dryer ( molecular sieve) into spacer frame by manually or automatically.

The main features of automatic desiccant filling machine :

1. Germany Siemens PLC program control, stable performance
2. The aluminum frame can be perforated, filled with molecular sieve and sealed with butyl rubber.
3. The filling height can be adjusted according to the size of the aluminum strip by setting the time or setting the length of the aluminum strip
4. It has the function of automatic replenishment to prevent filling not in place
5. The advanced feeding device is designed according to the principle of gas flow
6. All racks are treated by industrial spraying
7. The core control parts adopt imported brands

Main technical parameters:

• Molecular sieve diameter: 0.5-0.9mm
• Filling aluminum frame size: Min 300 * 250mm Max 2000*2000mm
• Filling speed: 5-8s (1000 * 1000mm)
• Width of aluminum frame: 6-27mm
• Air source requirement: 0.65Mpa
• Power supply: AC220V, 50Hz
• Power: 1KW
• Overall dimension: 1300 * 1100 * 3600mm

Technical data :


Main features of the manual desiccant filling machine :

Main feature

• Can effectively seal the desiccant,to keep dry
• Manual filling desiccant into spacer frame
• Recyclable
• Easy operating, simple and flexible

Technical data



What is the insulating glass ?

Insulating glass is to separate two pieces of glass through effective sealing materials and spacer materials, and install desiccant to absorb moisture between two pieces of glass, so as to ensure that the inside of the insulating glass is a dry air layer for a long time, without moisture and dust; meanwhile, the insulating glass is easy to carry out large-scale industrial production, so the insulating glass is widely recommended in new buildings Products.
Two pieces of flat glass are separated by molecular sieve, filled with dry air in the middle, and sealed by organic adhesive around.
It has good heat insulation and sound insulation performance and is used as windows in buildings, refrigerated cabinets, railway vehicles, etc.
The insulating glass desiccant is mainly suitable for the absorption of moisture and gas in the insulating glass interlayer gas, avoiding the glass fogging, keeping the insulating glass clean and transparent even at a very low temperature, improving the insulating and sound insulation performance of the insulating glass, and fully extending the service life of the insulating glass.
