10-18MPa Adhesive Butyl Extruder Machine

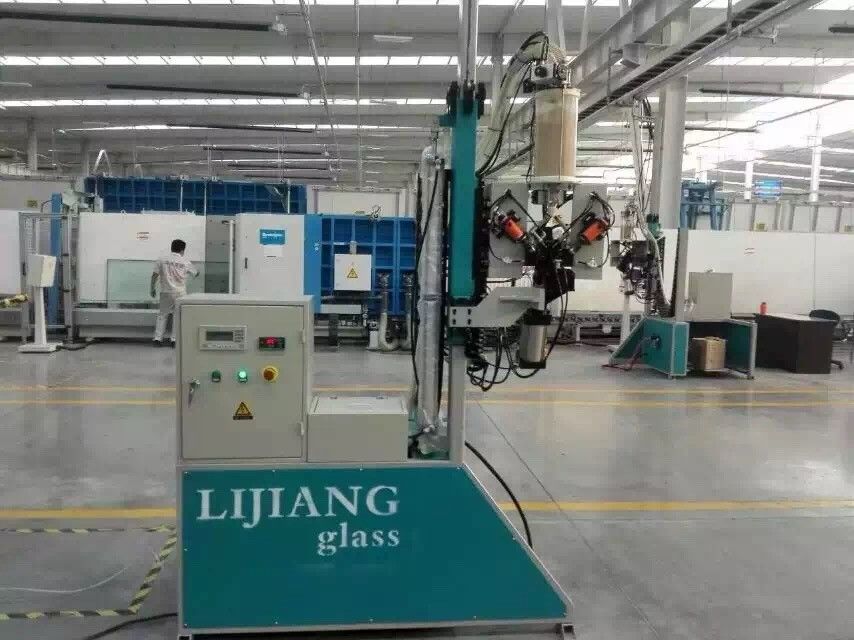

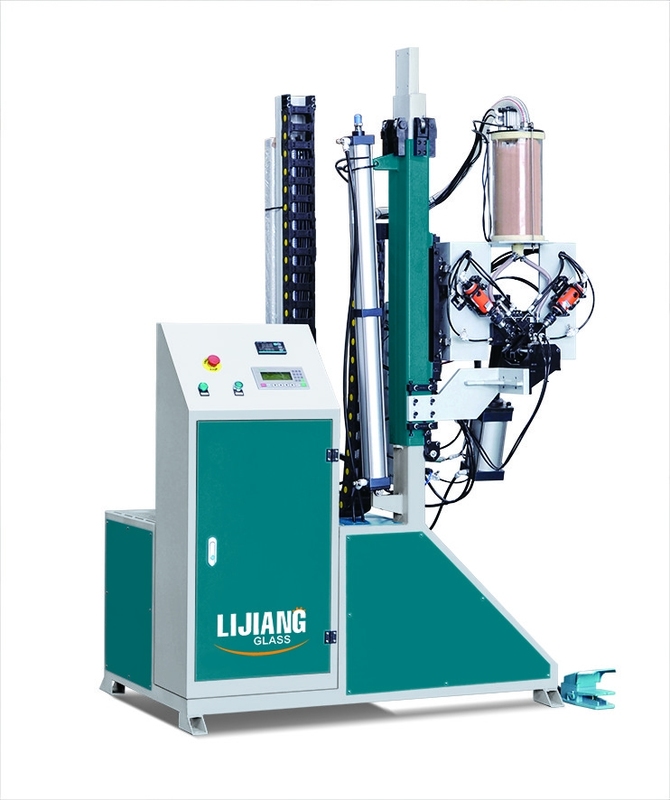

Large Image : 10-18MPa Adhesive Butyl Extruder Machine

Product Details:

Place of Origin:	China Shandong
Brand Name:	Lijiang
Certification:	CE
Model Number:	LJGZ2020

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	6000-7000usd
Packaging Details:	Woodencase ect
Delivery Time:	30-40WORKING DAYS
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	20SET/MONTH

Contact Now

10-18MPa Adhesive Butyl Extruder Machine

Description

Control:

PLC

Height:

Adjustable

Filling Time:

Adjustable

Name:

Butyl Sealant Coating Machine

Highlight:

glass filling machine

desiccant filler

Double Glazing Butyl PIB Extruder Machinery Butyl Rubber Coating Machine

The butyl extruder machine type LJTB01 is used to uniformly spread the aluminum spacer frames with hot melt butyl. This equipment uses a large electric control panel which facilitates the operation. The aluminum conveyor is controlled by a frequency converter, and the speed can be adjusted from 0m / min to 47m / min, which has the fastest speed in China. It is very popular for energy saving. Its compression system adopts a pneumatic and hydraulic supercharging system, which makes the compression pressure more stable. The dispensing cylinder uses a vertical rotating support system and facilitates the refilling of butyl. It can extend the life of the clamping system and set the heating time to 24 hours with electricity and air pressure. The distance from the clamping head can be adjusted automatically according to different aluminum spacers. The machine has reached the world technology with the characteristic of full function and stable operating mode.

The desiccant filling machine can automatically perform actions of automatic drilling of holes in the spacing frames, filling desiccant and sealer. The desiccant filling machine control system adopts Germany Siemens, so that the filling speed is fast and stable operation guarantee the valid closing property of the sealer. The desiccant filling machine improves the quality of the insulating glass, it is a necessary equipment in the insulating glazing process.

Squeeze pressure	10-18MPa
Temperature	110~140℃
Aluminum spacer width	4-30mm
Speed	0-47m/min
Diameter of butyl cylinder	200mm
Air supply	0.4m³/min
Air pressure	≥0.6MPa
Total power	380V, 5KW, 50HZ
Dimension	2600×680×1100mm(L×W×H)
Weight	650kg

Machine Details:

Protection device for machine head.

Easy and safe for adding glue.

Electrical component are all Germany Brand-Siemens.

Machine height can be adjusted according to the size of spacer frame.

10-18MPa Adhesive Butyl Extruder Machine 1
