Product Details:
|
Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
---|---|---|---|
Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
Speed: | 0-47m/min | ||
High Light: | double glass machine,hot melt butyl extruder |
• PLC control system, touch screen interface
• Automatic recognition of the width of the aluminum belt, automatic adjustment of the glue nozzle
• Important parts of the hydraulic system use components imported from Germany to ensure even plastic filling
• Warm up quickly to improve work efficiency
• With preheating function
• Exhaust expansion function improves sealing quality and saves plastic time
• High coating speed, up to 47m / min
• Save glue

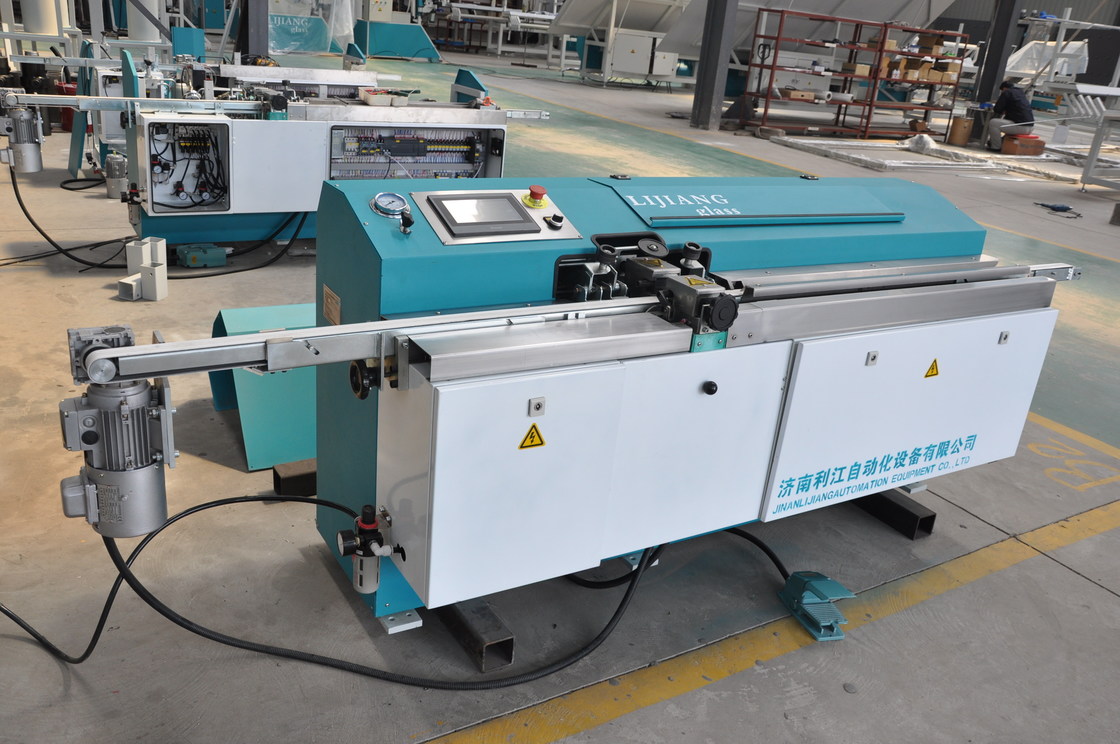

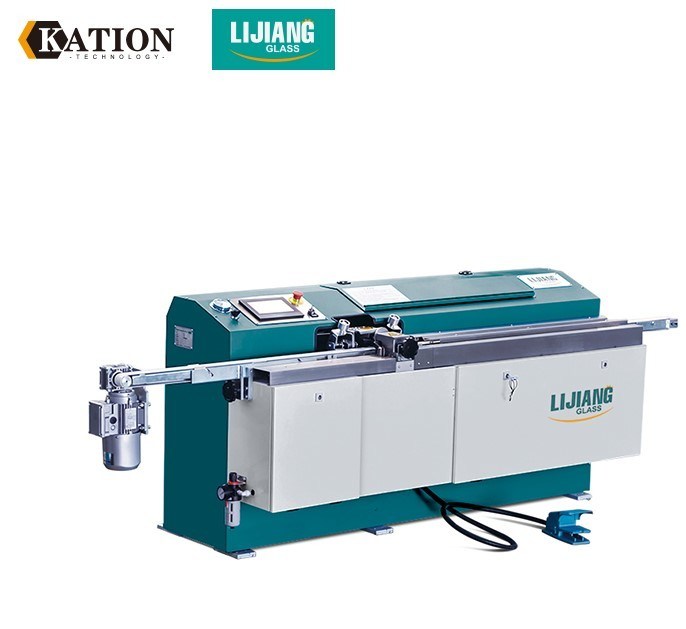

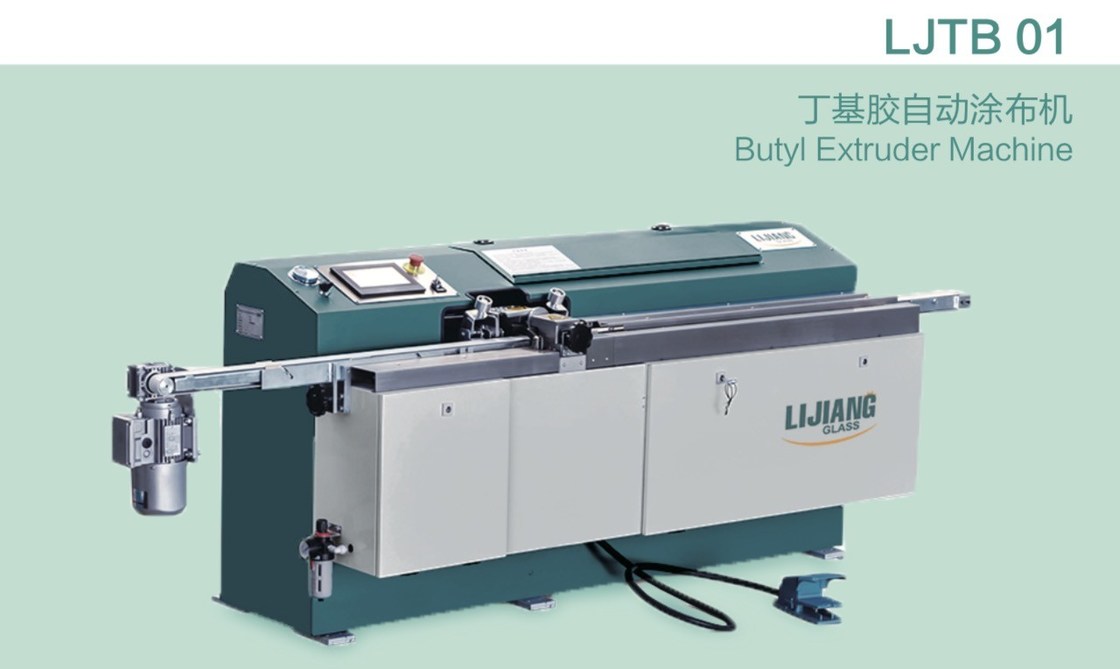

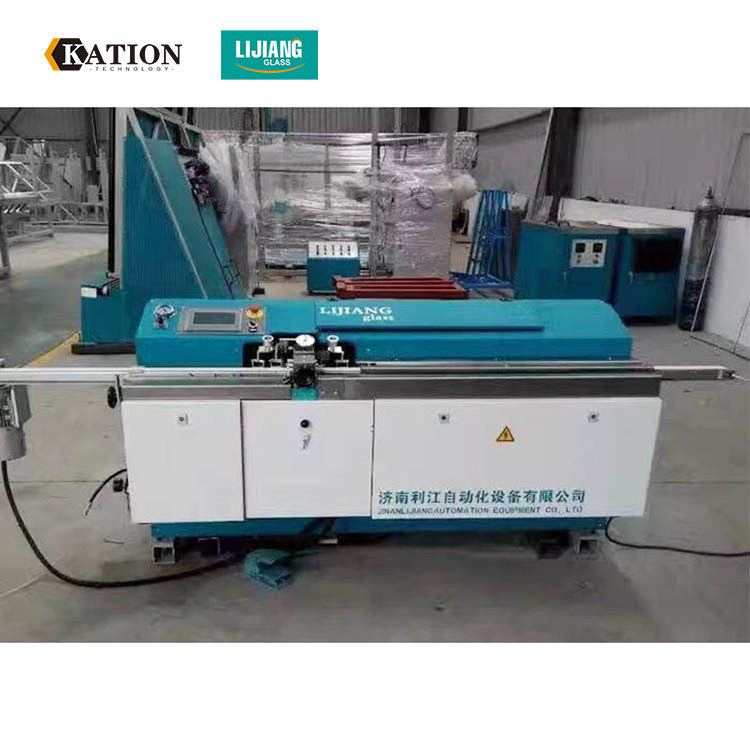

Use the LJTB 01 automatic butyl extyluder without dissolving aluminum spacers (and other spacers) with hot butyl adhesive. Butyl extruders use larger electric control panels that are easier to operate than ever before. The speed is adjusted from 0m / min to 47m / min, the highest speed in China. Butyl rubber extruder is popular because of its energy savings. The extrusion system adopts the German pressure and hydraulic system to make the extrusion pressure more stable. The butyl rubber extruder has achieved world-class technology due to its full performance and excellent sets.
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 4-30mm |
Speed | 0-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5KW, 50HZ |
Dimension | 2600×680×1100mm(L×W×H) |
Weight | 650kg |
Name | Brand | Original |
PLC | SIEMENS | Germany |
Valve | HAWE | Germany |
Low voltage electrical apparatus | SIEMENS | Germany |
Hydraulic and pneumatic supercharging system | MAXIMATOR | Germany |
Frequency converter | SIEMENS | Germany |
Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
Quick exhaust valve/Vacuum generator | SMC | Japan |
Travel light | OMRON | Japan |
Optical fiber | OMRON | Japan |
Automatic filter function
Automatically filter debris and air, keep spreading evenly.
Special structure
The special part controls both sides of nozzle opening and closing at the same time.
There is the auto-centering and auto-clamping device.
