Product Details:
|
Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
---|---|---|---|
Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
Speed: | 0-47m/min | ||
High Light: | double glass machine,hot melt butyl extruder |

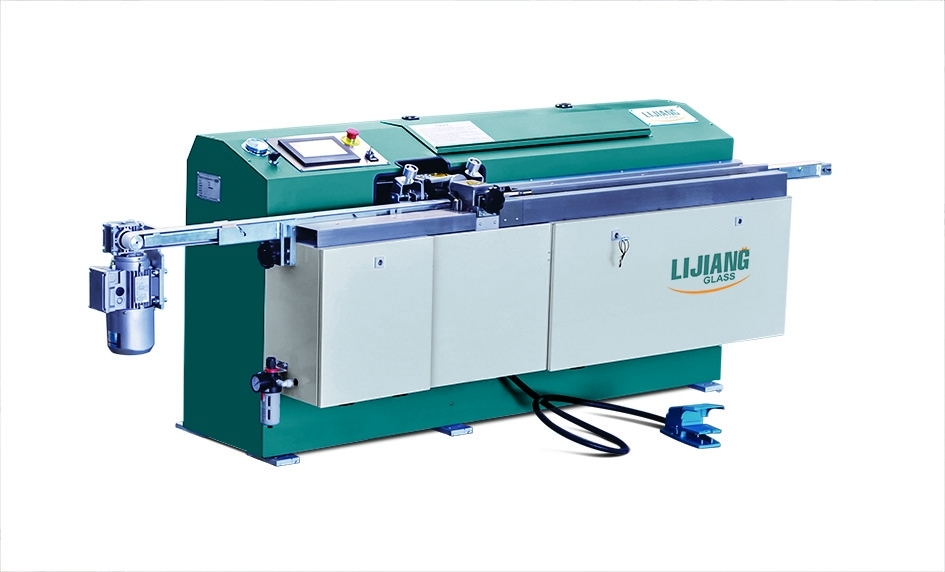

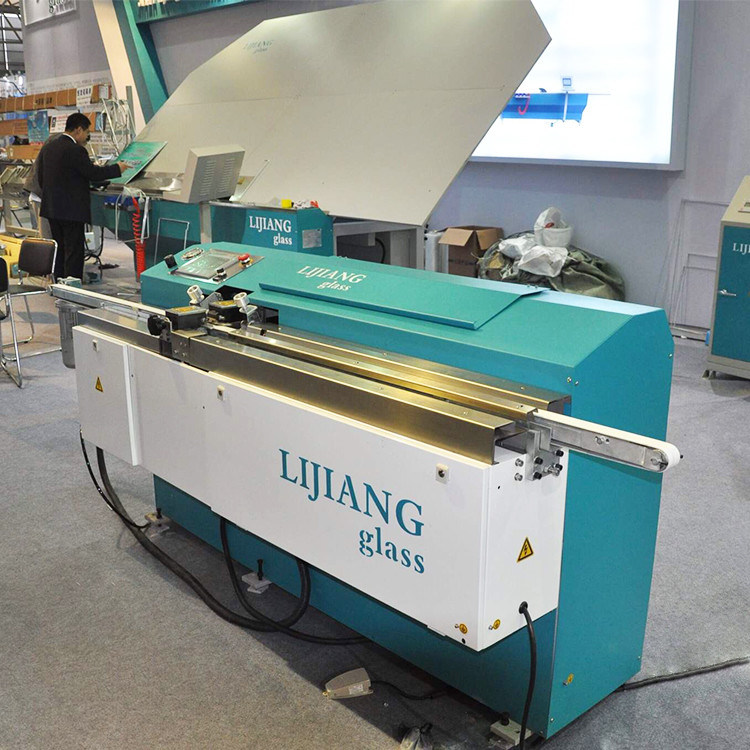

Use the LJTB 01 automatic butyl rubber extruder to evenly disperse the aluminum spacers (and other spacers) with hot melt butyl adhesive. Butyl extruders use large electric control panels that are easier to operate than ever before. The speed is adjustable from 0m / min to 47m / min, the fastest speed in China. Butyl rubber extruder is very popular because of its energy saving. The extrusion system adopts German pneumatic and hydraulic boosting system to make the extrusion pressure more stable. Butyl rubber extruder has achieved world-class technical level due to its full functionality and excellent spare parts.
• PLC control system, touch screen interface
• Automatic recognition of aluminum strip width, adhesive nozzle can be adjusted automatically
• An important part of the hydraulic system uses components imported from Germany to ensure that the plastic is evenly filled
• Quick warm-up to improve work efficiency
• With preheating function
• Exhaust gas expansion function improves seal quality and saves plastic time
• High coating speed, up to 47m / min
• Save glue
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 4-30mm |
Speed | 0-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5KW, 50HZ |
Dimension | 2600×680×1100mm(L×W×H) |
Weight | 650kg |
Name | Brand | Original |
PLC | SIEMENS | Germany |
Valve | HAWE | Germany |
Low voltage electrical apparatus | SIEMENS | Germany |
Hydraulic and pneumatic supercharging system | MAXIMATOR | Germany |
Frequency converter | SIEMENS | Germany |
Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
Quick exhaust valve/Vacuum generator | SMC | Japan |
Travel light | OMRON | Japan |
Optical fiber | OMRON | Japan |
KINCO Touch Screen
Clear interface, simple operation, smart touch screen, updated program.
Alarm system
It is an automatic alarm system, reminding adding butyl glue.
Guiding Wheel
Using guiding wheel to help arc frames coating.
