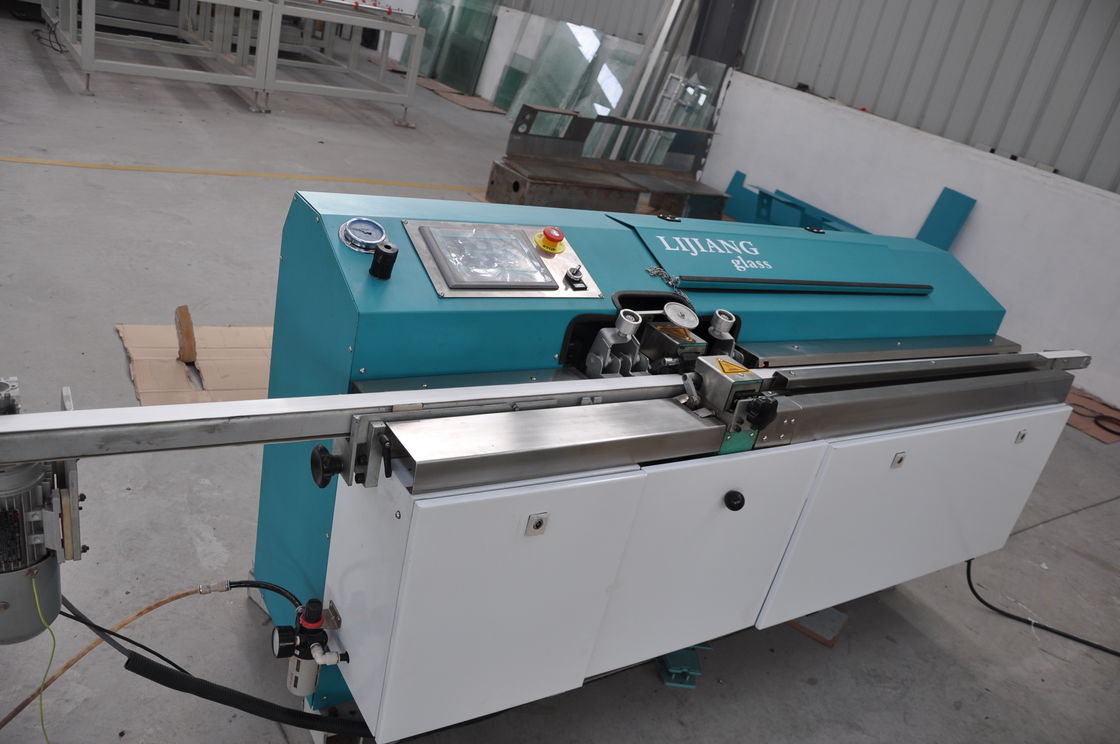

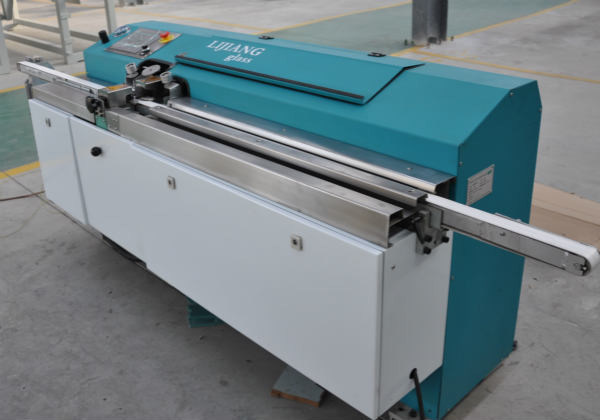

Butyl Extruder Machine LJTB 01

Application

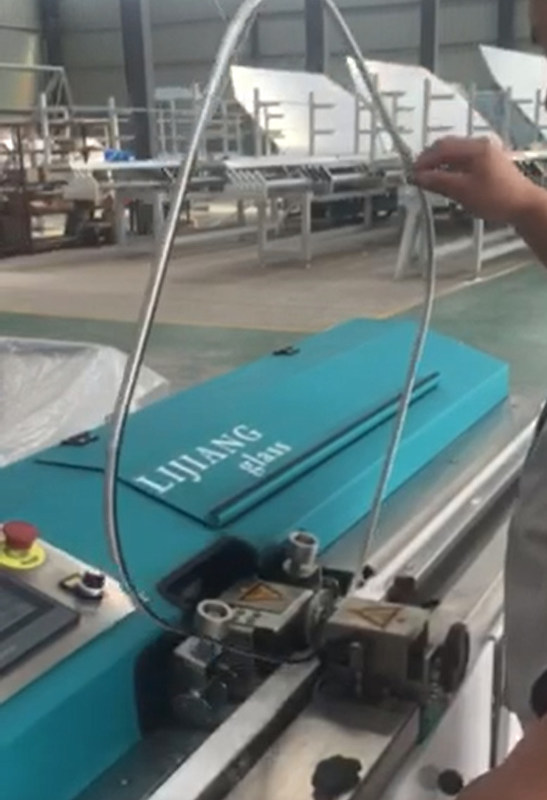

LJTB 01 automatic butyl rubber extruder is used to disperse aluminum spacers (and other spacers) evenly with hot melt butyl glue. The butyl extruder uses a large electrical control panel, which is easier to operate than before. The speed can be adjusted from 0m / min to 47m / min, which is by far the fastest speed in China. Butyl rubber extruder is very popular with energy saving. The extrusion system adopts German pneumatic and hydraulic pressure boosting system to make the extrusion pressure more stable. Butyl rubber extruder has achieved worldwide technical level due to its complete functions and excellent spare parts.

Main feature

• PLC control system, touch screen interface
• Automatic recognition of aluminum strip width, adhesive nozzle can be adjusted automatically
• An important part of the hydraulic system uses components imported from Germany to ensure that the plastic is evenly filled
• Quick warm-up to improve work efficiency
• With preheating function
• Exhaust gas expansion function improves seal quality and saves plastic time
• High coating speed, up to 47m / min
• Save glue

Technical Data

Main components

Equipment details

Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

Germany Maximator Cylinder

The booster system uses German pneumatic cylinders and hydraulic cylinders to strongly control the oil pressure.

Use Siemens servo motor and PLC to maintain stable performance.

Leading Technology:

• Stable temperature device makes it convenient to adjust the sealing material automatically according to the changed coating speed.

• The coating speed is up to 47m/min, save more than 40% butyl than others, only need 7g/m.

• Quickly heating function, preheat the machines with only 20 minutes per day, improve work efficiency.
