| Name: | Butyl Extruder Machine | Typo: | LJTB03 |
|---|---|---|---|
| Squeeze Pressure: | 10-18MPa | Temperature: | 110~140℃ |
| Aluminum Spacer Width: | 6A-27A | Speed: | 0-40m/min |
| Diameter Of Butyl Cylinder: | 200mm | ||
| High Light: | butyl silicone sealant,double glass machine |
||

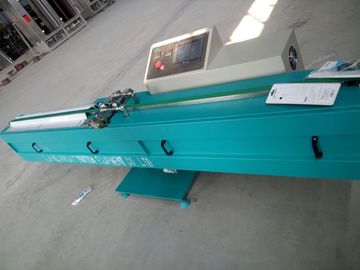

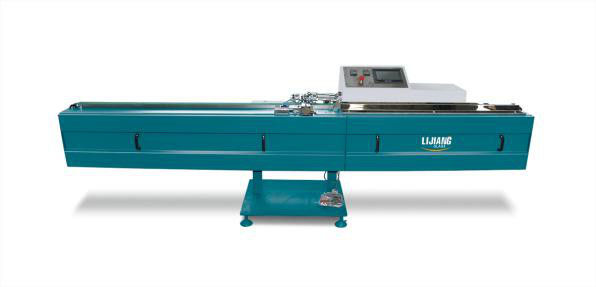

Butyl Extruder Machine LJTB03
We adopt the most advanced technology for the butyl extruder machine; develop with utmost
convenient for operation, which increases the production efficiency. Butyl is the key process in
insulating glass production, only if the butyl sealing is perfect, you can get the perfect insulating
glass. In order to get the proper connection between aluminum frame and glass, precise operation
temperature is required. Arc frame sealing is also required for different shape insulating glass.
Touching screen operation
1) Operation methods
Switch on the power supply to “ON” and the touching screen shows the below page.
Set the right temperature for butyl tank and butyl nozzle
Press the Timing heating in touching screen 【Diagram POD-1】to “ON” heating working status.
The heating indicator is on before the real temperature reached the set value【Diagram POD-2】,
when the heating complete is on, means the heating is completed.
Press the “Automatic start” 【Diagram POD-2】, to start the auto running.
Click the “Automatic start” button in home page【Diagram POD-1】, enter the below page
| NO | Name | Instruction |
| 1 | Dormancy | The machine cannot spread butyl in auto working status under Dormancy mode. |
| 2 | No butyl indicator | Twinkle when no butyl available. |
| 3 | Heating work indicator | Heating working status display |
| 4 | Heating complete | Heating finish status display |
| 5 | Working table lifting switch | Control the working table height. |
| 6 | Butyl spreading volume display. | Digital display of the butyl nozzle spreading volume(Butyl delay / butyl ahead) |
| 7 | Pressing roller time | Adjust the pressing time of wheel 1 and wheel 2 |
| 8 | Automatic start | Auto working switch |
| 9 | Automatic stop | Auto stop switch |
| 10 | Pressure wheel stop | The pressing wheel starts to work when switch on. |
| 11 | Belt conveyor speed | Belt start adjustment switch |
Main feature
PLC control system, touch screen interface
Frequency control system
Arc frame coating structure
Imported pneumatic and hydraulic supercharging system
Automatic centering and clamping structure
Loading capacity up to 14KG, saving time for feeding glue
Adopt five steps to control convey
Preheating function,glue cylinder limit function,alarm system
Covey and gluing mechanism adopts the latest design
Technical features:
European Hydraulic and pneumatic super charging system is adopted for stable performance.
Touching screen control, easy operation.
Transport speeds: 5 speed available.
Arc frame sealing function, which controlled by PLC.
Auto butyl nozzle distance adjustment device.
14KG butyl tank.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
