Product Details:
|
Name: | Molecular Sieve Filling Machine | Max Frame Szie: | 2500*2500mm |
---|---|---|---|
Min Frame Size: | 300*250mm | Aluminum Size: | 6A-27A |
Air Source: | 0.65MPA | Total Power: | 1kw |
Molecular Sieve Diameter: | 0.5-0.9mm | Machine Size: | 1300*1100*3600mm |
PLC: | Germany Simens | Filling Height: | Can Adjust |
Highlight: | glass filling machine,desiccant filler |

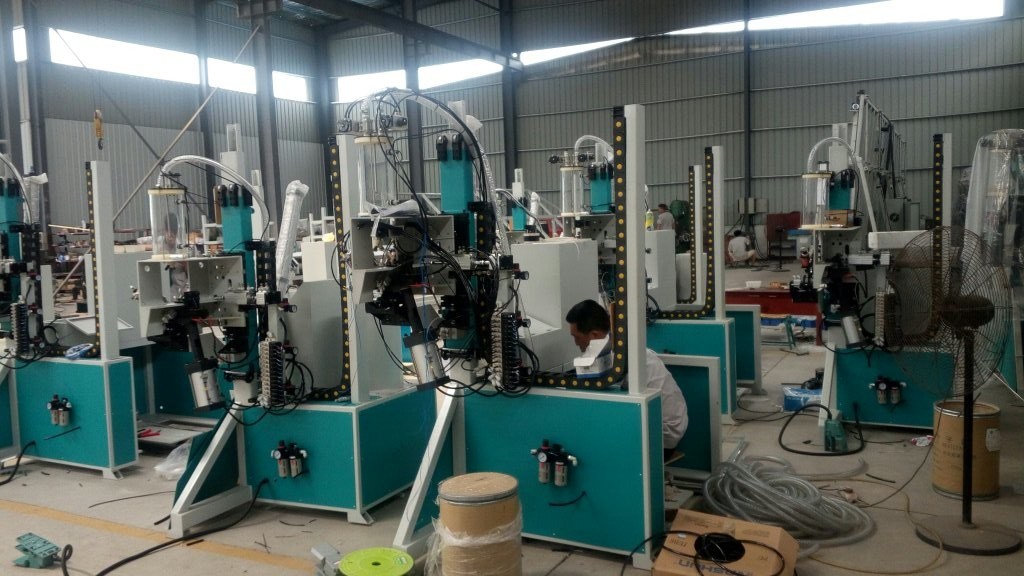

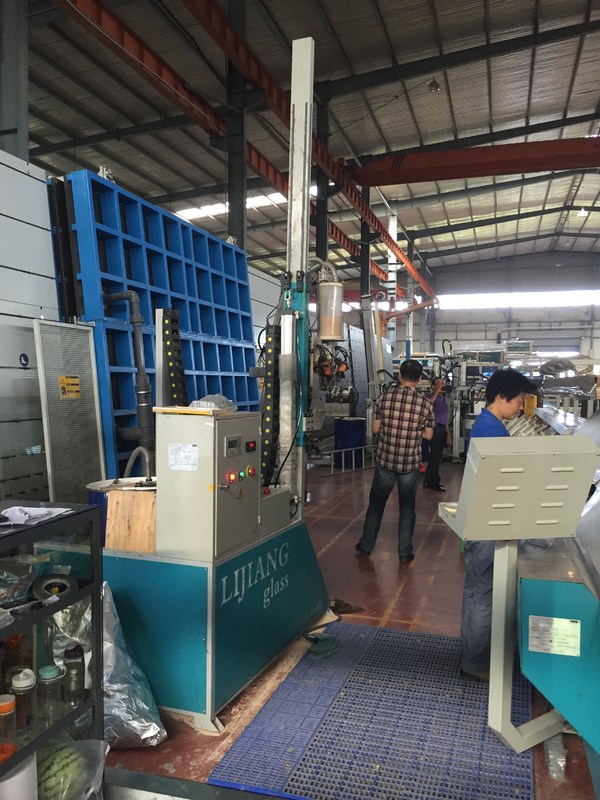

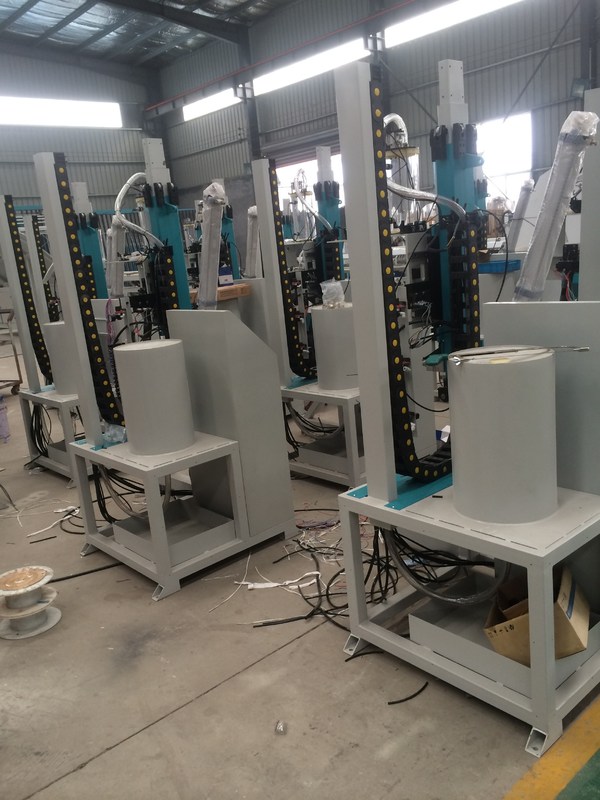

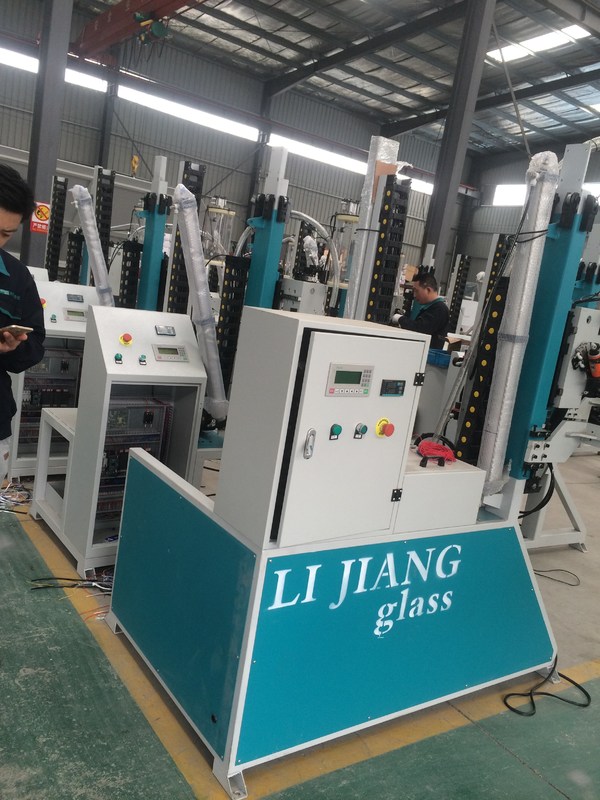

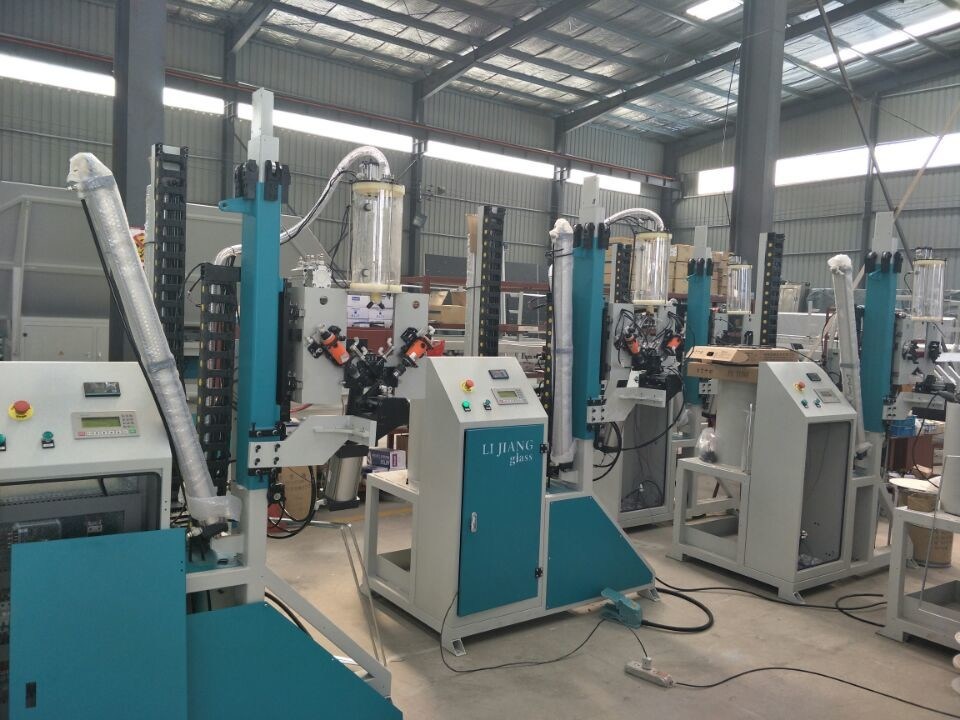

Molecular Sieve Desiccant Filling Machine / Insulating Glass Machine
Main feature
n The filling height of can be adjusted according to the size of spacer frame
n Filling time can be adjusted
n Desiccant auto loading and replenish
n Auto drilling, filling and sealing function
n Germany Siemens PLC control system
n Touching screen interface, simple and visible
n Adding glue way is safe and easy
n Machine can fill the arc frame.(optional function)
n Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function)
Main technical parameter
Filling aluminum frame’s maximum size | 2000mm*2000mm |
Filling aluminum frame’s minimal size | 300mm*250mm |
Article aluminum specifications | 5.5-24mm |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1KW |
Molecular sieve diameter needed | 0.5-0.9mm |
Dimension | 1300mm*1100mm*3650mm |
LJGZ2020A Automatic desiccant filling machine
Main feature
n The filling height of can be adjusted according to the size of spacer frame
n Filling time can be adjusted
n Desiccant auto loading and replenish
n Auto drilling, filling and sealing function
n Germany Siemens PLC control system
n Touching screen interface, simple and visible
n Adding glue way is safe and easy
n Machine can fill the arc frame.(optional function)
n Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function)
n Big bucket desiccant ,save desiccant refill time ,improve the work efficiency (optional function)
n Protection device for machine head ((optional function)
n Adopt vacuum pump loading device ,increase the loading speed (optional function)
Main technical parameter
Filling aluminum frame’s maximum size | 2000mm*2000mm |
Filling aluminum frame’s minimal size | 300mm*250mm |
Article aluminum specifications | 5.5-24mm |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1.8KW |
Molecular sieve diameter needed | 0.5-0.9mm |
Dimension | 1300mm*1100mm*3650mm |
Desiccant filling machine main component
name | brand |
PLC | German SIEMENS |
Low voltage electrical apparatus | German SIEMENS |
sensor | Korea AUTONICS |
guide | Taiwan TBI |
triplet | TAIWAN AIRTAC |
Solenoid valve | TAIWAN AIRTAC |
Gas driller | Taiwan BOA |
Switch power | Taiwan TEND |
Name | Brand |
PLC | German SIEMENS |
Low voltage electrical apparatus | German SIEMENS |
Sensor | Korea AUTONICS |
Triplet | TAIWAN AIRTAC |
Solenoid valve | TAIWAN AIRTAC |
Gas driller | Taiwan BOA |
Switch power | Taiwan TEND |
Guide | Taiwan TBI |
Main technical parameter
Filling aluminum frame’s maximum size | 2500mm*2500mm |
Filling aluminum frame’s minimal size | 300mm*250mm |
Article aluminum specifications | 5.5-24mm |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1.8KW |
Molecular sieve diameter needed | 0.5-0.9mm |
Dimension | 1300mm*1100mm*3650mm |
We have our own china domestic team and oversea service team .
Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east.
24 hours online service and local engineer available , guarantee customers got timely service and solution .
National Glass Expo
:Glasstec in Germany ,
CAM Eurasia Glass in Istanbul,
India Zak,
India Glasspro,
Glasstech Aisa ,
Glass build in America,
Mexico glass expo .
Big Five In Dubai,
Egpyt.
Domestic glass expo :
China glass , (Beijing /shanghai),
Guangzhou.
Advantages of Lijiang Products
1, we are producing all DGU machines : Vertical Insulated Glass Produce Line for double glass production line, Auto Sealing Robot for double glass production line, Sealant Spreading Machine for double glass production line, Low-E Glass Washing &Drying Machine for double glass production line, Smart Edge Deleting Machine for double glass production line, Automatic Spacer Bending Machine for double glass production line, Automatic Desiccant Filling Machine for double glass production line, Butyl Extruder Machine for double glass production line, Glass Edge grinding Machine for double glass production line, Spacer Cutting Machine for double glass production line, Sealing gun Freezer for double glass production , Rotated Sealant Spreading Table double glass sealing, Argon Gas Filling Machine double glass , Semi-auto Aluminum Frame, Spacer Transfer Machine for double glass production line, Molecular Sieve Filling Machine double glass production line, Glass Lifting Table double glass production line, Glass Loading /unloading Device for double glass production line, Water Treatment System for double glass production line (Economy), Water Treatment System double glass production line (Advanced), Auto Seaming Machine
2, we have our own technician team and we got patent for the spacer bending machine and butyl extruder machine and desiccant filling machine and so on.
For the Double Glazing Production line we have latest technology about pressing part and argon gas filling part .
For the Automatic sealing robot , the mechanical head is in front of machine, it can achieve the real connection with Double Glazing production line when producing the step glass.
For the Spacer bending machine, our machine can bend aluminum spacer and warm edge spacer ,and stainless steel, warm edge spacer need heating before bend, the corner error is acceptable range, we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service .
for the butyl extruder machine , our best advantage is coating speed can up to 47m/min , it can save materials up to 30% compare with other brand(4-7g/m), we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service. Now we are making new design -Machine can connect with big Bucket glue 200L, it can save refilling the glue time.
For the desiccant fillier machine , the biggest advantage is it can fill the rectangle and arc frame shape in one machine.
For the manual gas filling machine, we can input the argon gas concentration into touch screen and it can display the whole gas filling processing, customer will know exactly how much argon gas filled inside. When it up to the value you input , argon gas filling machine will automatic stop and give us alarming.
Service Team:
We have our own china domestic team and oversea service team .
Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east.
24 hours online service and local engineer available , guarantee customers got timely service and solution .
