Product Details:
|
| Name: | Molecular Sieve Filling Machine | Max Frame Szie: | 2500*2500mm |
|---|---|---|---|
| Min Frame Size: | 300*250mm | Aluminum Size: | 6A-27A |
| Air Source: | 0.65MPA | Total Power: | 1kw |
| Molecular Sieve Diameter: | 0.5-0.9mm | Machine Size: | 1300*1100*3600mm |
| PLC: | Germany Simens | Filling Height: | Can Adjust |
| High Light: | glass filling machine,desiccant filler |
||
MOLECULAR SIEVE FILLING MACHINE DESICCANT FILLING MACHINE AUTOMATED FILLING MACHINE
Automatic desiccant filling machine
OPTIONAL FUNCTION
| Name | Brand |
| PLC | German SIEMENS |
| Low voltage electrical apparatus | German SIEMENS |
| Sensor | Korea AUTONICS |
| Triplet | TAIWAN AIRTAC |
| Solenoid valve | TAIWAN AIRTAC |
| Gas driller | Taiwan BOA |
| Switch power | Taiwan TEND |
| Guide | Taiwan TBI |
Main technical parameter
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |

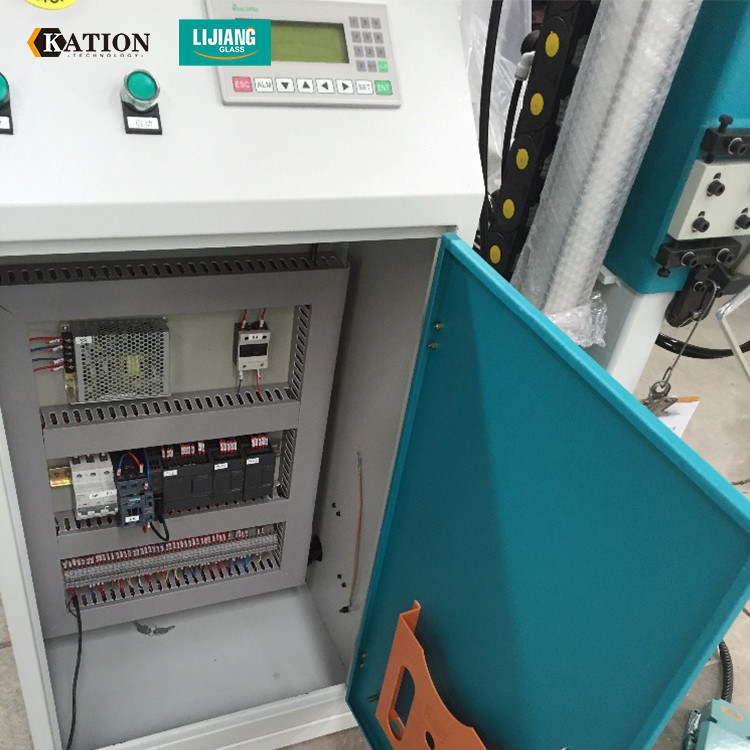

1, Lijiang desiccant fillier electricity box have Paper laber to recognize the electricity route , convenient for service .
2, Lijiang desiccant fillier use all electricity components Famous national brand , very stable and easy to purchase in any countries .
3, Lijiang desiccant fillier machine head have protector cover , it can protect the the worker's hand, Lijiang desiccant fillier have easy glue added device , it is very safe and easy .
,
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
