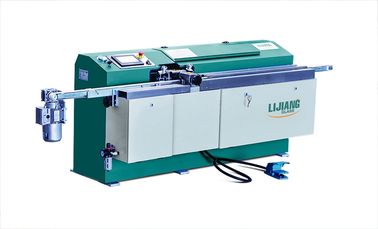

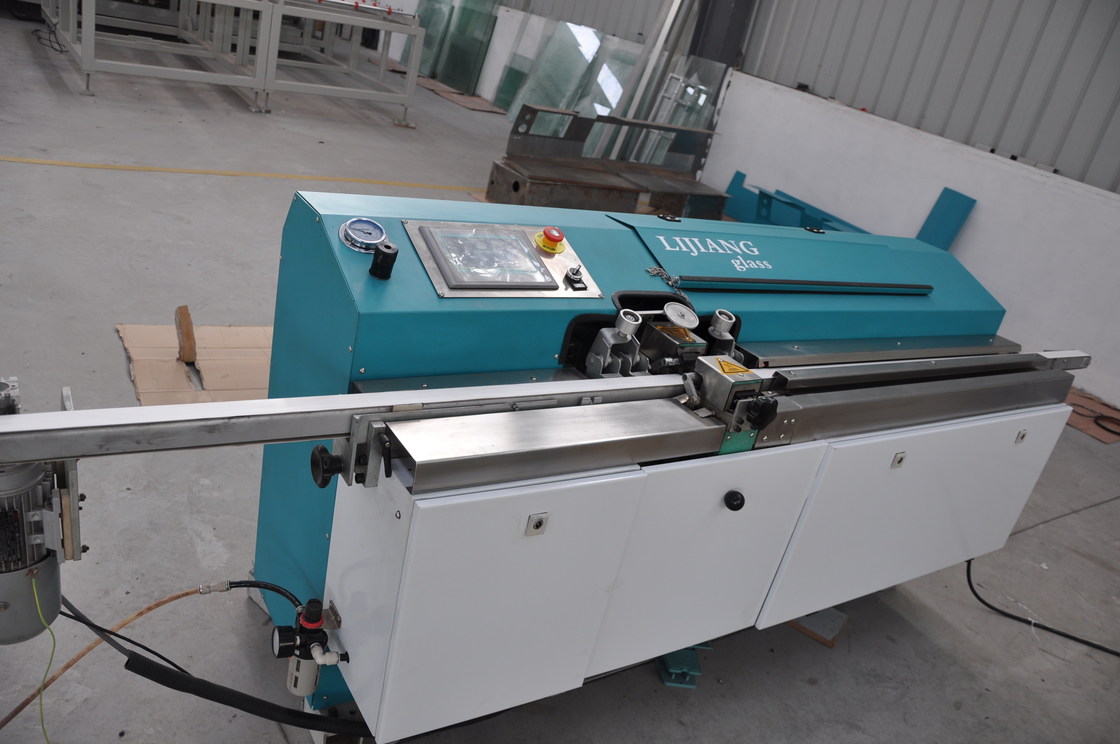

                                            Automatic Butyl Extruder Machine LJTB02 Application

LJTB 02 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers. Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode.

Special structure

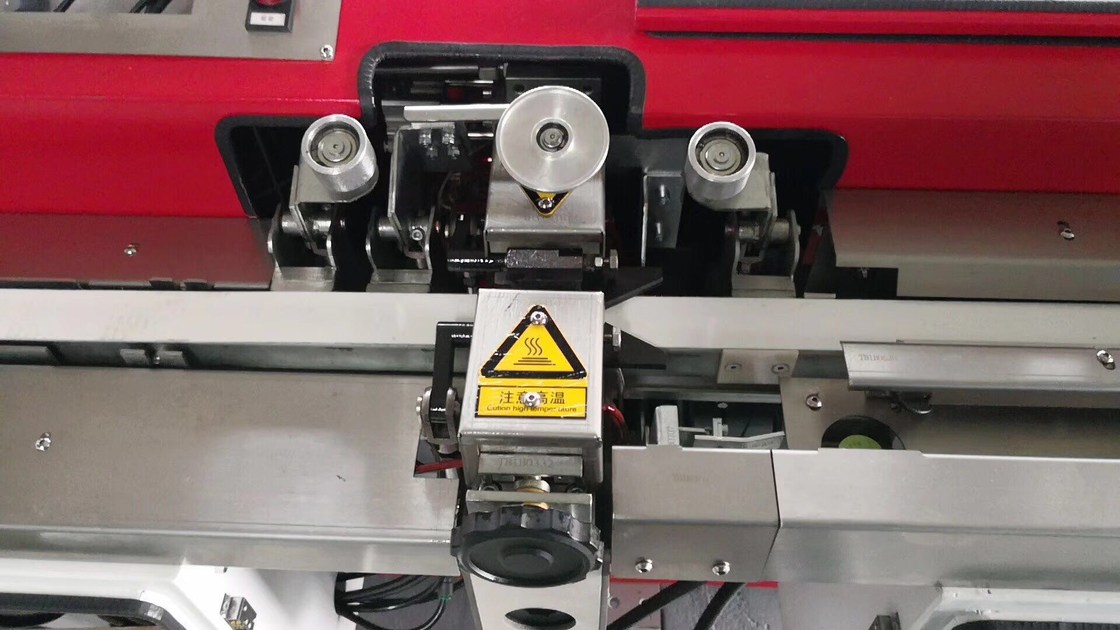

The special part controls both sides of nozzle opening and closing at the same time.Crossbeam adjustable structure controls the spreading height.Using non-adhesive belt, keep clean.Adopt Teflon glue nozzles, keep spreading quickly.Automatically measure the width of frame, the distance of nozzle can be adjustable.Using guiding wheel to help arc frames coating.Adopt the upright structure, easy to change butyl.Adopt Siemens brand, stable performance.

Leading Technology:

       Stable temperature device makes it convenient to adjust the sealing material automatically according to the changed coating                   speed.The coating speed is up to 47m/min, save more than 40% butyl than others, only need 7g/m.

       Quickly heating function, preheat the machines with only 20 minutes per day, improve work efficiency.

                                              Main components
