Product Details:
|
Squeeze Pressure: | 10-18Mpa | Temperature: | 110°-140° |
---|---|---|---|
Spacer Width: | 6A-27A | Speed: | 5-47m/min |
Diameter Of Butyl Cylinder: | 200mm | Air Supply: | 0.4m³/min |
Air Pressure: | ≥0.6Mpa | Total Power: | 380V,5.7KW,50HZ |
Dimension: | 2800*700*900mm | Name: | Butyl Extruder Machine |
Warranty: | 1 YEAR | Condition: | New |
Highlight: | butyl silicone sealant,double glass machine |
Automatic Butyl Extruder Machine
LJTB01

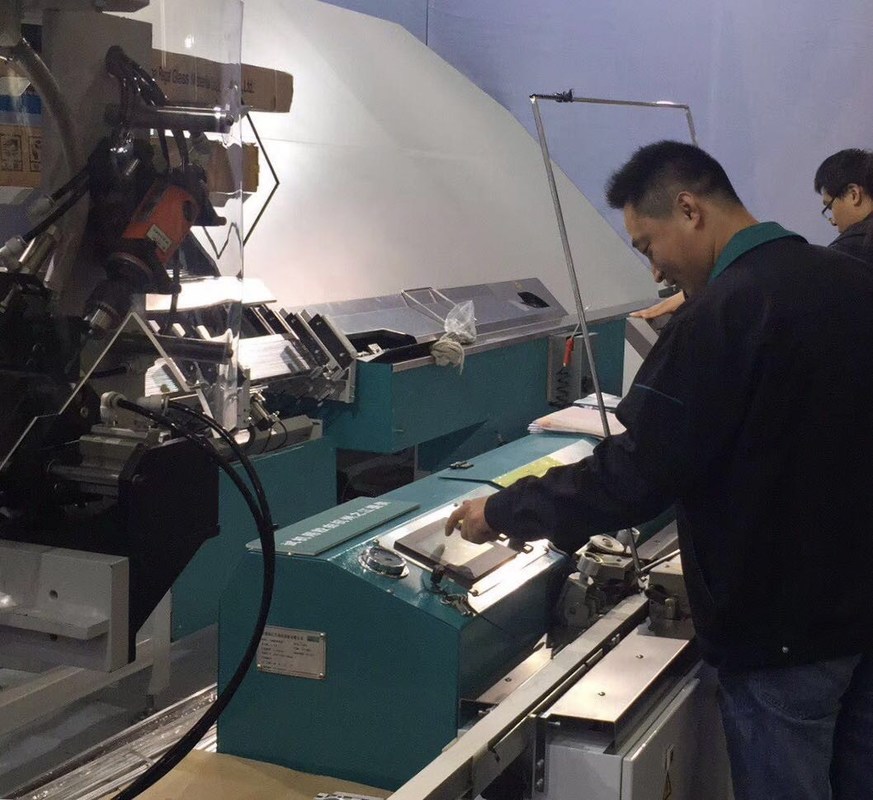

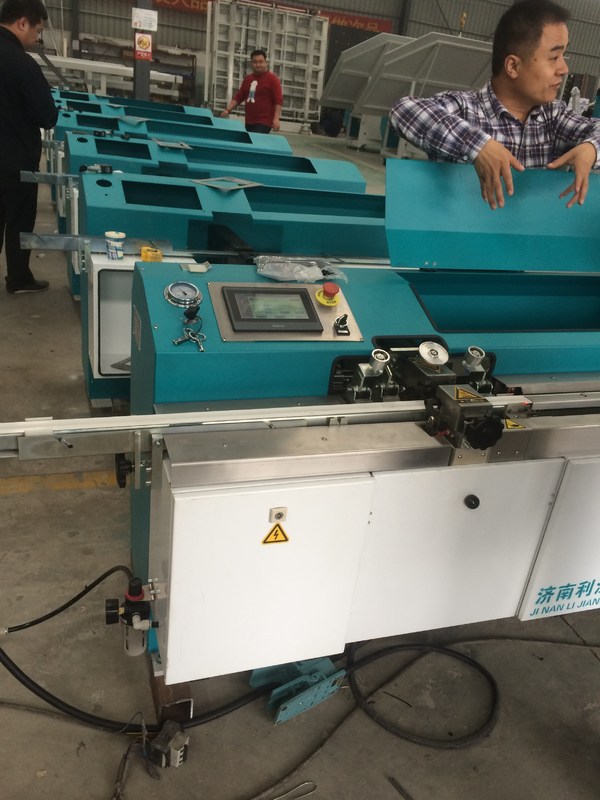

LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses largeelectrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers. Finally, the butyl extruder has reached the worldwide technology with the characteristicofcompletefunctions and stable working mode.
Equipment details
JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated product development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railwayline,it’s very convent for transportation.The company adheres to the “Hi-Q products”. We are striving to create thetop-grade products through setting up Tchnology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology.
Technical Data
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 4-30mm |
Speed | 0-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5KW, 50HZ |
Dimension | 2600×680×1100mm(L×W×H) |
Weight | 650kg |
